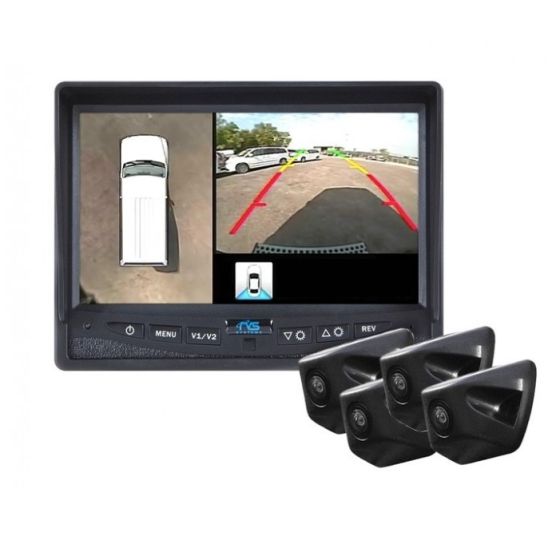

RVS Systems RVS-77550-28 360° with 9" Display, Power Harness with RCA Cable, Both Side Cameras, Vehicle 40ft - 66ft

SKU
RVS-77550-28
Model No
RVS-77550-28
$1,904.41
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • Provides bird's eye view of all blind spots
  • 4 VGA (800 x 480) IP69K cameras
  • Add lane changing side cameras in item options
  • 195° ultra-wide waterproof cameras
  • Connects to any RCA monitor

RVS Systems RVS-77550-28 360° Camera System Features

The RVS-77550-28 from RVS Systems is a 360° bird's eye view camera system which helps just for parking and tight driving situations. Our new 360° helps with lane changing and highway driving as well! A bird's eye view around your vehicle is great, but the view is limited to just a couple of feet. The optional side cameras greatly increase your view, allowing for easy lane changes and completely eliminating side blind spots.

The RVS-6139-NM is a 9" TFT LCD Digital Color Monitor has three video inputs. It comes with a built-in speaker and distance grid lines.

The camera comes with 5 Pin female to RCA female with male power, cable to connect power to RCA adapters and 66' camera cable with a double-sided Female Air-Craft Grade Connection, both side cameras which are the clearest and greatest cameras available on the market today and 2 x 33' camera cable with a double-sided Female Air-Craft Grade Connection.

Features

  • Bird's Eye View: Provides comprehensive visibility of all blind spots, enhancing safety while parking and driving.
  • High Resolution: 4 VGA (800 x 480) IP69K cameras for clear imaging and durability under various weather conditions.
  • Lane Changing Assistance: Optional side cameras available for superior visibility during lane changes.
  • Ultra-Wide Angle: 195° ultra-wide waterproof cameras for a larger field of view.
  • Universal Compatibility: Connects easily to any RCA monitor for versatile use.

RVS Systems RVS-77550-28 Detailed Camera Specifications

FeatureDetails
Camera Type4 VGA (800 x 480) IP69K Cameras
Camera Resolution800 x 480
Field of View195° Ultra-Wide Angle
Monitor Size9" TFT LCD Digital Color Monitor
Distance Grid LinesYes
Power Connection5 Pin female to RCA female with male power
Camera Cable Length66' with double-sided Female Air-Craft Grade Connection
Side CamerasOptional for enhanced visibility
Weather ResistanceIP69K Rated
SKU  RVS-77550-28
Features  Auto Gain Control, Weather Resistant
Manufacturer  RVS Systems
Camera Signal     Analog
Infrared Distance    Non Infrared
Durability    Weather Resistant
Minimum Scene Illumination  0 Lux (IR On)
Operating Temperature    -30°C ~ +70°C
Dimensions (W x H)  21.6mm x 21.6mm x 25.6mm
Power Consumption  < 0.6W
S/N Ratio  More than 48dB
Signal System    NTSC / PAL
Weatherproof    IP69
Angle of View    140° (V), 185° (H), 200° (D)
Auto Gain Control    Yes
