RVS Systems RVS-77550-27 360° with 9" Display, Power Harness with RCA Cable, Both Side Cameras, Vehicle Under 40ft
- Provides bird's eye view of all blind spots
- 4 VGA (800 x 480) IP69K cameras
- Add lane changing side cameras in item options
- 195° ultra-wide waterproof cameras
- Connects to any RCA monitor
RVS Systems RVS-77550-27 360° Camera Features
The RVS-77550-27 from RVS Systems is a 360° bird's eye view camera system which helps just for parking and tight driving situations. Our new 360° helps with lane changing and highway driving as well! A bird's eye view around your vehicle is great, but the view is limited to just a couple of feet. The optional side cameras greatly increase your view, allowing for easy lane changes and completely eliminating side blind spots.

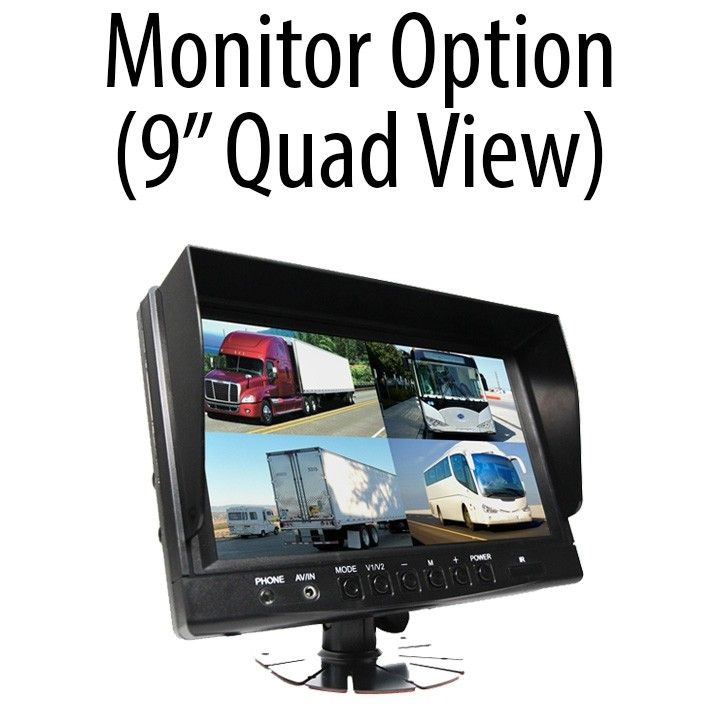

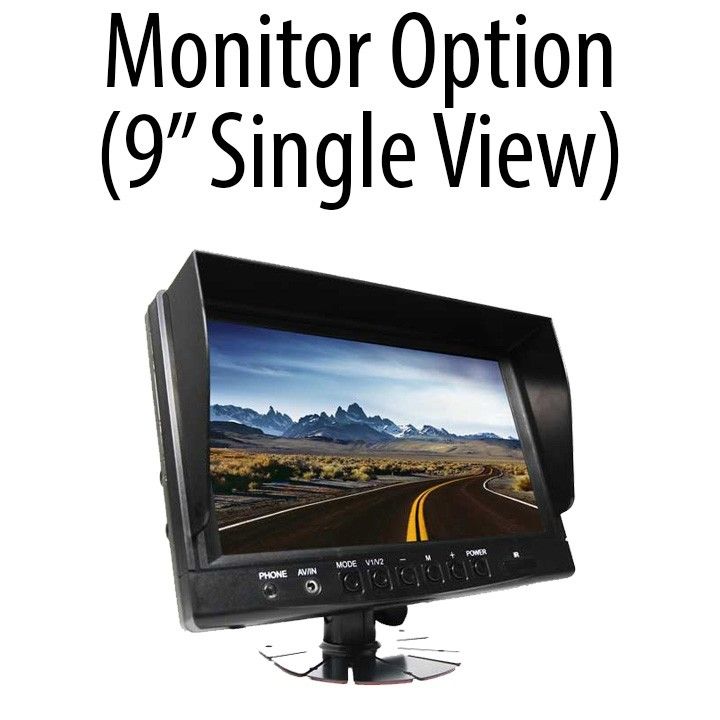

The RVS-6139-NM is a 9" TFT LCD Digital Color Monitor has three video inputs. It comes with a built-in speaker and distance grid lines.
The camera comes with 5 Pin female to RCA female with male power, cable to connect power to RCA adapters, both side cameras which are the clearest and greatest cameras available on the market today and 2 x 33' camera cable with a double-sided Female Air-Craft Grade Connection.
Features
- Bird's Eye View: Provides a comprehensive view of blind spots, enhancing safety during parking and driving.
- High-Quality Cameras: 4 VGA (800 x 480) IP69K cameras ensure superior image clarity even in harsh conditions.

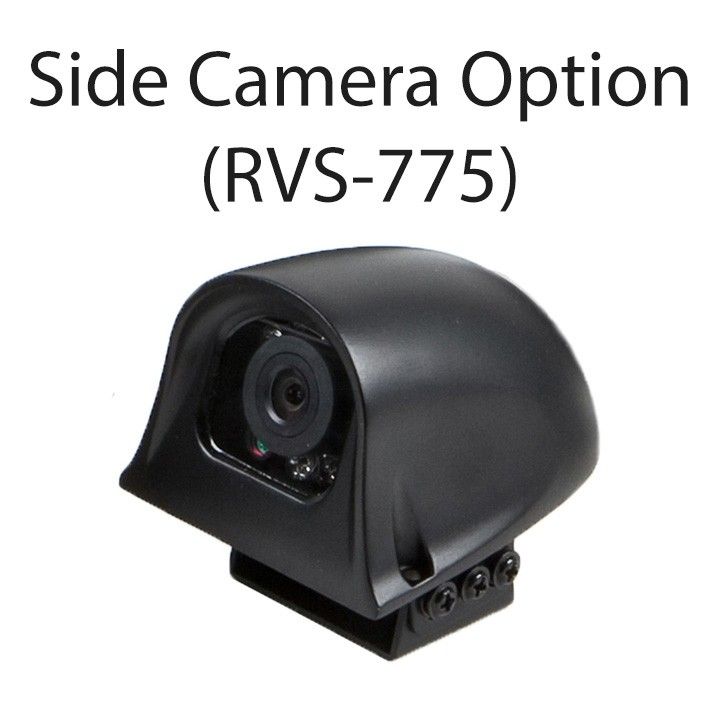

- Optional Side Cameras: Add lane changing side cameras to improve visibility and eliminate side blind spots.
- Ultra-Wide Angle: 195° ultra-wide waterproof cameras capture more area around the vehicle.
- Easy Connectivity: Connects seamlessly to any RCA monitor for versatile use.
RVS Systems RVS-77550-27 Detailed Specifications
| Feature | Details |
|---|---|
| Camera Type | 4 VGA (800 x 480) IP69K Cameras |
| Monitor Size | 9" TFT LCD Digital Color Monitor |
| Camera Angle | 195° Ultra-Wide |
| Connectivity | 5 Pin female to RCA female adapters |
| Distance Grid Lines | Yes, built into the monitor |
| Camera Cable Length | 2 x 33' with double-sided Female Air-Craft Grade Connection |
SKU  | RVS-77550-27 |
|---|---|
| Features | Auto Gain Control, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Infrared Distance | Non Infrared |
| Durability | Weather Resistant |
| Minimum Scene Illumination | 0 Lux (IR On) |
| Operating Temperature | -30°C ~ +70°C |
| Dimensions (W x H) | 21.6mm x 21.6mm x 25.6mm |
| Power Consumption | < 0.6W |
| S/N Ratio | More than 48dB |
| Signal System | NTSC / PAL |
| Weatherproof | IP69 |
| Angle of View | 140° (V), 185° (H), 200° (D) |
| Auto Gain Control | Yes |
RVS-77550-27-Specsheet
