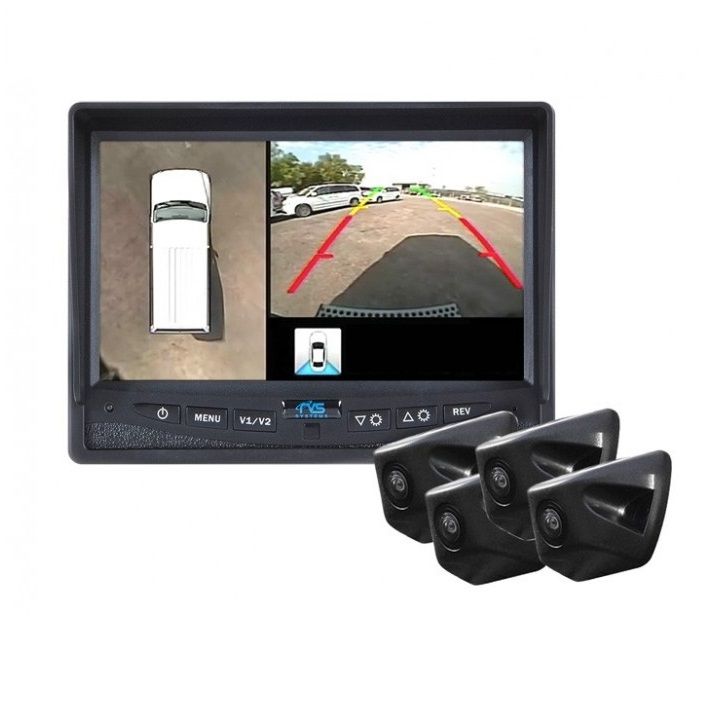

RVS Systems RVS-77550-15 360° with 7" Display, Power Harness with RCA Cable, Both Surface Mounted Cameras, Vehicle Under 40ft
- Provides bird's eye view of all blind spots
- 4 VGA (800 x 480) IP69K cameras
- Add lane changing side cameras in item options
- 195° ultra-wide waterproof cameras
- Connects to any RCA monitor
RVS Systems RVS-77550-15 360° Camera Features
The RVS-77550-15 from RVS Systems is a 360° bird's eye view camera system which helps just for parking and tight driving situations. Our new 360° helps with lane changing and highway driving as well! A bird's eye view around your vehicle is great, but the view is limited to just a couple of feet. The optional side cameras greatly increase your view, allowing for easy lane changes and completely eliminating side blind spots.

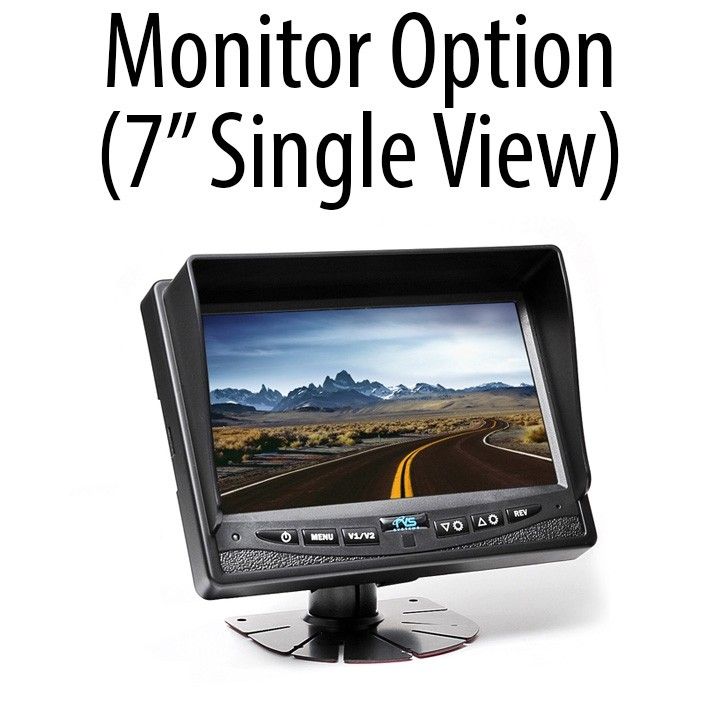

The RVS-6137-NM has a crystal clear 7" LED Digital Panel display and is equipped with adjustable distance grid lines, mirror image capability, a 3 port power harness with automatic system switch, and a built-in speaker. Back-lit buttons illuminate in the dark for easy use, and it can also be navigated with a remote.
The camera comes with 5 Pin female to RCA female with male power, cable to connect power to RCA adapters, 2 x 33' camera cable with a double-sided Female Air-Craft Grade Connection and both surfaces mounted cameras.
Features
- Bird's Eye View: Provides a complete view around your vehicle, reducing blind spots for safer maneuvering.
- High Quality Cameras: 4 VGA (800 x 480) IP69K cameras ensure clear and reliable performance even in harsh conditions.
- Optional Side Cameras: Add lane changing side cameras for enhanced visibility and safer lane transitions.
- Ultra-Wide Angle: 195° ultra-wide waterproof cameras capture a broader perspective, making parking and driving easier.
- RCA Compatibility: Connects easily to any RCA monitor, enhancing versatility with existing systems.
RVS Systems RVS-77550-15 Detailed Specifications
| Display Size | 7" LED Digital Panel |
| Camera Resolution | 800 x 480 (VGA) |
| Camera Type | 4 IP69K waterproof cameras |
| View Angle | 195° ultra-wide |
| Connection Type | 5 Pin female to RCA female with male power |
| Camera Cable Length | 2 x 33' |
| Power Harness | 3 port harness with automatic system switch |
| Remote Control | Included for ease of use |
SKU  | RVS-77550-15 |
|---|---|
| Features | Auto Gain Control, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Infrared Distance | Non Infrared |
| Durability | Weather Resistant |
| Minimum Scene Illumination | 0 Lux (IR On) |
| Operating Temperature | -30°C ~ +70°C |
| Dimensions (W x H) | 21.6mm x 21.6mm x 25.6mm |
| Power Consumption | < 0.6W |
| S/N Ratio | More than 48dB |
| Signal System | NTSC / PAL |
| Weatherproof | IP69 |
| Angle of View | 140° (V), 185° (H), 200° (D) |
| Auto Gain Control | Yes |
RVS-77550-15-Specsheet
