RVS Systems RVS-77550-07 360° with Both Surface Mounted Cameras, Vehicle Under 40ft

SKU
RVS-77550-07
Model No
RVS-77550-07
$1,485.70
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • Provides bird's eye view of all blind spots
  • 4 VGA (800 x 480) IP69K cameras
  • Add lane changing side cameras in item options
  • 195° ultra-wide waterproof cameras
  • Connects to any RCA monitor

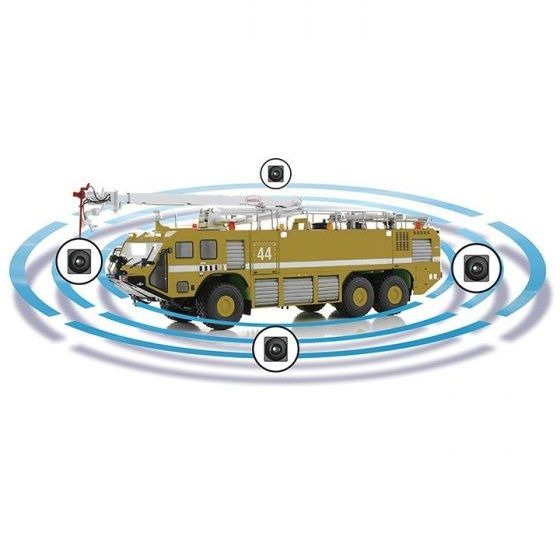

RVS Systems RVS-77550-07 360° Camera Features

The RVS-77550-07 from RVS Systems is a 360° bird's eye view camera system which helps just for parking and tight driving situations. Our new 360° helps with lane changing and highway driving as well! A bird's eye view around your vehicle is great, but the view is limited to just a couple of feet. The optional side cameras greatly increase your view, allowing for easy lane changes and completely eliminating side blind spots.

The camera comes with 2 x 33' camera cable with a double-sided Female Air-Craft Grade Connection and both surfaces mounted cameras.

Features

  • Bird's Eye View: Provides a comprehensive view of all blind spots for safer maneuvering in tight spaces.
  • High Resolution: Equipped with 4 VGA (800 x 480) IP69K cameras for clear and detailed imaging.
  • Expandable System: Option to add lane changing side cameras to enhance visibility further.
  • Wide Angle: Features 195° ultra-wide waterproof cameras to capture more surroundings.
  • Universal Compatibility: Easily connects to any RCA monitor for versatile installation.

Detailed Camera Specifications for RVS-77550-07

Camera Type360° Bird's Eye View
Number of Cameras4 VGA Cameras
Camera Resolution800 x 480
Waterproof RatingIP69K
Field of View195° Ultra-wide
Power Supply12-24 Volts
Camera Cables2 x 33' with double-sided Female Air-Craft Grade Connection
CompatibilityConnects to any RCA monitor
SKU  RVS-77550-07
Features  Auto Gain Control, Weather Resistant
Manufacturer  RVS Systems
Camera Signal     Analog
Infrared Distance    Non Infrared
Durability    Weather Resistant
Minimum Scene Illumination  0 Lux (IR On)
Operating Temperature    -30°C ~ +70°C
Dimensions (W x H)  21.6mm x 21.6mm x 25.6mm
Power Consumption  < 0.6W
S/N Ratio  More than 48dB
Signal System    NTSC / PAL
Weatherproof    IP69
Angle of View    140° (V), 185° (H), 200° (D)
Auto Gain Control    Yes
