RVS Systems RVS-772718 480 TVL Analog Backup Camera System With Flush Mount Camera, 2.8mm Lens

SKU
RVS-772718
Model No
RVS-509620
$299.99
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 4.3" TFT-LCD Mirror Monitor
  • Distance Grid Lines for Backing Up Reference

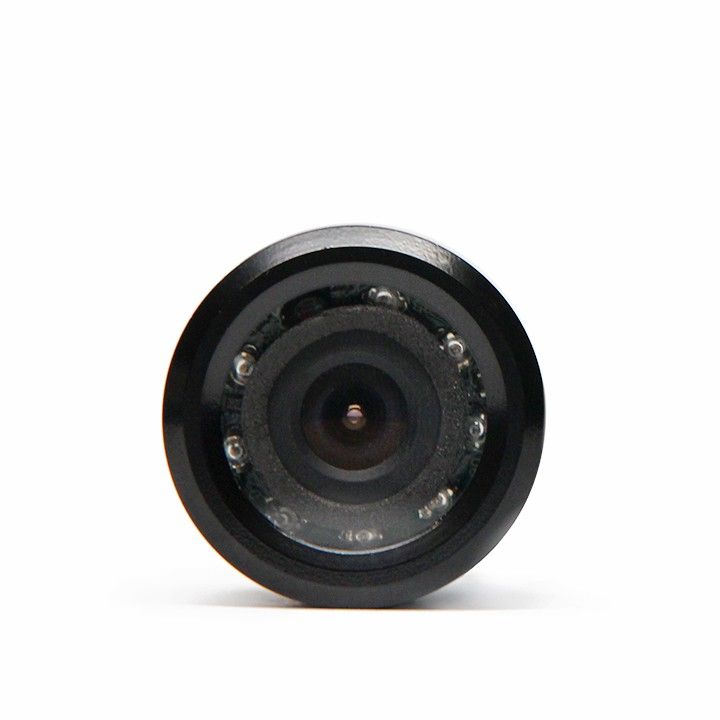

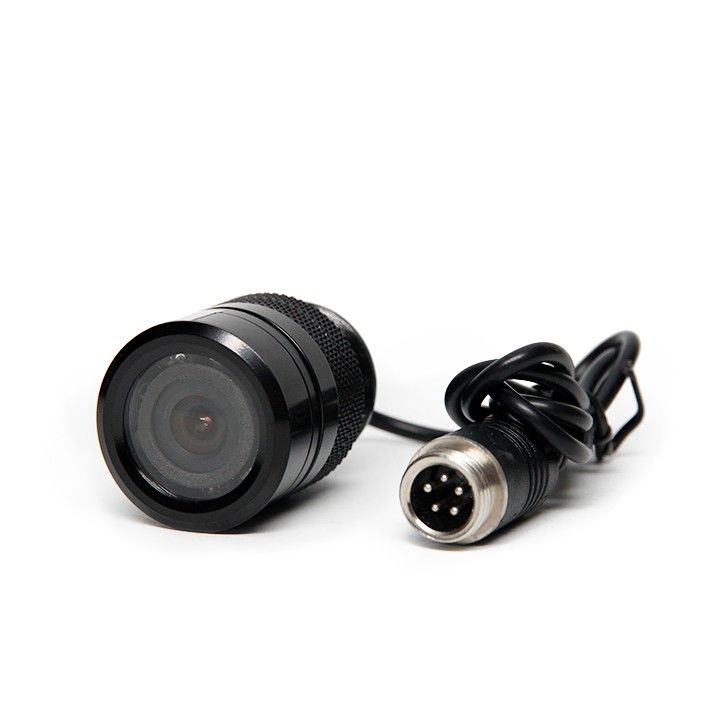

  • Flush Mount Camera Ideal for Smaller Vehicles
  • 120° Wide Viewing Angle and 9 Infra-Red Night Vision Lights
  • Completely Waterproof Camera - IP68

The RVS Systems RVS-772718 480 TVL Analog Backup Camera System is designed for optimal safety and convenience while reversing. Featuring a 4.3" TFT-LCD mirror monitor that seamlessly replaces your existing rearview mirror, this system provides clear visuals with reverse distance grid lines. The flush mount camera, ideal for smaller vehicles, delivers a wide angle view and excellent night vision capabilities, all while ensuring durability in various weather conditions.

RVS Systems RVS-772718 Camera Features

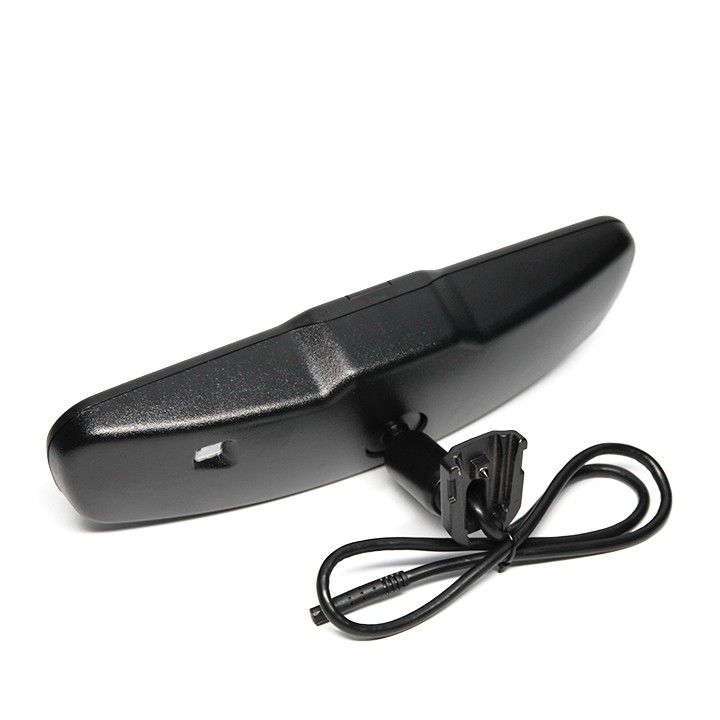

  • Monitor: 4.3" TFT-LCD size provides large, clear visuals, enhancing rear visibility during maneuvers.
  • Distance Grid Lines: Offers precise backing up reference, improving safety for parking and reversing.
  • Flush Mount Camera: Ideal design for smaller vehicles preserves aesthetics while providing functionality.
  • Wide Viewing Angle: 120° angle provides a broader field of vision, minimizing blind spots.
  • Infra-Red Night Vision: Equipped with 9 powerful IR lights, ensuring excellent visibility even in low-light conditions.
  • Weatherproof Rating: IP68 rating guarantees durability against harsh weather elements.
  • Shock Resistance: With a 15G vibration rating, it remains reliable even in rugged conditions.

RVS Systems RVS-772718 Detailed Specifications

Monitor Size4.3" TFT-LCD
Camera TypeFlush Mount
Viewing Angle120°
Night Vision9 Infra-Red Lights
Weatherproof RatingIP68
Vibration Rating15G

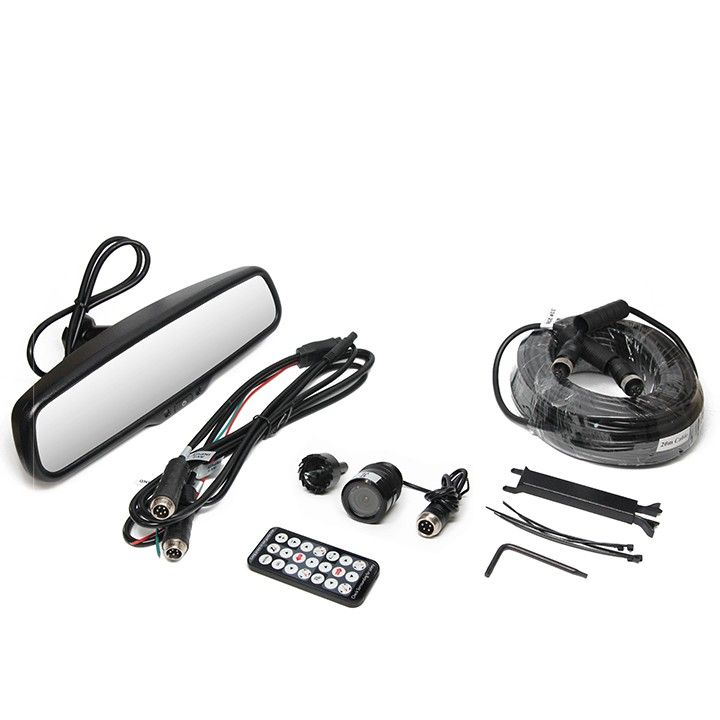

InstallationAll necessary wires, connectors, and mounts included
FeaturesDistance Grid Lines, Mirror Image Capability
SKU  RVS-772718
Features  Auto Gain Control, Back Light Compensation, Day/Night, Weather Resistant
Manufacturer  RVS Systems
Camera Signal     Analog
Resolution    480 TVL
Sensor Option    1/4" Image Sensor
Lens Type    Fixed
Lens Size    2.8mm
Infrared Distance    0~60 Feet
Durability    Weather Resistant
Mount Type  In-Ceiling
Minimum Scene Illumination  0.5 Lux
Operating Temperature    -30 ~ 75 °C

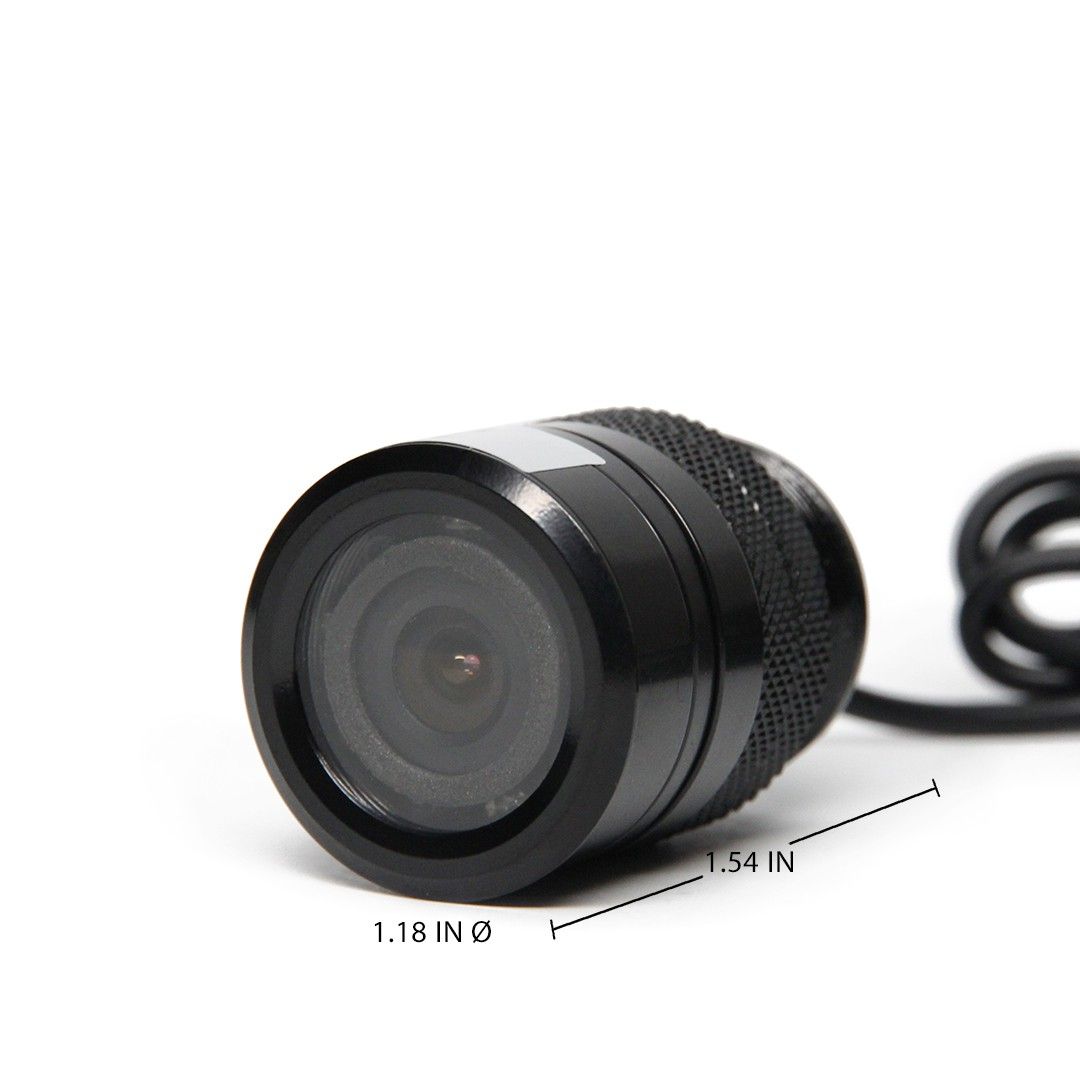

Dimensions (W x H)  Camera: 1.15" (H) x 1.18" (L) x 1.54" (D), Mirror Monitor: 3.15" (H) x 10.55" (L) x 1" (D)
Power Consumption  1.5 Watts
Signal System    PAL / NTSC
Weatherproof    IP68
Synchronization  Internal Synchronization
Angle of View    120°
IR LEDs  9
Back Light Compensation    Yes
Day/Night    Yes
Auto Gain Control    Yes
