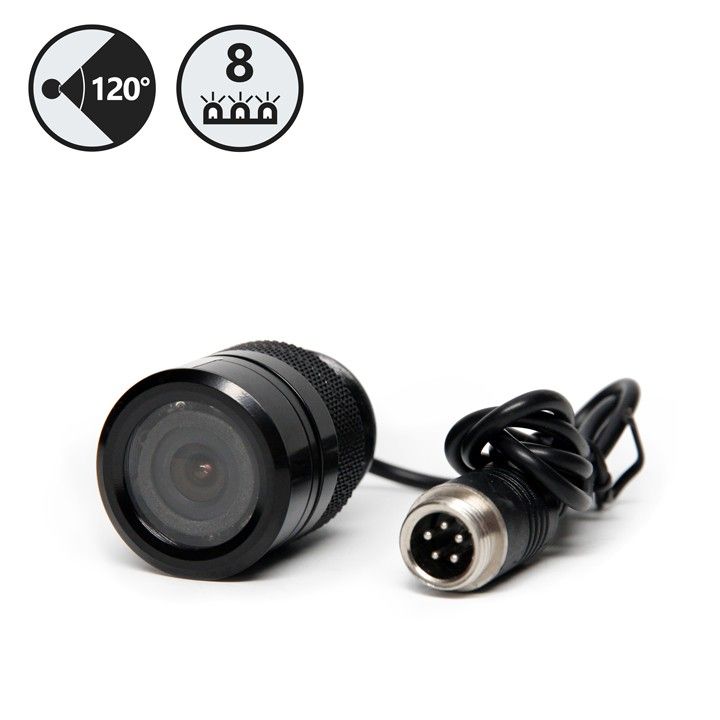

RVS Systems RVS-772-NC 120° 480 TVL Flushmount Backup Camera, No Cable
SKU
RVS-772-NC
Model No
RVS-772-NC
$127.19
Product Highlights
- Flushmount - mount with bracket or flush against vehicle
- 120° ultra-wide angle
- 8 infra-red lights - perfect vision even in the darkest night
- Compact design
- Completely waterproof - IP68 rating
The RVS-772-NC from RVS Systems is a Flushmount Backup Camera which is one inch in diameter and mounts flush in the back of a vehicle. Simply screw an inch wide hole at the rear of your vehicle with the included hole saw and the camera will mount perfectly in that space for a clean install. Comes complete with 8 infra-red night vision lights and a 120° viewing angle.
Features
- Flushmount - mount with bracket or flush against vehicle
- 120° ultra-wide angle
- 8 infra-red lights - perfect vision even in the darkest night
- Compact design
- Completely waterproof - IP68 rating
SKU  |
RVS-772-NC |
|---|---|
| Features |
Auto Gain Control, Back Light Compensation, Weather Resistant |
| Manufacturer |
RVS Systems |
Camera Signal  |
Analog |
| Resolution |
480 TVL |
| Lens Type |
Fixed |
| Lens Size |
2.8mm |
| Infrared Distance |
0~60 Feet |
| Durability |
Weather Resistant |
| Image Device |
1/4 Inch |
| Minimum Scene Illumination |
0.5 Lux |
| Operating Temperature |
-40 ~ 75 °C |

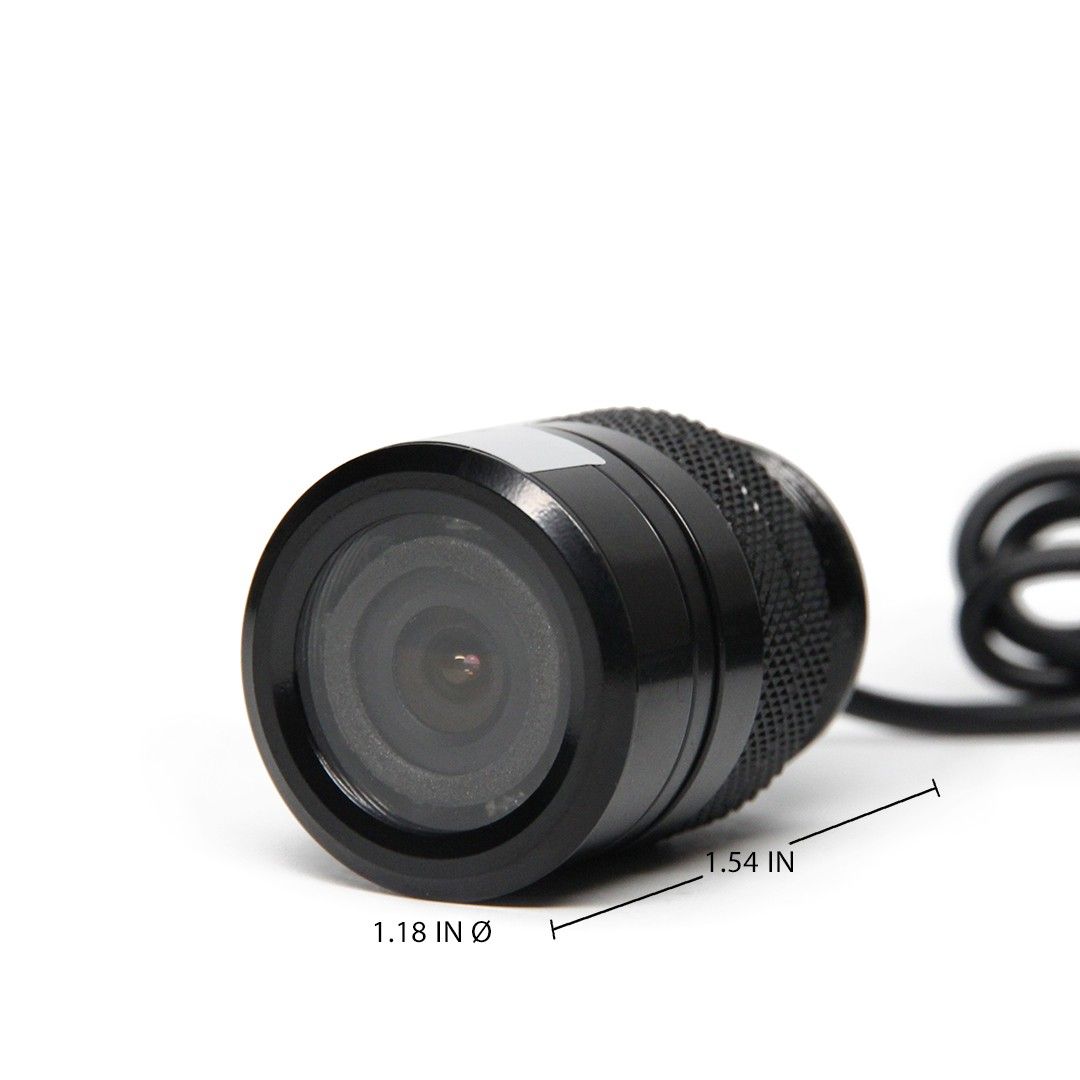

| Dimensions (W x H) |
1.15" (H) x 1.18" (L) x 1.54" (D) |
| S/N Ratio |
More than 48dB |
| Signal System |
PAL / NTSC |
| Video Output |
CVBS |
| Weatherproof |
IP68 |
| Angle of View |
120° |
| Backlight Compensation |
Auto |
| Auto Gain Control |
Auto |
| IR LEDs |
8 |
| Back Light Compensation |
Yes |
| Auto Gain Control |
Yes |
