RVS Systems RVS-772-03 120° 480 TVL Flushmount Backup Camera, 16' Cable
SKU
RVS-772-03
Model No
RVS-772-03
$144.11
Product Highlights
- Flushmount - mount with bracket or flush against vehicle
- 120° ultra-wide angle
- 8 infra-red lights - perfect vision even in the darkest night
- Compact design
- Completely waterproof - IP68 rating
Speak to an expert

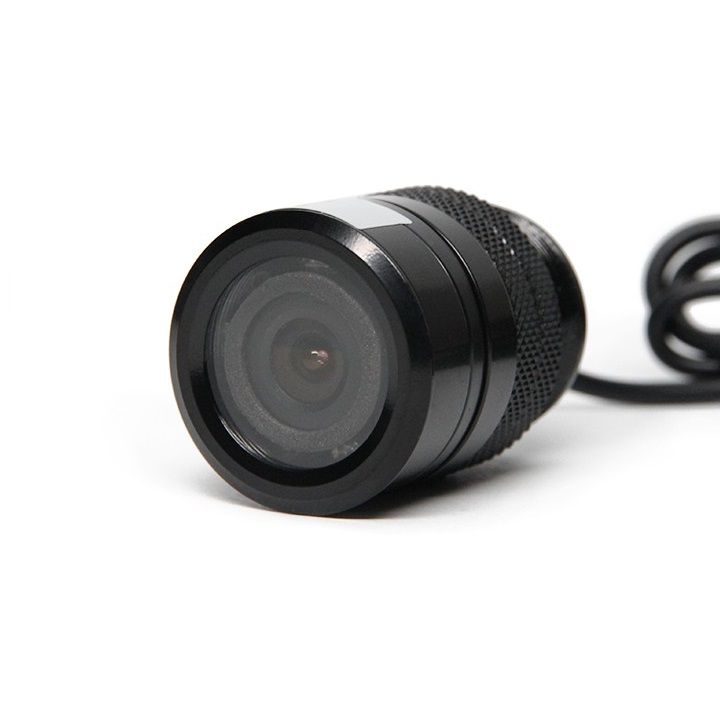

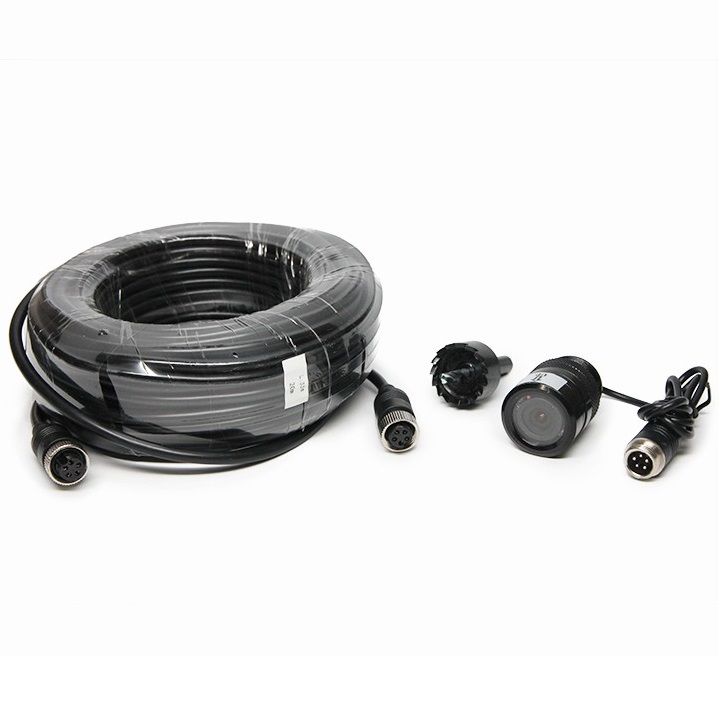

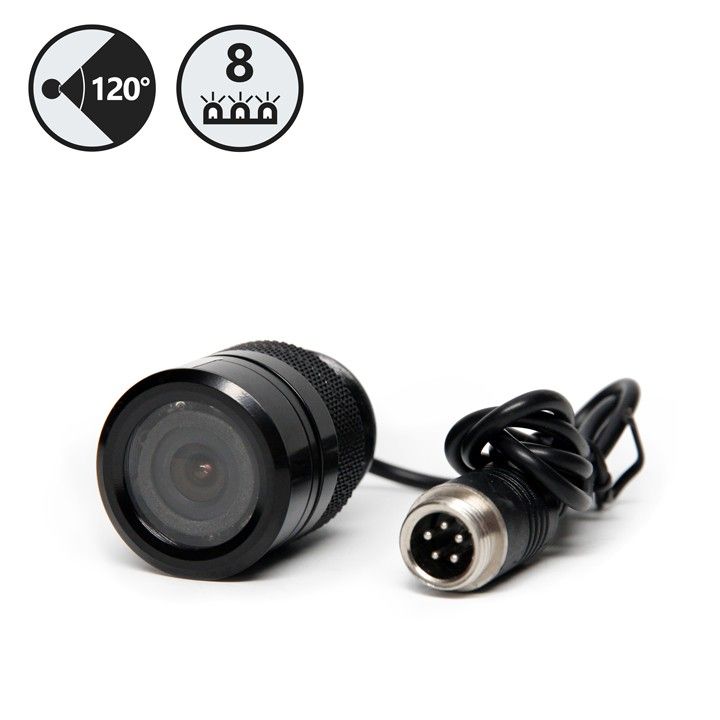

The RVS-772-03 from RVS Systems is a Flushmount Backup Camera which is one inch in diameter and mounts flush in the back of a vehicle. Simply screw an inch wide hole at the rear of your vehicle with the included hole saw and the camera will mount perfectly in that space for a clean install. Comes complete with 8 infra-red night vision lights and a 120° viewing angle. The camera comes with 16' Camera Cable with a double-sided Female Air-Craft Grade Connection.
RVS Systems RVS-772-03 Camera Features
- Flushmount: mount with bracket or flush against vehicle for a seamless look.
- 120° ultra-wide angle: allows for a greater field of view, reducing blind spots.
- 8 infra-red lights: ensures clear visibility even in complete darkness for safer driving.
- Compact design: fits discreetly in your vehicle without taking up space.
- Completely waterproof: IP68 rating protects against dust and water damage for reliable performance.
Detailed Specifications for RVS Systems RVS-772-03
| Camera Type | Flushmount Backup Camera |
| Diameter | 1 inch |
| Viewing Angle | 120° |
| Infra-red Lights | 8 |
| Camera Cable Length | 16 feet |
| Connection Type | Double-sided Female Air-Craft Grade Connection |
| Waterproof Rating | IP68 |
SKU  | RVS-772-03 |
|---|---|
| Features | Auto Gain Control, Back Light Compensation, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 480 TVL |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Infrared Distance | 0~60 Feet |
| Durability | Weather Resistant |
| Image Device | 1/4 Inch |
| Minimum Scene Illumination | 0.5 Lux |
| Operating Temperature | -40 ~ 75 °C |
| Dimensions (W x H) | 1.15" (H) x 1.18" (L) x 1.54" (D) |
| S/N Ratio | More than 48dB |
| Signal System | PAL / NTSC |
| Video Output | CVBS |
| Weatherproof | IP68 |
| Angle of View | 120° |
| Backlight Compensation | Auto |
| Auto Gain Control | Auto |
| IR LEDs | 8 |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
