RVS Systems RVS-772-01 120° 480 TVL Flushmount Backup Camera, 66' Cable
SKU
RVS-772-01
Model No
RVS-772-01
$144.11
Product Highlights
- Flushmount - mount with bracket or flush against vehicle
- 120° ultra-wide angle
- 8 infra-red lights - perfect vision even in the darkest night
- Compact design
- Completely waterproof - IP68 rating
Speak to an expert

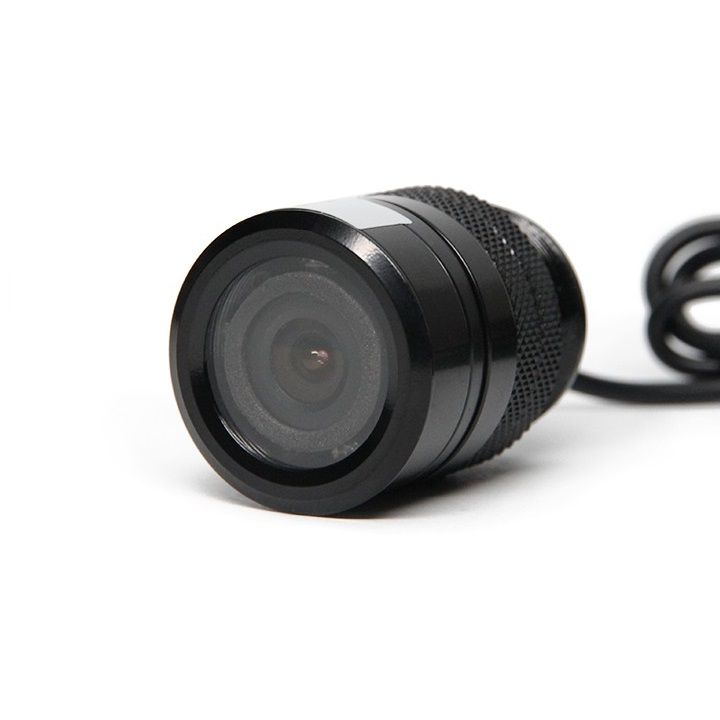

The RVS-772-01 from RVS Systems is a Flushmount Backup Camera designed for seamless installation and enhanced safety while reversing. With a sleek one-inch diameter, this camera mounts flush to the back of your vehicle, providing a clean aesthetic and a broad 120° viewing angle. Additionally, it features 8 infra-red night vision lights and a durable waterproof design, ensuring optimal performance day or night.
RVS Systems RVS-772-01 Camera Features
- Flushmount: Designed to mount flush against the vehicle for a clean look and easy installation.
- 120° ultra-wide angle: Provides a broad field of view, enhancing safety and awareness while reversing.
- 8 infra-red lights: Enables clear visibility in low-light conditions, ensuring safe maneuvers at night.
- Compact design: A small footprint that avoids bulkiness while still delivering high-quality performance.
- Completely waterproof: With an IP68 rating, the camera is protected against dust and water exposure.
RVS Systems RVS-772-01 Detailed Camera Specifications
| Camera Type | Flushmount Backup Camera |
| Diameter | 1 inch |
| Viewing Angle | 120° |
| Night Vision | 8 infra-red lights |

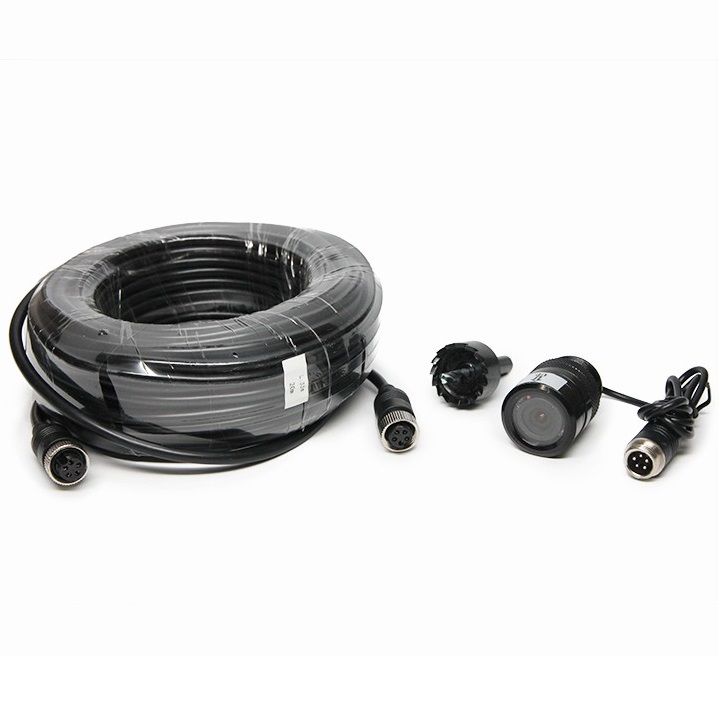

| Camera Cable Length | 66 feet |
| Connection Type | Double-sided Female Air-Craft Grade Connection |
| Waterproof Rating | IP68 |
SKU  | RVS-772-01 |
|---|---|
| Features | Auto Gain Control, Back Light Compensation, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 480 TVL |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Infrared Distance | 0~60 Feet |
| Durability | Weather Resistant |
| Image Device | 1/4 Inch |
| Minimum Scene Illumination | 0.5 Lux |
| Operating Temperature | -40 ~ 75 °C |
| Dimensions (W x H) | 1.15" (H) x 1.18" (L) x 1.54" (D) |
| S/N Ratio | More than 48dB |
| Signal System | PAL / NTSC |
| Video Output | CVBS |
| Weatherproof | IP68 |
| Angle of View | 120° |
| Backlight Compensation | Auto |
| Auto Gain Control | Auto |
| IR LEDs | 8 |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
