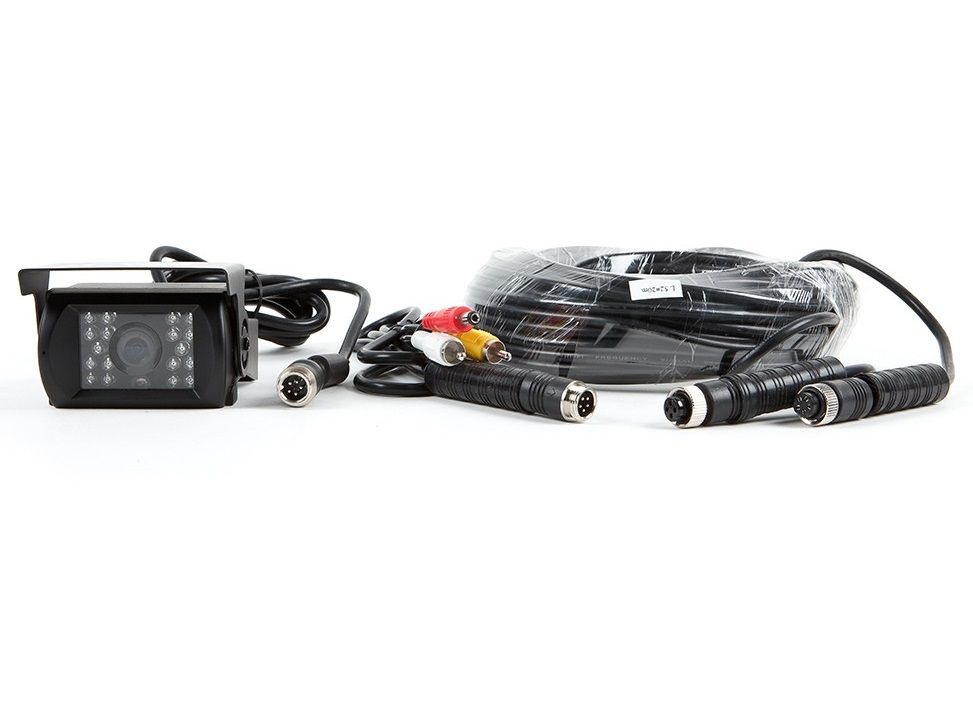

RVS Systems RVS-771-05 130° 620 TVL Backup Camera, 16' Cable, RCA Adapter

SKU
RVS-771-05
Model No
RVS-771-05
$161.39
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 1/3" Sharp® Color CCD Camera
  • 130° Ultra Wide Viewing Angle
  • 18 Infra-Red Lights - 50ft of Night Vision
  • Completely Waterproof - IP69K Rating
  • Included RCA adapter to connect to external display

The RVS-771-05 from RVS Systems is a top-of-the-line backup camera designed for maximum clarity and reliability. With a 130° viewing angle and advanced features like infrared night vision and a durable waterproof casing, this camera excels in providing a safe driving experience. Whether you’re reversing in low-light conditions or navigating adverse weather, the RVS-771-05 ensures you have the clearest rear visibility available, making it an essential addition to any vehicle.

RVS Systems RVS-771-05 Camera Features

  • 1/3" Sharp® Color CCD Camera: Provides exceptional image quality with vibrant colors for improved visibility.
  • 130° Ultra Wide Viewing Angle: Covers a broader area behind your vehicle, reducing blind spots and increasing safety.
  • 18 Infra-Red Lights - 50ft of Night Vision: Allows clear visibility in complete darkness, essential for night-time driving.
  • Completely Waterproof - IP69K Rating: Protects against dust and water ingress, ensuring functionality in all weather conditions.
  • Included RCA Adapter: Facilitates easy connection to external displays, enhancing compatibility and usability.

RVS Systems RVS-771-05 Detailed Specifications

Camera Type1/3" Sharp® Color CCD
Viewing Angle130° Ultra Wide
Night Vision18 Infra-Red Lights, up to 50ft
Water ResistanceIP69K rated
Included Cable Length16 feet
MicrophoneBuilt-in for audio feedback
Vibration Rating20G
Impact Rating100G
RCA AdapterIncluded for easy external display connection
SKU  RVS-771-05
Features  Auto Gain Control, Weather Resistant
Manufacturer  RVS Systems
Camera Signal     Analog
Resolution    620 TVL
Sensor Option    1/3" CCD
Lens Type    Fixed
Lens Size    2.5mm
Infrared Distance    0~60 Feet
Durability    Weather Resistant
Gamma Correction  r=0.45 to 1.0
Image Device    1/3" Sharp® Color CCD
IR Distance  15.24m/50ft
Minimum Scene Illumination  0 Lux (IR On)
Operating Humidity    RH 95% Max
Operating Temperature    -40°C - 70°C
Dimensions (W x H)  3.25" (H) x 3" (L) x 1" (D)
S/N Ratio  More than 48dB
Signal System    PAL / NTSC
Video Output    1Vp.p 75 Ω
Weatherproof    IP69
Synchronization  Internal Synchronization
Angle of View    130°
IR LEDs  18
Auto Gain Control    Yes
