RVS Systems RVS-771-03 130° 620 TVL Backup Camera, 33' Cable, RCA Adapter
SKU
RVS-771-03
Model No
RVS-771-03
$133.70
Product Highlights
- 1/3" Sharp® Color CCD Camera
- 130° Ultra Wide Viewing Angle
- 18 Infra-Red Lights - 50ft of Night Vision
- Completely Waterproof - IP69K Rating
- Included RCA adapter to connect to external display
Speak to an expert

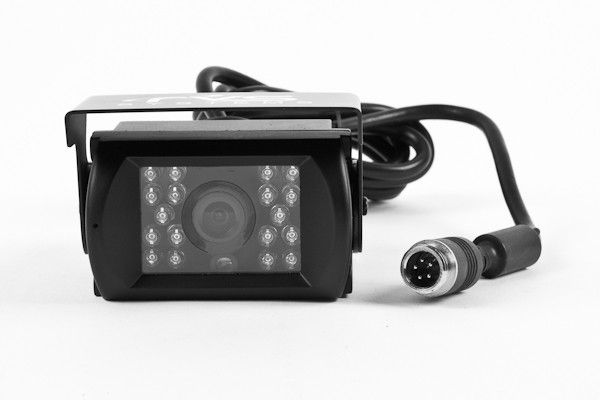

The RVS-771-03 from RVS Systems is a top-tier backup camera equipped with a 130° viewing angle and 620 TVL resolution, ensuring crystal-clear visibility for enhanced safety while reversing. Its durable design, featuring an IP69K waterproof rating, makes it perfect for all weather conditions. The built-in microphone captures audio from behind your vehicle, while its advanced infrared technology allows for night vision up to 50 feet. This camera includes a generous 33-foot cable and is designed for easy connectivity with an RCA adapter, ensuring a reliable and straightforward installation.
RVS Systems RVS-771-03 Camera Features
- 1/3" Sharp® Color CCD Camera: Delivers high-quality video with vibrant colors and clarity for safe reversing.
- 130° Ultra Wide Viewing Angle: Provides a broad field of vision, minimizing blind spots to improve safety.
- 18 Infra-Red Lights - 50ft of Night Vision: Enables clear visibility in complete darkness, enhancing nighttime safety.
- Completely Waterproof - IP69K Rating: Guarantees durability in all weather conditions, ensuring long-lasting performance.
- Included RCA adapter: Simplifies connection to an external display for quick and easy setup.
Detailed Specifications for RVS Systems RVS-771-03
| Camera Type | 1/3" Sharp® Color CCD |
| Resolution | 620 TVL |
| Viewing Angle | 130° |
| Night Vision | Up to 50ft with 18 Infra-Red Lights |
| Waterproof Rating | IP69K |
| Built-in Microphone | Yes |
| Shock Resistance | 20G Vibration, 100G Impact |
| Cable Length | 33 feet |
| Connector Type | RCA Adapter |
SKU  | RVS-771-03 |
|---|---|
| Features | Auto Gain Control, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 620 TVL |
| Sensor Option | 1/3" CCD |
| Lens Type | Fixed |
| Lens Size | 2.5mm |
| Infrared Distance | 0~60 Feet |
| Durability | Weather Resistant |
| Gamma Correction | r=0.45 to 1.0 |
| Image Device | 1/3" Sharp® Color CCD |
| IR Distance | 15.24m/50ft |
| Minimum Scene Illumination | 0 Lux (IR On) |
| Operating Humidity | RH 95% Max |
| Operating Temperature | -40°C - 70°C |
| Dimensions (W x H) | 3.25" (H) x 3" (L) x 1" (D) |
| S/N Ratio | More than 48dB |
| Signal System | PAL / NTSC |
| Video Output | 1Vp.p 75 Ω |
| Weatherproof | IP69 |
| Synchronization | Internal Synchronization |
| Angle of View | 130° |
| IR LEDs | 18 |
| Auto Gain Control | Yes |
