RVS RVS-7709900Q 620 TVL Backup Camera System with Waterproof Quad View Monitor, 2.5mm Lens
SKU
RVS-7709900Q
Model No
RVS-082574
$508.79
Product Highlights
- 7" TFT LCD Quad Digital Color Display
- Completely Waterproof System - IP69K
- 130° Ultra Wide Viewing Angle
- 18 Infra-red Lights - 50ft of Night Vision
- Touch Screen Display
Speak to an expert

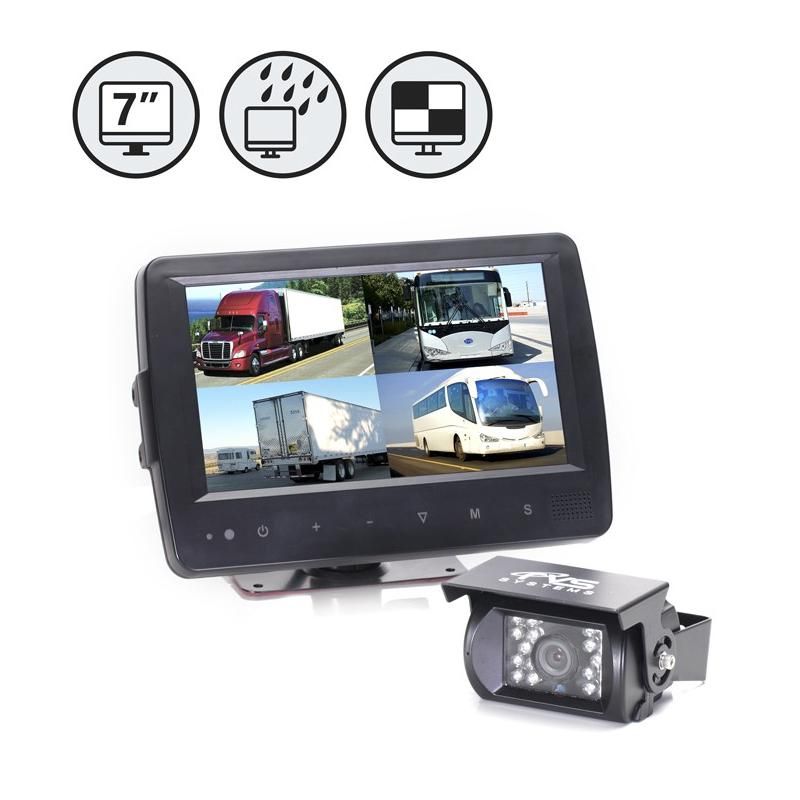

The RVS-7709900Q from RVS is a 620 TVL Backup Camera System with Waterproof Quad View Monitor, 2.5mm Lens. This amazing waterproof backup camera system is complete with a 7" QUAD DIGITAL TFT-LCD monitor with a touch screen display which is completely waterproof with an IP69K rating and is suited for any application where the monitor is exposed to water elements. The CCD camera boasts a 130° viewing angle with 18 infra-reds and an IP69K rating. The system comes complete with all the wires, connectors and mounts you will need.
RVS RVS-7709900Q Features
- 7" TFT LCD Quad Digital Color Display: Enjoy a large and vivid screen that provides clear images and enhances visibility while reversing.
- Completely Waterproof System - IP69K: Built to withstand harsh environmental conditions, making it reliable for outdoor use.
- 130° Ultra Wide Viewing Angle: The wide lens angle allows you to see more area behind your vehicle, reducing blind spots.
- 18 Infra-red Lights - 50ft of Night Vision: Enhanced night vision capabilities allow for safe reversing in low-light conditions.
- Touch Screen Display: User-friendly interface that simplifies operation and navigation of the monitor menus.
RVS RVS-7709900Q Detailed Specifications
| Camera Resolution | 620 TVL |
| Lens Type | 2.5mm |
| Viewing Angle | 130° |
| Night Vision | 50ft with 18 infra-red lights |
| Monitor Size | 7 inches |
| Waterproof Rating | IP69K |
| System Includes | All wires, connectors, and mounts |
SKU  | RVS-7709900Q |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 620 TVL |
| Sensor Option | 1/3" CCD |
| Lens Type | Fixed |
| Lens Size | 2.5mm |
| Infrared Distance | 0~60 Feet |
| Durability | Weather Resistant |
| Mount Type | Ceiling, Wall |
| Electronic Shutter | 1/50, 160-1/100,000sec |
| Gamma Correction | r=0.45 to 1.0 |
| Image Device | 1/3" Sharp Color CCD |
| Image Pixels Total | 410,000 pixels |
| IR Distance | 15.24m/50ft |
| Minimum Scene Illumination | 0 Lux (IR On) |
| Operating Humidity | RH 95% Max |
| Operating Temperature | -40°C ~ +70°C |
| Dimensions (W x H) | (with bracket) 3.25" (H) x 3" (L) x 1.5" (D) |
| S/N Ratio | More Than 48db |
| Signal System | NTSC / PAL |
| Video Output | 1Vp-p 75 Ω |
| Weatherproof | IP69K |
| Synchronization | Internal Synchronization |
| Angle of View | 130° |
| IR LEDs | 18 |
| Automatic White Balance | Yes |
| Auto Gain Control | Yes |
