RVS Systems RVS-770913 480 TVL Analog Outdoor Backup Camera System, 2.1mm Lens
SKU
RVS-770913
Model No
RVS-082517
$432.27
Product Highlights
- Choose Replacement, Clip-on, or Self Standing Mirror Monitor
- Break Light Housing - Replaces Third Brake Light
- Distance Grid Lines for Backing Up Reference
- 130° Ultra Wide Viewing Angle and Excellent Night Vision
- Completely Waterproof Camera - IP68
Speak to an expert
This RVS Systems RVS-770913 backup camera system is designed for Chevy Express Vans, providing users with exceptional clarity and safety while reversing. Featuring a 7" TFT LCD color monitor, night vision capabilities, and a robust IP68 weatherproof rating, this system ensures a reliable performance in various conditions. With its easy installation options and advanced sensor technology, this camera system enhances your driving experience by improving visibility and awareness.
RVS Systems RVS-770913 Camera Features

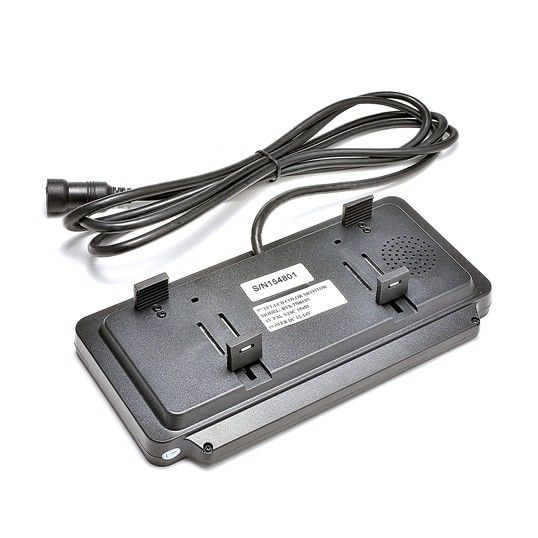

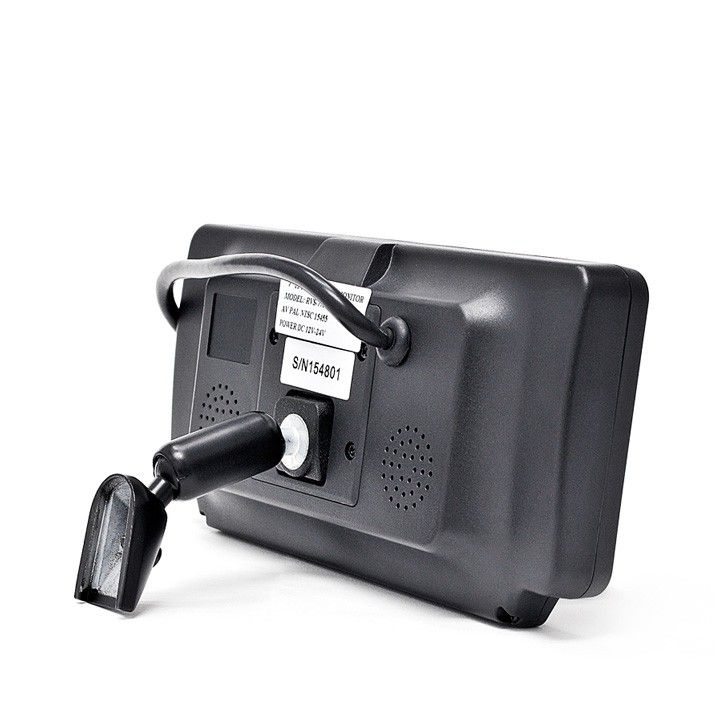

- Choose Replacement, Clip-on, or Self Standing Mirror Monitor: Offers versatile installation options to suit your preferences and vehicle setup.
- Break Light Housing: Replaces the third brake light, providing a sleek and integrated look while adding functionality.
- Distance Grid Lines: Helps you gauge distances while reversing, reducing the risk of accidents and collisions.
- 130° Ultra Wide Viewing Angle: Expands your field of vision significantly, ensuring you can see more of what's behind you, including large obstacles.
- Completely Waterproof Camera - IP68: Protects against rain, moisture, and harmful elements, ensuring optimal performance in all weather conditions.
Detailed Specifications for RVS Systems RVS-770913
| Monitor Size | 7" TFT LCD |
| Camera Resolution | 480 TVL |
| Lens Type | 2.1mm Lens |
| Viewing Angle | 130° |
| Night Vision | Yes |
| Weatherproof Rating | IP68 |
| Vibration Rating | 10G |

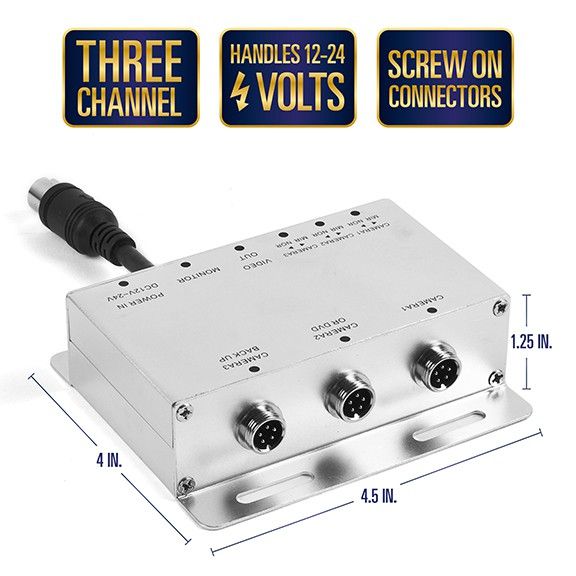

| Multiplexer Type | 3 Channel |
| Distance Grid Lines | Included |
SKU  | RVS-770913 |
|---|---|
| Features | Auto Gain Control, Day/Night, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 480 TVL |
| Sensor Option | 1/4" Image Sensor |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Infrared Distance | Non Infrared |
| Durability | Weather Resistant |
| Electronic Shutter | 1/50, 160-1/100,000sec |
| Gamma Correction | r=0.45 to 1.0 |
| Minimum Scene Illumination | 0.3 Lux |
| Operating Humidity | RH 95% Max |
| Operating Temperature | -30°C ~ +80°C |
| Dimensions (W x H) | Camera: 1.50" (H) x 9.5" (L) x 3" (D), Multiplexer:1.25" (H) x 4.5" (L )x 4" (D), Monitor: 4.5" (H) x 9.5" (L) x 1" (D) |
| Power Consumption | 5W |
| S/N Ratio | More than 48dB |
| Signal System | PAL / NTSC |
| Video Output | 1Vp.p 75ohm |
| Weatherproof | IP68 |
| Synchronization | Internal Synchronization |
| Angle of View | 130° |
| Day/Night | Yes |
| Auto Gain Control | Yes |
