RVS Systems RVS-7707721 480 TVL Backup Camera System with Flushmount Camera, 2.8mm Lens

SKU
RVS-7707721
Model No
RVS-0825009
$259.46
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 7" LED Digital Panel Color Display
  • 170° Ultra Wide Viewing Angle
  • 9 Infra-Red Lights - Perfect Night Vision
  • Completely Waterproof Camera - IP68
  • Camera Mounts with Bracked or Flush on Vehicle

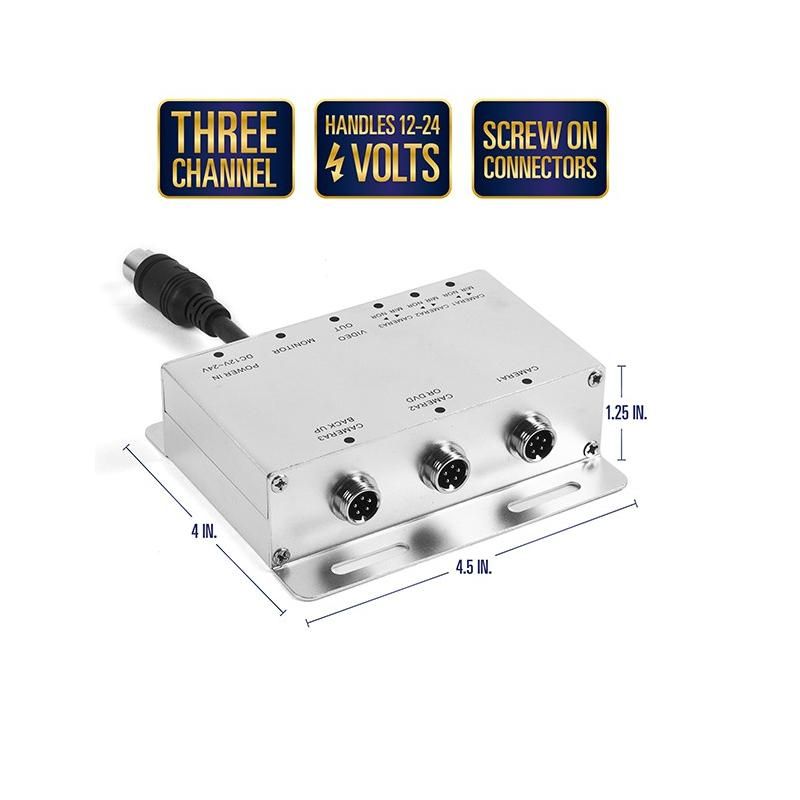

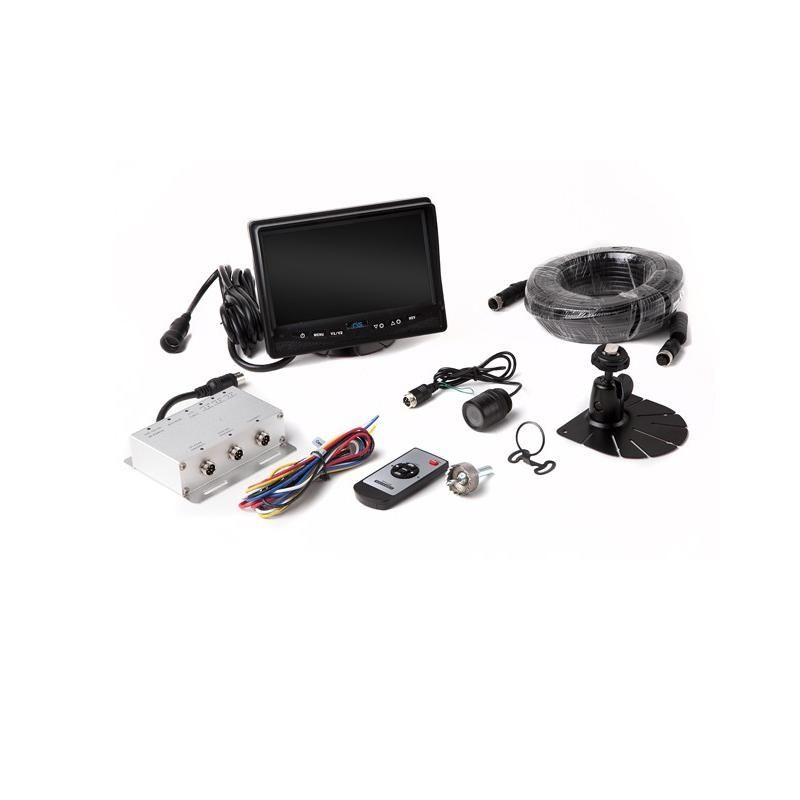

The RVS-7707721 from RVS Systems is a 480 TVL Backup Camera System with Flushmount Camera, 2.8mm Lens. This system is complete with a color 7" LED Digital Panel Color Monitor with mirror image capability, a 3 channel multiplexer with automatic system switch, 120° MT9V139 Camera with 50 foot infra-red night vision and all the wires, connectors and mounts you will need. The system is completely weatherproof with an IP68 rating, strong and reliable, shock resistant with a 15G vibration rating (highest in the industry).

RVS Systems RVS-7707721 Camera Features

  • 7" LED Digital Panel Color Display: Provides clear and bright visuals for easier reversing and parking.
  • 170° Ultra Wide Viewing Angle: Ensures maximum coverage while reducing blind spots.
  • 9 Infra-Red Lights - Perfect Night Vision: Allows for reliable visibility in low-light conditions, enhancing safety when reversing at night.
  • Completely Waterproof Camera - IP68: Guarantees durability and performance in challenging weather conditions.
  • Camera Mounts with Bracket or Flush on Vehicle: Offers flexible installation options to suit various vehicle types.

RVS Systems RVS-7707721 Detailed Specifications

Display Size7 inches
Camera Resolution480 TVL
Camera Lens2.8mm
Infra-red Lights9
Viewing Angle170 degrees
Night Vision Range50 feet
Weatherproof RatingIP68
Vibration Resistance15G
SKU  RVS-7707721
Features  Auto Gain Control, Automatic White Balance, Back Light Compensation, Mirror, Weather Resistant
Manufacturer  RVS Systems
Camera Signal     Analog
Resolution    480 TVL
Sensor Option    1/4" Image Sensor
Lens Type    Fixed
Lens Size    2.8mm
Infrared Distance    0~60 Feet
Durability    Weather Resistant
Mount Type  Flush Mount
Image Device    1/4 inch MT9V139
Image Pixels Total307,200 Pixels
Image Pixels-Effective728 (H) X 560 (V)
IR Distance  15.24m/50ft
Minimum Scene Illumination  0.5 Lux
Operating Temperature    -40 ~ 75 °C

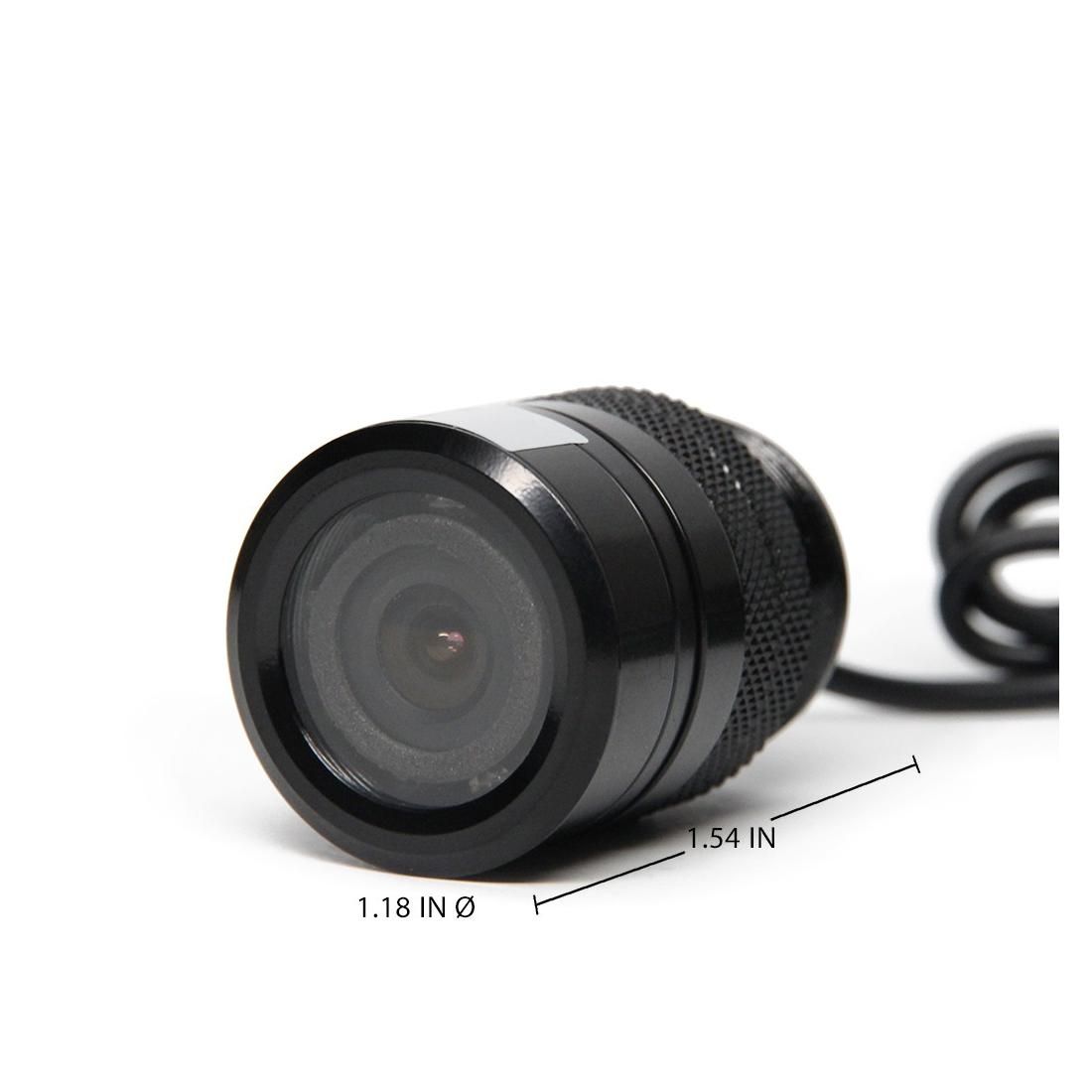

Dimensions (W x H)  1.20" (H) x 1.18" (L) x 1.54" (D)
Power Consumption  1.5 Watts
S/N Ratio  More Than 48db
Signal System    NTSC / PAL
Video Output    CVBS , 1.0Vp-p 75 Ohm
Weatherproof    IP68
Synchronization  Internal
Angle of View    120°
Backlight Compensation    Auto
Auto Gain Control    Auto
IR LEDs  8PCS
Back Light Compensation    Yes
Automatic White Balance    Yes
Mirror    Yes
Auto Gain Control    Yes
