RVS Systems RVS-770718 620 TVL Backup Camera System With Replacement Mirror Monitor, 2.5mm Lens
SKU
RVS-770718
Model No
RVS-507620
$360.28
Product Highlights
- 4.3" TFT-LCD Mirror Monitor
- Acts as a Mirror as well as a Monitor
- Distance Grid Lines for Backing Up Reference
- 130° Ultra Wide Viewing Angle
- Completely Waterproof Backup Camera with 18 Infra-red Lights
Speak to an expert
This RVS Systems RVS-770718 Backup Camera System features a 620 TVL resolution and a replacement mirror monitor, enhancing your vehicle's safety by providing a clear view of what’s behind you. With a reliable 130° CCD camera equipped with infra-red night vision and adjustable distance grid lines, this weatherproof system ensures excellent performance in all conditions, while the innovative mirror monitor design combines convenience and functionality, replacing your existing rearview mirror.
RVS Systems RVS-770718 Camera Features
- 4.3" TFT-LCD Mirror Monitor: Provides a clear display of the rear view without compromising your car's aesthetics, as it replaces the standard mirror.
- Acts as a Mirror as well as a Monitor: Dual functionality enhances driver convenience—offering the benefits of a traditional mirror with added modern technology.
- Distance Grid Lines for Backing Up Reference: Adjustable grid lines assist in parking and reversing safely, making it easier to gauge distances accurately.
- 130° Ultra Wide Viewing Angle: Expands your field of vision, minimizing blind spots to enhance overall safety while driving or reversing.
- Completely Waterproof Backup Camera with 18 Infra-red Lights: IP69K rated for weather resistance; ensures clear images even in low-light conditions, enhancing reliability.
RVS Systems RVS-770718 Detailed Specifications
| Model | RVS-770718 |
| Monitor Size | 4.3 inches |
| Camera Resolution | 620 TVL |
| Viewing Angle | 130° |
| Night Vision | 50 feet with infra-red lights |
| Weatherproof Rating | IP69K |
| Shock Resistance | 20G vibration rating |
| Camera Inputs | Two camera inputs |
SKU  | RVS-770718 |
|---|---|
| Features | Auto Gain Control, Day/Night, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 620 TVL |
| Sensor Option | 1/3" CCD |
| Lens Type | Fixed |
| Lens Size | 2.5mm |
| Infrared Distance | 0~60 Feet |
| Durability | Weather Resistant |
| Electronic Shutter | 1/50, 160-1/100,000sec |
| Gamma Correction | r=0.45 to 1.0 |
| IR Distance | 15.24m/50ft |
| Minimum Scene Illumination | 0 Lux (IR On) |
| Operating Humidity | RH 95% Max |
| Operating Temperature | -40°C ~ +70°C |

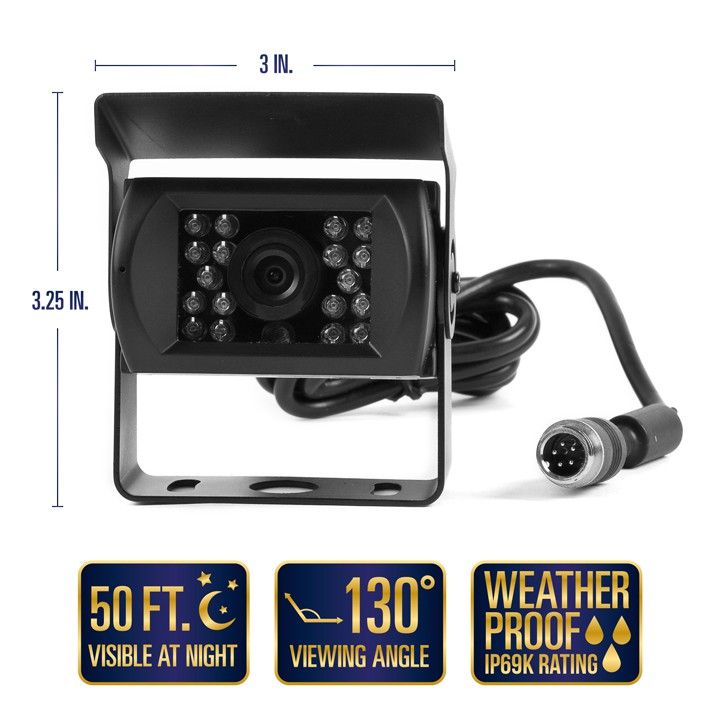

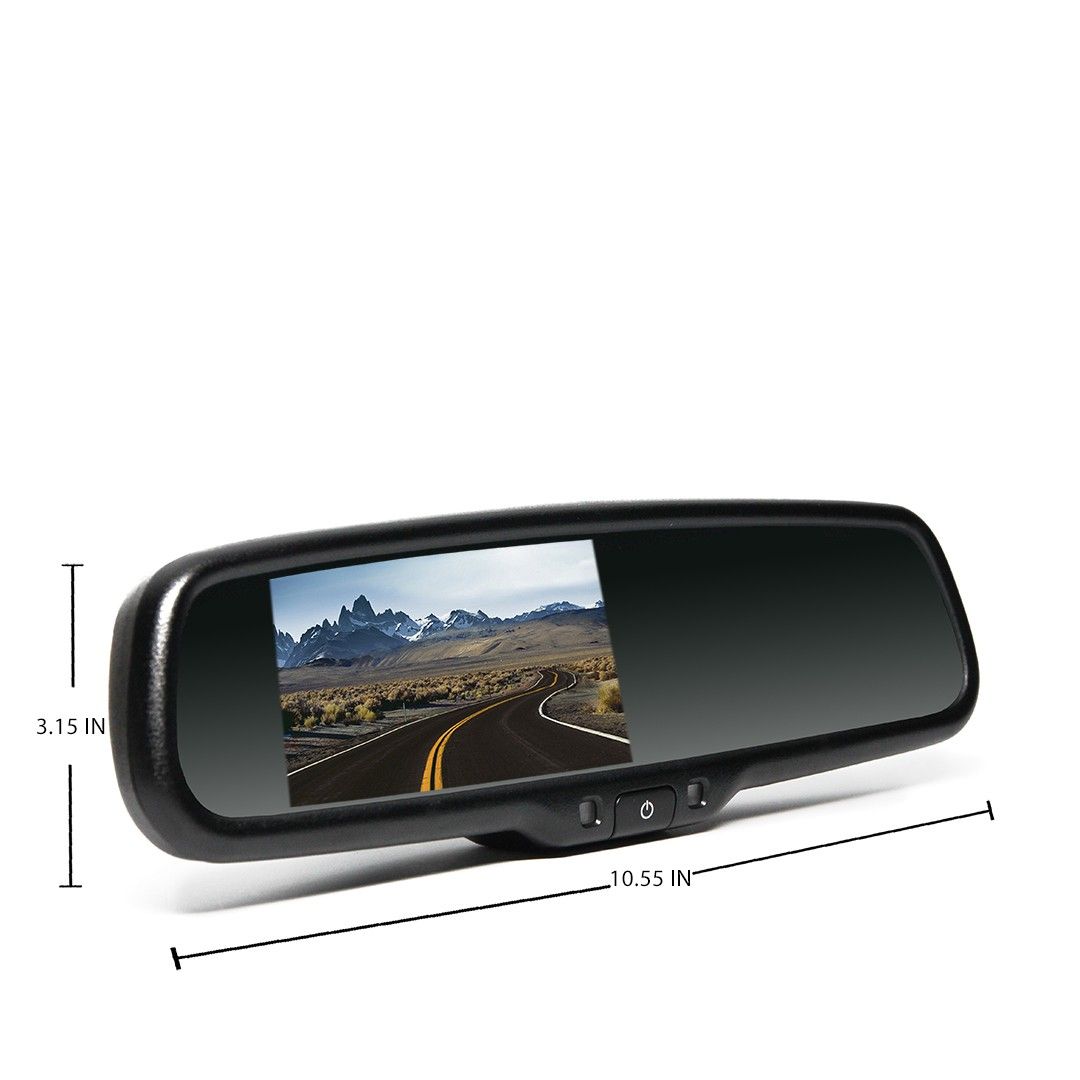

| Dimensions (W x H) | Camera: (with brackets) 3.25" (H) x 3" (L) x 1.5" (D), Mirror Monitor: 3.15" (H) x 10.55" (L) x 1" (D) |
| Power Consumption | 8W |
| S/N Ratio | More than 48dB |
| Signal System | PAL / NTSC |
| Video Output | 1Vp.p 75ohm |
| Weatherproof | IP69 |
| Synchronization | Internal Synchronization |
| Angle of View | 130° |
| IR LEDs | 18 |
| Day/Night | Yes |
| Auto Gain Control | Yes |
