RVS Systems RVS-770619D-NM-01 620 TVL 7" Mirror Monitor (Dodge), Backup Camera, 66ft Cable
SKU
RVS-770619D-NM-01
Model No
RVS-770619D-NM-01
$527.87
Product Highlights
- 7" TFT - LCD Mirror Replacement Color Monitor
- Attaches to windshield replacing rearview mirror
- Completely waterproof backup camera with an IP69K rating
- 18 infra-red lights provide 50ft of night vision
- 3 Port Harness - can add an additional two cameras
Speak to an expert
The RVS-770619D-NM-01 from RVS Systems is an amazing backup camera system with a color 7" TFT-LCD Digital Rear View Mirror Monitor featuring distance grid lines. It easily replaces or attaches to the existing rearview mirror inside the vehicle and fits all Dodge and Sprinter vehicles from 2010 onwards. With its mirror image capability, high-quality CCD camera, and superior night vision, this system ensures maximum safety and convenience during parking and reversing.
Features
- 7" TFT-LCD Color Monitor: Provides a clear view of the rear environment for enhanced safety.
- Easy Installation: Attaches to the windshield, replacing the existing rearview mirror for a seamless look.
- IP69K Weatherproof Rating: Ensures durability and functionality in all weather conditions.
- Infra-red Night Vision: 18 infra-red lights provide up to 50ft visibility for safe nighttime maneuvers.
- 3 Port Harness: Allows for connecting up to two additional cameras for improved visibility and flexibility.

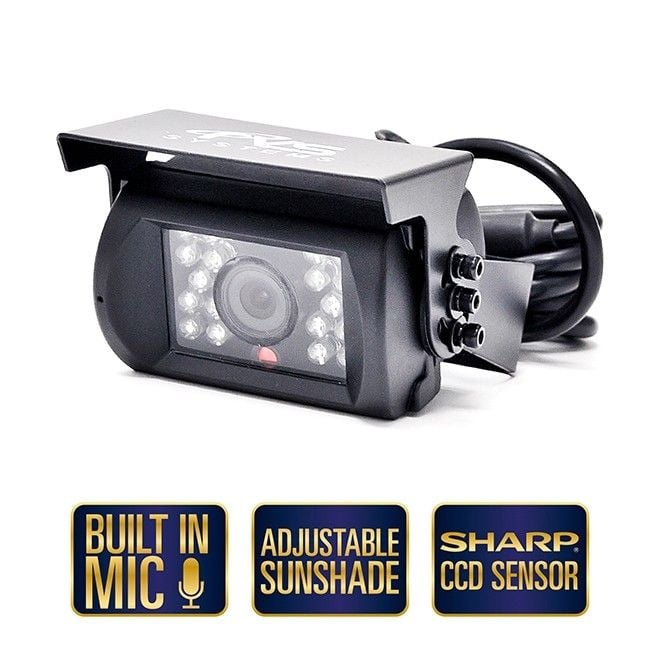

RVS Systems RVS-770619D-NM-01 Detailed Camera Specifications
| Feature | Details |
|---|---|
| Monitor Type | 7" TFT-LCD Digital Rear View Mirror |
| Camera Resolution | 410,000 pixels |
| Lens Size | 2.5 mm |
| Night Vision | 18 Infra-red lights provide up to 50ft visibility |
| Weatherproof Rating | IP69K |
| Vibration Resistance | 20G |
| Impact Rating | 100G (highest in industry) |

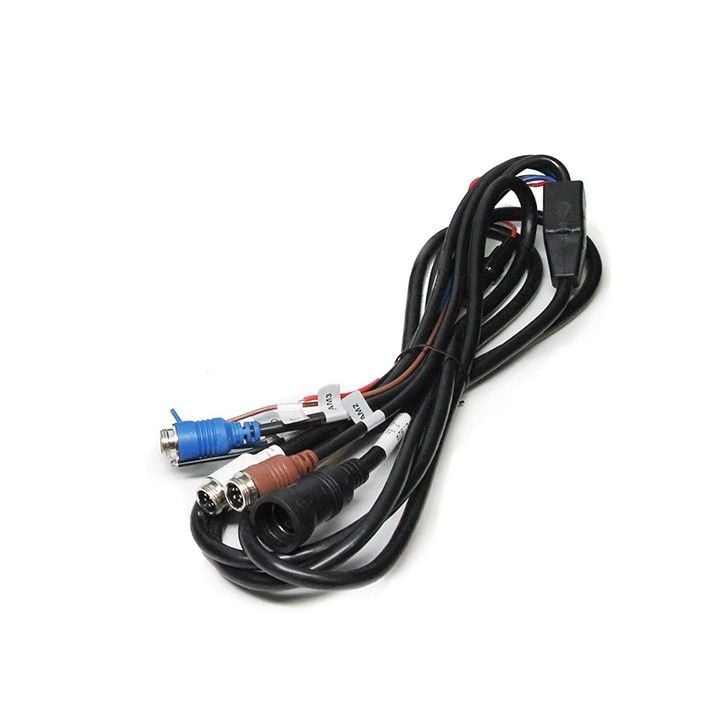

| Power Harness | 3 port power harness included |
| Installation Compatibility | Fits Dodge and Sprinter vehicles from 2010; options for other brands available |
| Camera Cable Length | 66 feet |
SKU  | RVS-770619D-NM-01 |
|---|---|
| Features | Auto Gain Control, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 620 TVL |
| Sensor Option | 1/3" CCD |
| Lens Type | Fixed |
| Lens Size | 2.5mm |
| Infrared Distance | 0~60 Feet |
| Durability | Weather Resistant |
| Gamma Correction | r=0.45 to 1.0 |
| Image Device | 1/3” SHARP® COLOR CCD |
| IR Distance | 15.24m/50ft |
| Minimum Scene Illumination | 0 Lux (IR On) |
| Operating Humidity | RH 95% Max |
| Operating Temperature | -40°C ~ +70°C |
| Dimensions (W x H) | 1.40" (H) x 1.50" (L) x 1.10" (D) |
| S/N Ratio | More than 48dB |
| Video Output | 1Vp - p, 75 Ω |
| Weatherproof | IP69 |
| Synchronization | Internal Synchronization |
| Angle of View | 130° |
| IR LEDs | 18 |
| Auto Gain Control | Yes |
