RVS Systems RVS-770617N 420 TVL Car Backup Camera System, 2.8mm Lens
SKU
RVS-770617N
Model No
RVS-082563
$139.91
Product Highlights
- Monitor with 3.5" Display
- 120° Ultra Wide Viewing Angle and Excellent Night Vision
- Completely Waterproof Camera - IP68
- Camera Mounts Right Above License Plate
- Compact Camera Ideal for Smaller Vehicles
Speak to an expert

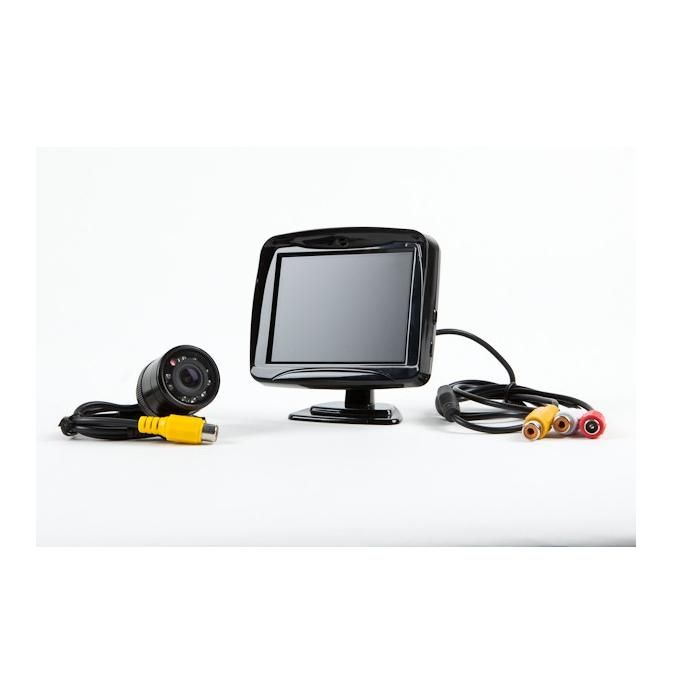

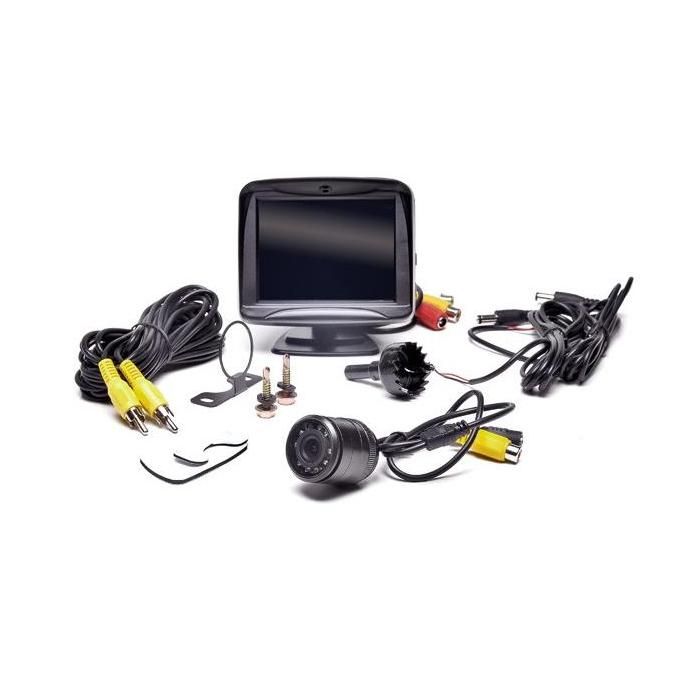

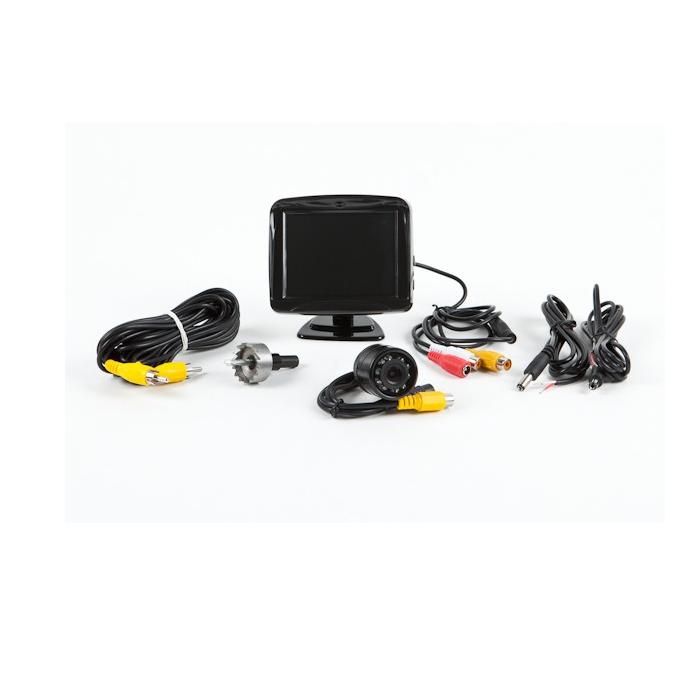

The RVS-770617N from RVS Systems is a 420 TVL Car Backup Camera System, 2.8mm Lens. This system is complete with a color 3.5" LCD monitor, 120° CMD camera with night vision and all the wires, connectors and mounts you will need. The system is weatherproof, strong and reliable, shock resistant.
RVS Systems RVS-770617N Camera Features

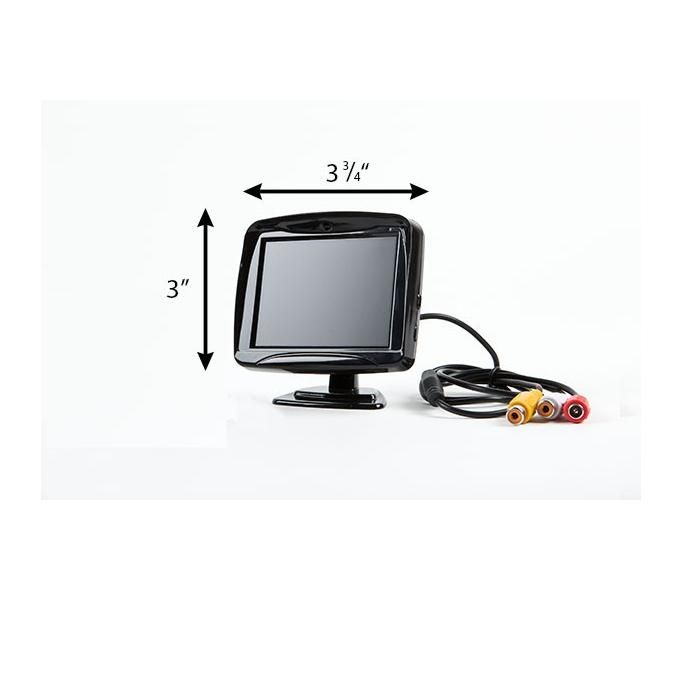

- Monitor: Features a 3.5" Display for clear visibility while reversing.
- Viewing Angle: 120° Ultra Wide Viewing Angle and Excellent Night Vision enhances safety in low light conditions.
- Waterproof Rating: Completely Waterproof Camera - IP68 ensures functionality in all weather conditions.
- Installation: Camera Mounts Right Above License Plate for easy and discreet installation.
- Size: Compact Camera Ideal for Smaller Vehicles, making it versatile for different car types.
RVS Systems RVS-770617N Detailed Specifications
| Model | RVS-770617N |
| Camera Resolution | 420 TVL |
| Lens Type | 2.8mm Lens |
| Monitor Size | 3.5 inches |
| Viewing Angle | 120° CMD |
| Waterproof Rating | IP68 |
| Night Vision | Yes |
| Shock Resistance | Yes |
| Installation Type | Above License Plate |
| Ideal Vehicle Size | Smaller Vehicles |
SKU  | RVS-770617N |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 420 TVL |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Durability | Weather Resistant |
| Mount Type | Dashboard |
| Electronic Shutter | PAL: 1/50-1/100,000 Sec , NTSC: 1/60-1/100,000 Sec |
| Image Pixels-Effective | PAL: 628X586 Pixels , NTSC: 656X462 Pixels |
| Minimum Scene Illumination | 0.2Lux/F1.5(0 Lux With LED) |
| Operating Humidity | Rh95% MAX |
| Operating Temperature | -20°C ~ +60°C |
| Dimensions (W x H) | 1.25" (H) x 1.25" (L) x 1.10" (D) |
| Power Consumption | No More 300mA |
| S/N Ratio | More Than 48db |
| Scanning System | 2:1 Interlace |
| Signal System | NTSC / PAL |
| Video Output | 1.0Vp-p 75 Ohm |
| Weatherproof | IP67 |
| Synchronization | Internal |
| Angle of View | 120° |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Auto Gain Control | Yes |
