RVS Systems RVS-770616-NM Backup Camera System with Side Cameras
SKU
RVS-770616-NM
Model No
RVS-770616-NM
$576.46
Product Highlights

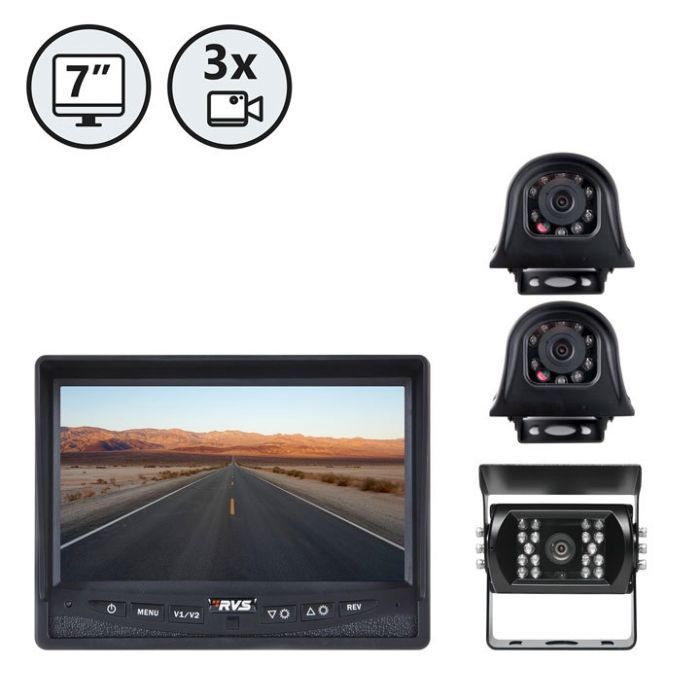

- Backup Camera System with Three Cameras
- 7" or 9" LED Digital Panel Color Display
- 130° Ultra Wide Viewing Angle
- Waterproof Backup Cameras with Infra-Red Night Vision
- Optional Quad View Upgrade (See Item Options)
Speak to an expert
This RVS Systems RVS-770616-NM Backup Camera System with Side Cameras offers a comprehensive solution for enhanced vehicle safety and convenience. Featuring a crystal clear 7" LED Digital Panel monitor, this system includes two side cameras and a primary backup camera, all equipped with advanced night vision and a wide viewing angle. With easy installation and user-friendly features, it ensures visibility in all conditions and improves overall driving confidence.
RVS Systems RVS-770616-NM Key Features

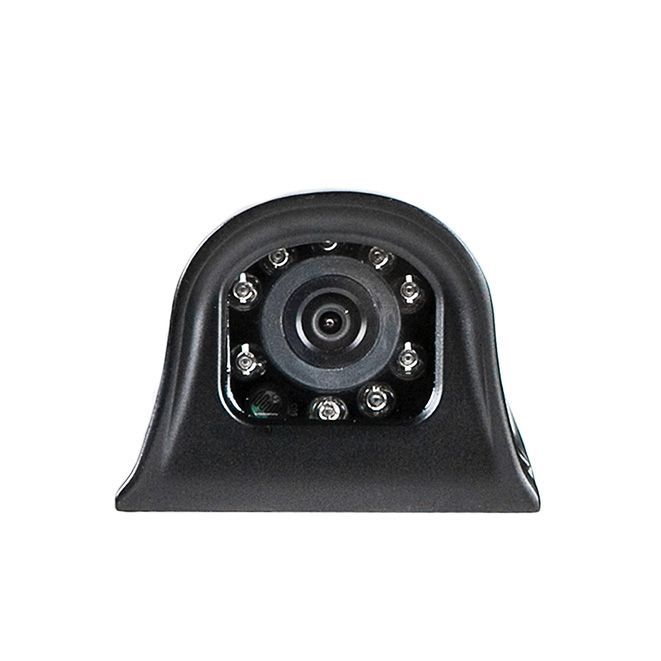

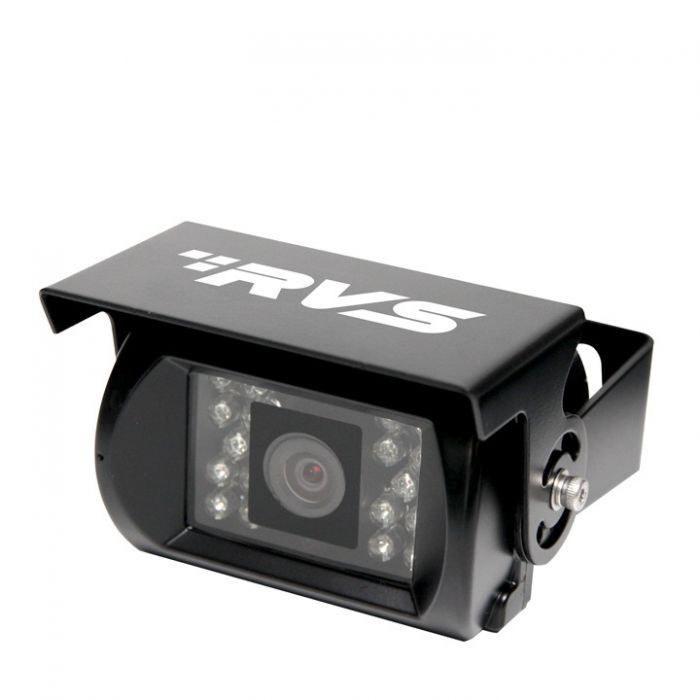

- Backup Camera System with Three Cameras: Includes one heavy-duty CCD backup camera and two side cameras for complete surround visibility.

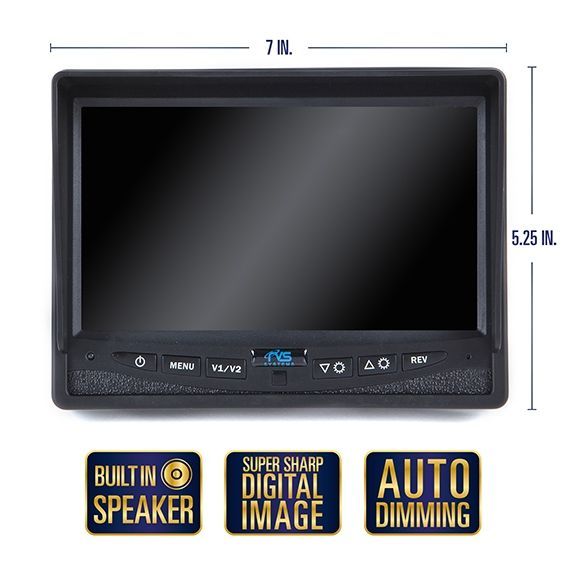

- 7" or 9" LED Digital Panel Color Display: The large screen provides crystal-clear images, making it easy to monitor surroundings.
- 130° Ultra Wide Viewing Angle: The wide angle ensures fewer blind spots, enhancing safety during maneuvers.
- Waterproof Backup Cameras with Infra-Red Night Vision: Fully operational in all weather conditions with night vision capability for low-light situations.
- Optional Quad View Upgrade: Allows for simultaneous viewing of multiple cameras for added flexibility (available in item options).
RVS Systems RVS-770616-NM Detailed Specifications
| Display Size | 7" LED Digital Panel |
| Camera Type | Heavy-duty CCD with two side cameras |
| Viewing Angle | 130° for backup camera, 120° for side cameras |
| Night Vision | 30-foot Infra-red capability |
| Waterproof Rating | IP68/IP69K |
| Vibration Rating | 20G (highest in the industry) |
| Warranty | 1 year |
SKU  | RVS-770616-NM |
|---|---|
| Features | Auto Gain Control |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 480 TVL |
| Sensor Option | 1/3" CCD |
| Lens Type | Fixed |
| Lens Size | 2.5mm |
| Infrared Distance | 0~60 Feet |
| Durability | Weather Resistant |
| Mount Type | Bracket Required |
| Image Pixels-Effective | 752(H) x 582(V), |
| IR Distance | 50 Feet |
| Minimum Scene Illumination | 0 LUX (IR ON) |
| Operating Temperature | –40° C to +70° C/RH 95% MAX |

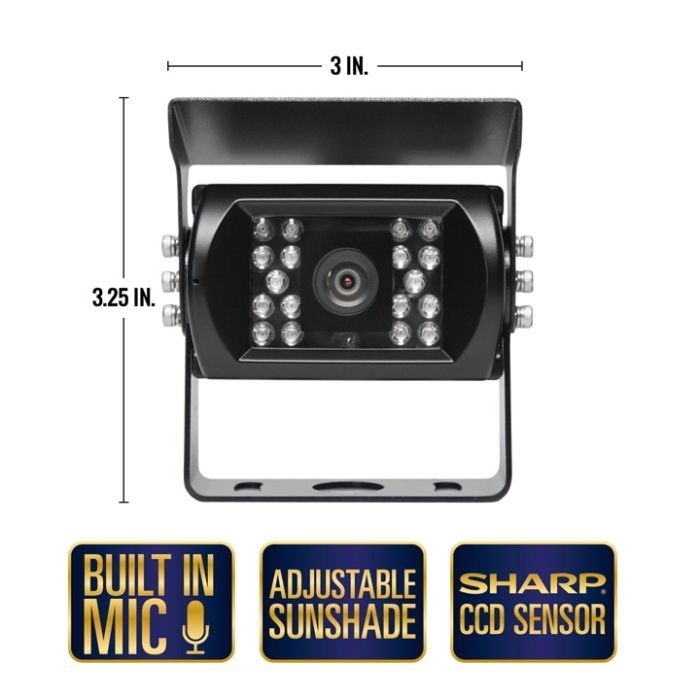

| Dimensions (W x H) | Side Camera: 1.85" (H) x 2.5" (L) x 3" (D), Backup Camera: 3.25" (H) 3" (L) 1.5" (D),Monitor: 5.25" (H) x 7" (L) x 1" (D) |
| S/N Ratio | More than 48 dB |
| Scanning System | Internal |
| Video Output | 1 VP - P 75 Ω |
| Weatherproof | IP68 |
| Angle of View | 120° |
| Auto Gain Control | Auto |
| IR LEDs | Seven (7) |
| Auto Gain Control | Yes |
There are no related videos.
Write Your Own Review
Manuals & Specifications
RVS-770616-NM-Specsheet RVS-770616-NM-Instruction-Manual
