RVS Systems RVS-770616-213-04 620 TVL Backup Camera, Both Side Cameras, 9" Quad View Display, 2 x 33' Cables

SKU
RVS-770616-213-04
Model No
RVS-770616-213-04
$826.50
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 1/3" Sharp Color CCD Camera
  • 130° Ultra Wide Viewing Angle
  • 18 Infra-Red Lights - 50ft of Night Vision
  • Completely Waterproof - IP69K Rating
  • 9" TFT LCD Digital Quad View Color Monitor

This backup camera system is perfect for the fifth wheel or travel trailer application, allowing you to mount three cameras. Mount two side cameras to the tow vehicle and one backup camera to your trailer and quickly connect or disconnect the backup camera with just one cable! The system comes with one backup camera and two side-view cameras which are ideal for blind-spot viewing on a large vehicle. Cameras come 9" TFT LCD digital quad view color monitor, 2 x 33' cables, trailer tow quick connect/disconnect kit.

RVS Systems RVS-770616-213-04 Camera Features

  • Camera Type: 1/3" Sharp Color CCD Camera - Delivers excellent image quality for clear visibility.
  • Viewing Angle: 130° Ultra Wide Viewing Angle - Eliminates blind spots for safer driving and maneuvering.
  • Night Vision: 18 Infra-Red Lights - 50ft of Night Vision - Provides enhanced visibility in low light conditions.
  • Durability: Completely Waterproof - IP69K Rating - Ensures reliable performance in all weather conditions.
  • Audio Capability: Built-In High Gain Mic - Allows you to hear sounds around your vehicle for added safety.
  • Display: 9" TFT LCD Digital Quad View Color Monitor - Offers a clear view of all connected cameras with easy navigation.

RVS Systems RVS-770616-213-04 Detailed Camera Specifications

Camera Type1/3" Sharp Color CCD Camera
Viewing Angle130° Ultra Wide Viewing Angle
Night Vision18 Infra-Red Lights - 50ft of Night Vision
Waterproof RatingIP69K Rating
MicrophoneBuilt-In High Gain Mic
Monitor Size9" TFT LCD Digital Quad View Color Monitor

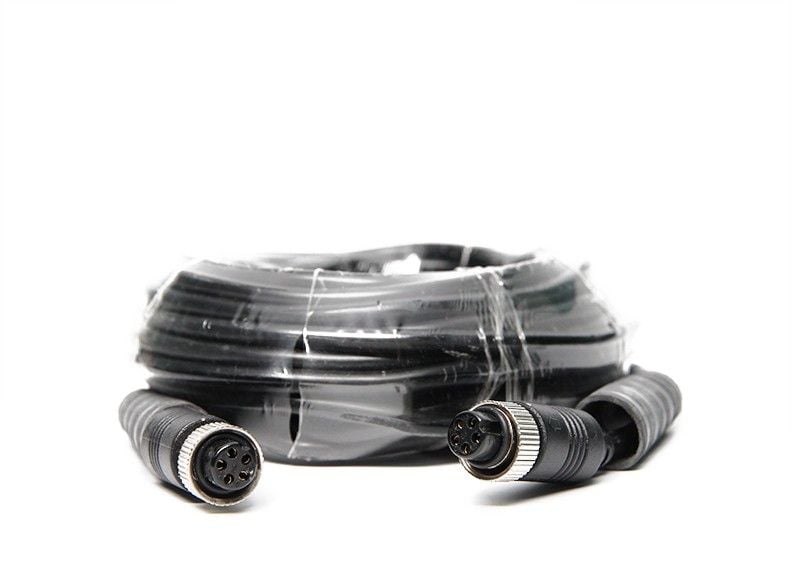

Cable Length2 x 33' Cables
Quick DisconnectTrailer Tow Quick Connect/Disconnect Kit
SKU  RVS-770616-213-04
Features  Auto Gain Control, Weather Resistant
Manufacturer  RVS Systems
Camera Signal     Analog
Resolution    620 TVL
Sensor Option    1/3" CCD
Lens Type    Fixed
Lens Size    2.1mm, 2.5mm
Infrared Distance    0~60 Feet
Durability    Weather Resistant
Gamma Correction  R=0.45 TO 1.0
Image Device    Backup Camera: 1/3" Sharp Color CCD, Side Camera: 1/4" Sharp Color CCD
IR Distance  Backup Camera: 15.24m / 50ft, Side Camera: 9.14m / 30ft
Minimum Scene Illumination  0 LUX (IR ON)
Operating Humidity    RH 95% MAX
Operating Temperature    Backup Camera: -40°C ~+70°C, Side Camera: -40°C ~ +80°C
S/N Ratio  MORE THAN 48DB
Video Output    1Vp.p 75 Ω
Weatherproof    IP69
Synchronization  INTERNAL SYNCHRONIZATION
Angle of View    Backup Camera: 130°, Side Camera: 120°
IR LEDs  Backup Camera: 18 LED, Side Camera: 9
Auto Gain Control    Yes
