RVS Systems RVS-770614-213 620 TVL Analog Outdoor Backup Camera System With Two Camera Setup, 2.5mm Lens
- Trailer Tow Quick Connect Kit - for Trucks and Trailers
- 7" LED Digital Panel Color Monitor
- Completely Waterproof Backup Cameras - IP69K
- 130° Viewing Angle with 18 Infra-red Night Vision Lights
- Built-In Mic on Cameras and Speakers on Monitor for Audio
This two camera backup camera system is perfect for the fifth wheel or travel trailer application where you want a backup camera on the back of the trailer and one reverse camera on the truck. The system is complete with a crystal clear 7" LED Digital Panel COLOR monitor display with mirror image capability and distance grid lines, 2 channels with automatic system switch, two (2) 130° CCD cameras with 50 foot infra-red night vision and all the wires, connectors and mounts you will need. The 5th wheel rear view back up camera system is completely weatherproof with an IP69K rating. The quick connect/disconnect is 66' to camera and 26' to the monitor. The system is strong and reliable, shock resistant with a 20G vibration rating (highest in the industry).
RVS Systems RVS-770614-213 Camera Features
Features

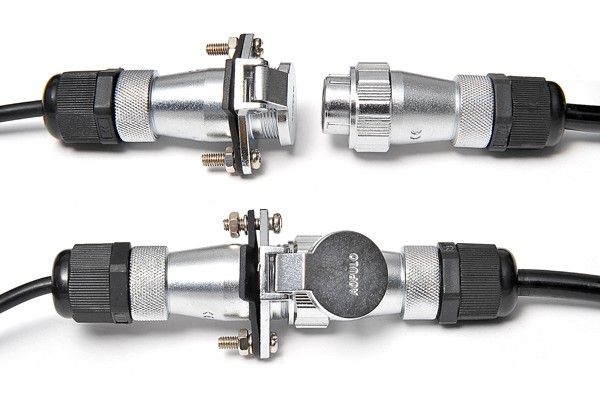

- Trailer Tow Quick Connect Kit: Easily connects your truck and trailer for hassle-free installation and removal.
- 7" LED Digital Panel Color Monitor: Provides clear and vibrant visuals for improved safety while reversing.
- Completely Waterproof Backup Cameras: With an IP69K rating, these cameras are protected against harsh weather conditions.
- 130° Viewing Angle: Offers an extensive field of view to minimize blind spots during reversing.
- Infra-red Night Vision: 18 infrared lights enable visibility even in low-light conditions, enhancing nighttime safety.
- Built-In Mic and Speakers: Facilitates audio communication between the cameras and monitor for added convenience.
RVS Systems RVS-770614-213 Detailed Camera Specifications
| Monitor Size | 7 inches |
| Camera Resolution | 620 TVL |
| Lens Size | 2.5mm |
| Camera Viewing Angle | 130° |
| Night Vision Distance | 50 feet |
| Weatherproof Rating | IP69K |
| Flash Night Vision Lights | 18 Infra-red Lights |
| Shock Resistance | 20G Vibration Rating |
| Wiring Length (to Camera) | 66 feet |
| Wiring Length (to Monitor) | 26 feet |
SKU  | RVS-770614-213 |
|---|---|
| Features | Auto Gain Control, Day/Night, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 620 TVL |
| Sensor Option | 1/3" CCD |
| Lens Type | Fixed |
| Lens Size | 2.5mm |
| Infrared Distance | 0~60 Feet |
| Durability | Weather Resistant |
| Mount Type | Ceiling, Wall |
| Electronic Shutter | 1/50, 160-1/100,000sec |
| Gamma Correction | r=0.45 to 1.0 |
| Image Device | 1/3" Sharp® Color CCD |
| IR Distance | 15.24m/50ft |
| Minimum Scene Illumination | 0 Lux (IR On) |
| Operating Humidity | RH 95% Max |
| Operating Temperature | -40°C ~ +70°C |
| Dimensions (W x H) | 3.25" (H) x 3" (L) x 1.5" (D) |
| Power Consumption | 5W |
| S/N Ratio | More than 48dB |
| Signal System | PAL/NTSC |
| Video Output | 1Vp-p, 75Ω |
| Weatherproof | IP69 |
| Synchronization | Internal |
| Angle of View | 130° |
| IR LEDs | 18 |
| Audio | Yes |
| Day/Night | Yes |
| Auto Gain Control | Yes |
RVS-770614-213-Specsheet RVS-770614-213-Manual
