RVS Systems RVS-7706135-02 620 TVL Backup Camera, 7" Display, Left Side Camera, 33' and 66' Cable

SKU
RVS-7706135-02
Model No
RVS-7706135-02
$373.95
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • Backup Camera System with 1 Backup and 1 Side Camera
  • 7" or 9" LED Digital Panel Display (See Item Options)
  • Waterproof Cameras with Infra-Red Night Vision
  • Optional Quad View Upgrade (See Item Options)
  • Built-in Mic and Speaker for Audio

The RVS-7706135-02 is a high-performance 2-camera backup system, featuring a 7" LED Digital Panel monitor and left-side camera. With its impressive 620 TVL resolution, this system offers crystal-clear visuals day and night thanks to its infra-red night vision technology. Built for durability, it boasts an IP69K weatherproof rating and exceptional shock resistance, making it a reliable choice for any vehicle. Enjoy enhanced safety and convenience with the automatic system switch and built-in audio features for added awareness while reversing.

RVS Systems RVS-7706135-02 Camera Features

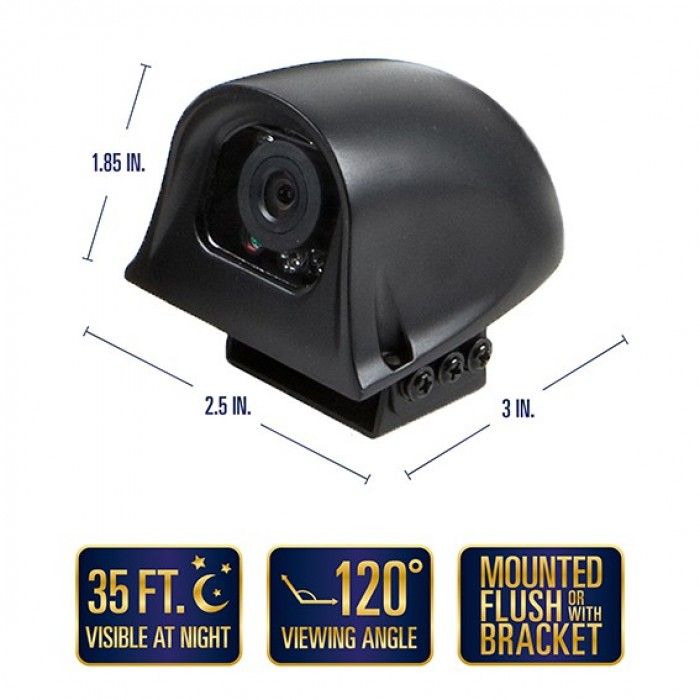

  • 2-Camera System: Includes one backup camera and one left-side camera, ensuring maximum visibility while reversing and changing lanes.
  • 7" LED Digital Monitor: Offers a large, clear display of 620 TVL for excellent image quality, enhancing your ability to see obstacles and surroundings.
  • Weatherproof Design: Cameras are IP69K rated, capable of withstanding harsh weather conditions, ensuring the system remains operational in rain, snow, or fog.
  • Infra-Red Night Vision: Features 50-foot night vision, allowing for safe navigation in complete darkness, ensuring visibility at all times.
  • Built-in Microphone: Provides audio feedback of the area behind your vehicle, increasing safety awareness when reversing.
  • Automatic System Switch: Employs a 3-channel multiplexer that automatically switches views, maximizing convenience and safety.

RVS Systems RVS-7706135-02 Detailed Specifications

Product TypeBackup Camera System
Display Size7" LED Digital Panel
Camera Resolution620 TVL
Cameras Included1 Backup Camera, 1 Left Side Camera
Camera Lens2.5 mm with 410,000 pixels
Night Vision Range50-foot Infra-Red
Weather RatingIP69K for Cameras
Shock Resistance20G vibration rating
Impact Resistance100G impact rating
Audio FeaturesBuilt-in microphone and speaker
Cable Lengths66' and 33' available options
Multiplexer3-channel with aircraft grade connectors
SKU  RVS-7706135-02
Features  Auto Gain Control, Weather Resistant
Manufacturer  RVS Systems
Camera Signal     Analog
Resolution    620 TVL
Lens Type    Fixed
Lens Size    2.1mm, 2.5mm
Infrared Distance    0~60 Feet
Durability    Weather Resistant
Gamma Correction  r=0.45 to 1.0
Image Device    1/43" Sharp® Color CCD , 1/4" Sharp® Color CCD
IR Distance  Backup Camera: 15.24m/50ft, Side Camera: 9.14m/30ft
Minimum Scene Illumination  0 Lux (IR On)
Operating Temperature    -40°C ~ +70°C / RH 95% Max
Power Consumption  5W
S/N Ratio  More than 48dB
Signal System    NTSC/PAL
Video Output    1Vp-p 75 Ω
Weatherproof    IP69K
Synchronization  Internal Synchronization
Angle of View    130° , 120°
Auto Gain Control    Yes
