RVS Systems RVS-7706135-01 620 TVL Backup Camera, 7" Display, Right Side Camera, 33' and 66' Cable
SKU
RVS-7706135-01
Model No
RVS-7706135-01
$1,017.59
Product Highlights
- Backup Camera System with 1 Backup and 1 Side Camera
- 7" or 9" LED Digital Panel Display (See Item Options)
- Waterproof Cameras with Infra-Red Night Vision
- Optional Quad View Upgrade (See Item Options)
- Built-in Mic and Speaker for Audio
Speak to an expert
The RVS-7706135-01 is a premium 2-camera system that ensures optimal visibility and functionality while reversing. It features a high-definition 7" LED Digital Panel monitor with mirror image capabilities, two advanced CCD cameras with exceptional 50-foot infrared night vision, and all necessary installation accessories included. Its robust construction guarantees durability with an IP69K weatherproof rating and an impressive 20G vibration resistance, making it a reliable choice for any vehicle.
RVS Systems RVS-7706135-01 Camera Features

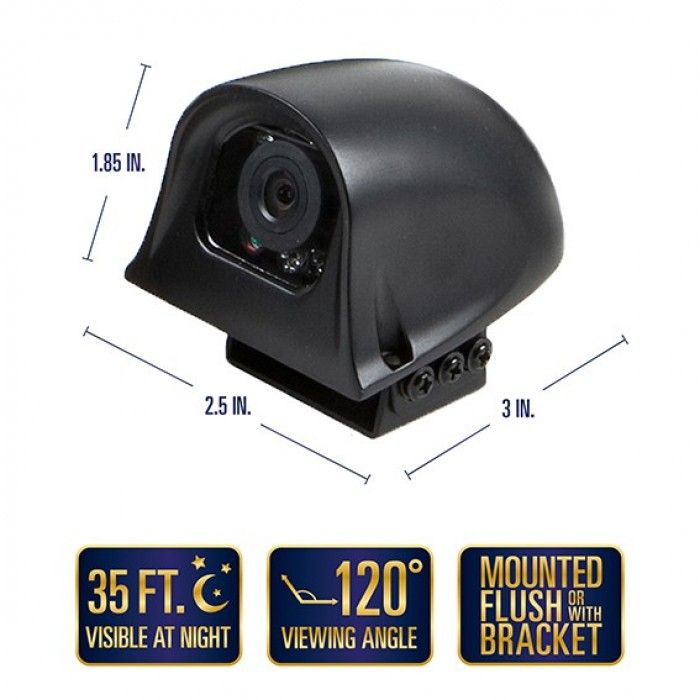

- Backup Camera System: This system includes 1 Backup and 1 Side camera, providing comprehensive coverage while reversing to enhance safety.

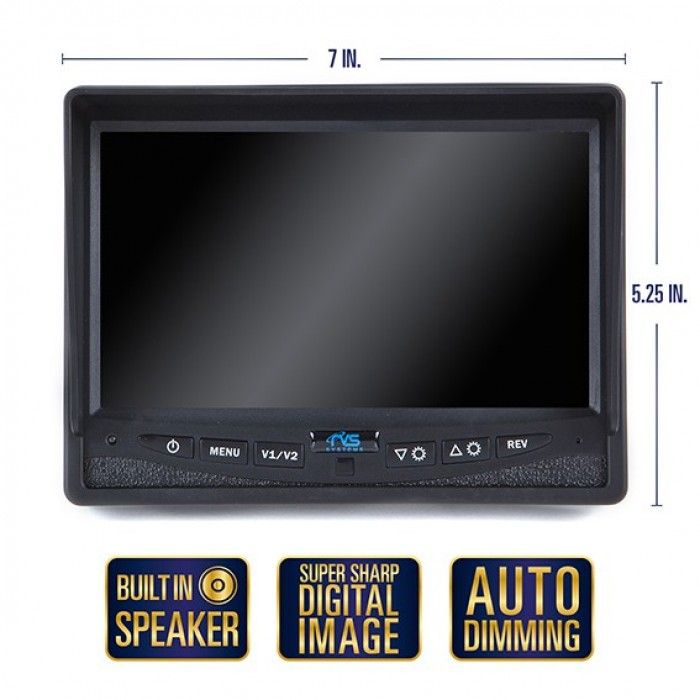

- 7" LED Digital Panel Display: Features a crystal-clear display that ensures easy viewing in any light conditions, keeping you aware while maneuvering.
- Infra-Red Night Vision: Waterproof cameras equipped with infrared illuminators allow for clear visibility in total darkness, ensuring safety at all times.
- Optional Quad View Upgrade: This feature allows connecting up to four cameras for an expanded view, enhancing overall safety and awareness.
- Built-in Mic and Speaker: Facilitates audio feedback, enabling you to hear what is behind you for added safety when reversing.
RVS Systems RVS-7706135-01 Detailed Camera Specifications
| Camera Type | 100% Weatherproof CCD Cameras |
| Monitor Size | 7" LED Digital Panel |
| Camera Resolution | 620 TVL |
| Infra-Red Distance | 50-foot Night Vision |
| Cable Lengths | 66' and 33' |
| Multiplexer | 3 Channel Multiplexer with Aircraft Grade Connectors |
| Durability Rating | IP69K Weatherproof, 20G Vibration Rating |
| Microphone | Integrated for audio feedback |
SKU  | RVS-7706135-01 |
|---|---|
| Features | Auto Gain Control, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 620 TVL |
| Lens Type | Fixed |
| Lens Size | 2.1mm, 2.5mm |
| Infrared Distance | 0~60 Feet |
| Durability | Weather Resistant |
| Gamma Correction | r=0.45 to 1.0 |
| Image Device | 1/43" Sharp® Color CCD , 1/4" Sharp® Color CCD |
| IR Distance | Backup Camera: 15.24m/50ft, Side Camera: 9.14m/30ft |
| Minimum Scene Illumination | 0 Lux (IR On) |
| Operating Temperature | -40°C ~ +70°C / RH 95% Max |
| Power Consumption | 5W |
| S/N Ratio | More than 48dB |
| Signal System | NTSC/PAL |
| Video Output | 1Vp-p 75 Ω |
| Weatherproof | IP69K |
| Synchronization | Internal Synchronization |
| Angle of View | 130° , 120° |
| Auto Gain Control | Yes |
