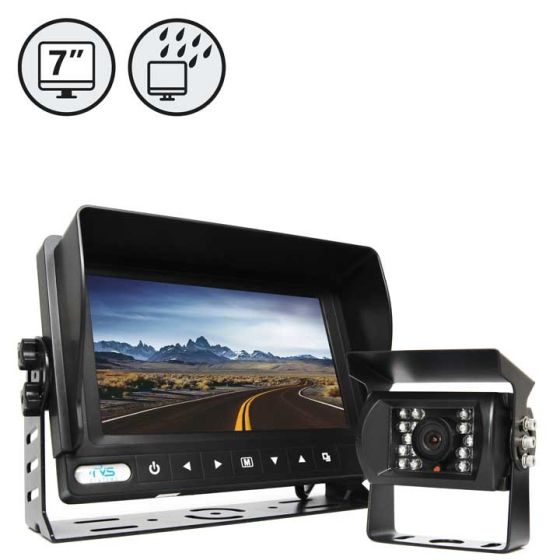

RVS Systems RVS-7706131 620 TVL Backup Camera With Waterproof Monitor, 66' Cable

SKU
RVS-7706131
Model No
RVS-7706131
$384.73
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 7" TFT LCD Digital Color Display
  • Completely Waterproof System - IP69K
  • 130° Ultra-Wide Viewing Angle
  • 18 Infra-red Lights - 50ft of Night Vision
  • 2 Port Harness With Trigger Wires - Supports Additional Camera

The RVS-7706131 from RVS Systems is a state-of-the-art backup camera system designed for durability and clarity. Featuring a fully waterproof monitor and an advanced 620 TVL camera, this system excels in any environment, even under heavy rain. With superior night vision capabilities, a robust build quality, and the convenience of additional camera support, the RVS-7706131 provides unmatched safety and ease of use when reversing your vehicle.

RVS Systems RVS-7706131 Backup Camera Features

  • 7" TFT LCD Digital Color Display: Offers vibrant and clear visuals for enhanced visibility while reversing.
  • Completely Waterproof System - IP69K: Both camera and monitor are weatherproofed to withstand the harshest conditions.
  • 130° Ultra-Wide Viewing Angle: Expands field of vision to minimize blind spots and improve safety.
  • 18 Infra-red Lights - 50ft of Night Vision: Provides excellent visibility even in complete darkness, ensuring safety at all times.
  • 2 Port Harness With Trigger Wires - Supports Additional Camera: Conveniently allows for the installation of an extra camera for more coverage.

RVS Systems RVS-7706131 Detailed Specifications

Camera Resolution620 TVL
Waterproof RatingIP69K
Viewing Angle130°
Infra-red Lights18 lights for 50ft night vision
Shock Resistance20G vibration, 100G impact rating
Cable Length66 feet
Monitor Size7 inches
Power Harness2-port with trigger wires
SKU  RVS-7706131
Features  Auto Gain Control, Weather Resistant
Manufacturer  RVS Systems
Camera Signal     Analog
Resolution    620 TVL
Sensor Option    1/3" CCD
Lens Type    Fixed
Lens Size    2.5mm
Infrared Distance    0~60 Feet
Durability    Weather Resistant
Gamma Correction  r=0.45 to 1.0
Image Device    1/3" Sharp® Color CCD
IR Distance  15.24m/50ft
Minimum Scene Illumination  0 Lux (IR On)
Operating Temperature    -40°C ~ +70°C / RH 95% Max
Dimensions (W x H)  3.25" (H) x 3" (L) x 1.5" (D)
S/N Ratio  More than 48dB
Signal System    NTSC/PAL
Video Output    1Vp-p 75 Ω
Weatherproof    IP69K
Synchronization  Internal Synchronization
Angle of View    130°
Auto Gain Control    Yes
