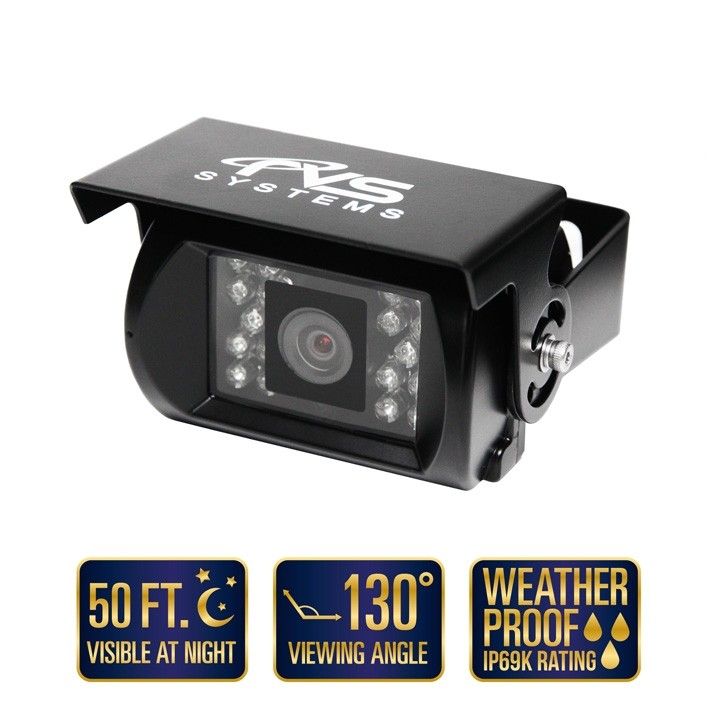

RVS Systems RVS-770613-NM-02 620 TVL Backup Camera, 7" Display, 33' Cable

SKU
RVS-770613-NM-02
Model No
RVS-770613-NM-02
$446.99
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 7" LED digital color display
  • 130° Ultra-Wide viewing angle
  • 18 Infra-red lights - 50ft of night vision
  • Completely waterproof camera - IP69K
  • Built-in mic and speakers for audio

This commercial grade backup camera is the clearest and greatest camera available on the market today. It boasts a 410,000 pixel 2.5 mm lens with 18 infra-red illuminators which enable you to see in total darkness and a built-in microphone which enables you to hear what is behind you. The backup camera is completely weatherproof with an IP69K rating, strong and reliable, shock resistant with a 20G vibration and 100G impact rating (highest in the industry) and the camera comes with 7" LED digital color display, 33' cable.

RVS Systems RVS-770613-NM-02 Camera Features

  • Display: 7" LED digital color display for clear visuals during operation.
  • Viewing Angle: 130° ultra-wide viewing angle offers maximum coverage behind your vehicle.
  • Night Vision: 18 Infra-red lights provide up to 50ft of night vision for enhanced safety in low light.
  • Waterproof Rating: Completely waterproof camera with IP69K certification ensures durability in harsh conditions.
  • Audio Capabilities: Built-in microphone and speakers enable you to hear sounds from behind your vehicle.

RVS Systems RVS-770613-NM-02 Detailed Specifications

Camera Resolution620 TVL
Lens Type2.5 mm
Infra-red Illuminators18
Night Vision Distance50ft
Waterproof RatingIP69K
Vibration Resistance20G
Impact Resistance100G
Included Cable Length33'
SKU  RVS-770613-NM-02
Features  Auto Gain Control, Weather Resistant
Manufacturer  RVS Systems
Camera Signal     Analog
Resolution    620 TVL
Sensor Option    1/3" CCD
Lens Type    Fixed
Lens Size    2.5mm
Infrared Distance    0~60 Feet
Durability    Weather Resistant
Gamma Correction  R=0.45 TO 1.0
Image Device    1/3" Sharp Color CCD
IR Distance  15.24m / 50ft
Minimum Scene Illumination  0 LUX (IR ON)
Operating Humidity    RH 95% MAX
Operating Temperature    -40°C ~+70°C
S/N Ratio  More than 48dB
Video Output    1Vp.p 75 ohm
Weatherproof    IP69
Synchronization  Internal Synchronization
Angle of View    130°
IR LEDs  18 LED
Auto Gain Control    Yes
