RVS Systems RVS-770613-213-02 620 TVL Backup Camera, 9" Display, Trailer Tow Quick Connect Kit

SKU
RVS-770613-213-02
Model No
RVS-770613-213-02
$559.99
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • Trailer Tow Quick Connect Kit - for Trucks and Trailers
  • 7" LED Digital Panel Color Monitor
  • Completely Waterproof Backup Camera - IP69K
  • 130° Viewing Angle with 18 Infra-red Night Vision Lights
  • Built-In Mic on Camera and Speakers on Monitor for Audio

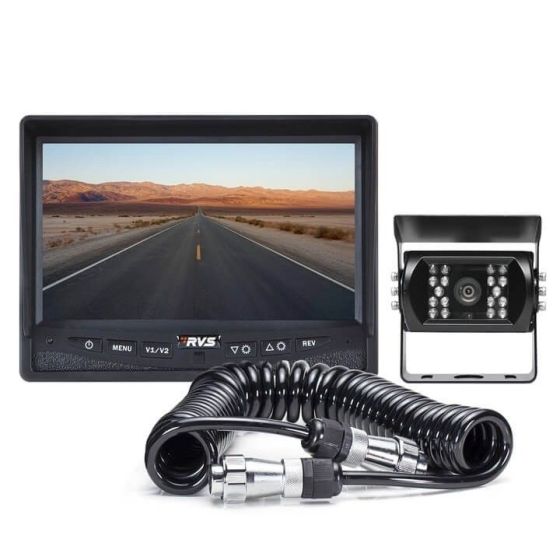

The RVS-770613-213-02 from RVS Systems is a backup camera system perfect for fifth wheel applications. This comprehensive system includes a crystal clear 9" TFT LCD digital color monitor, a 130° CCD camera with impressive 50-foot infra-red night vision, and all necessary wires, connectors, and mounts. The weatherproof camera features an IP69K rating, while the quick connect/disconnect cable enables easy setup and operation. With a robust design featuring a 20G vibration and 100G impact rating, this system guarantees reliability in any situation.

RVS Systems RVS-770613-213-02 Camera Features

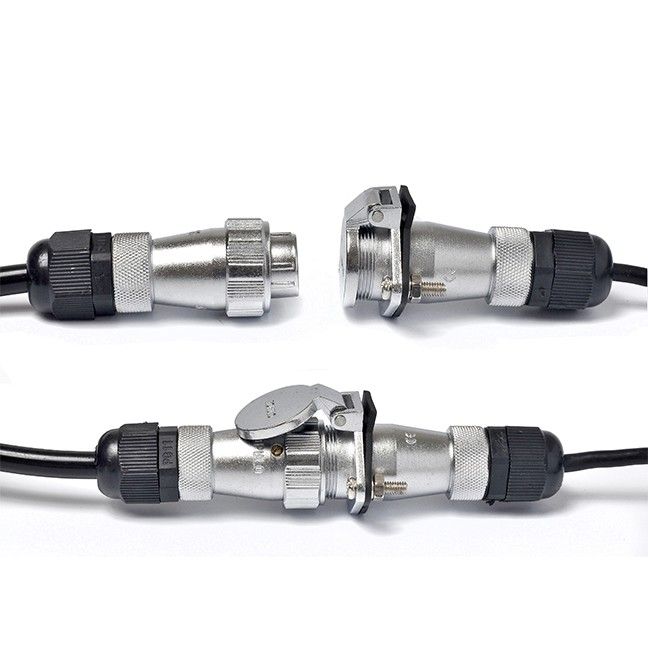

  • Trailer Tow Quick Connect Kit: Allows quick connection for easy setup between trucks and trailers.
  • 9" TFT LCD Digital Color Monitor: Provides a large display for a clearer view, enhancing safety while backing up.
  • Completely Waterproof Backup Camera: IP69K rated for reliable performance in all weather conditions.
  • 130° Viewing Angle with 18 Infra-red Night Vision Lights: Ensures visibility in low-light conditions, improving safety during nighttime use.
  • Built-In Mic on Camera and Speakers on Monitor: Provides real-time audio feedback, allowing drivers to hear what is behind them.

Detailed Specifications for RVS-770613-213-02

FeatureDetails
Camera Resolution620 TVL
Monitor Size9 inches
Monitor TypeTFT LCD Color
Camera Viewing Angle130°
Night Vision50-foot infra-red
Weather RatingIP69K
Vibration Resistance20G
Impact Resistance100G
Quick Connect Cable Length66' to camera, 26' to monitor
Included AccessoriesWires, connectors, and mounts
SKU  RVS-770613-213-02
Features  Auto Gain Control, Weather Resistant
Manufacturer  RVS Systems
Camera Signal     Analog
Resolution    620 TVL
Sensor Option    1/3" CCD
Lens Type    Fixed
Lens Size    2.5mm
Infrared Distance    0~60 Feet
Durability    Weather Resistant
Gamma Correction  r=0.45 to 1.0
Image Device    1/3" Sharp® Color CCD
IR Distance  15.24m/50ft
Minimum Scene Illumination  0 Lux (IR On)
Operating Temperature    -40°C ~ +70°C / RH 95% Max
Power Consumption  5W
S/N Ratio  More than 48dB
Video Output    1Vp-p 75 Ω
Weatherproof    IP69K
Synchronization  Internal Synchronization
Angle of View    130°
Auto Gain Control    Yes
