RVS Systems RVS-7706035-01 5" Display, 1 x Backup Camera, 66' Cable
SKU
RVS-7706035-01
Model No
RVS-7706035-01
$317.99
Product Highlights
- Heated Backup Camera for Use in Ultra Cold Climates
- 30 Infra-Red Lights for 50ft of Night Vision
- Camera is Completely Waterproof with an IP69K Rating
- 7" LED Digital Panel Color Display with Three Camera Inputs
Speak to an expert

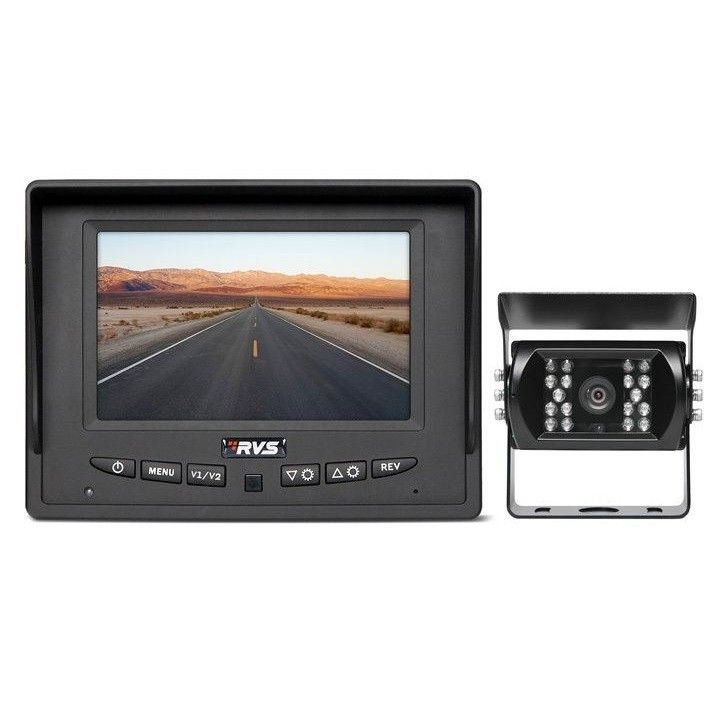

The RVS Systems RVS-7706035-01 is an advanced backup camera system featuring a compact 5" TFT LCD monitor that ensures crystal-clear visibility. It offers up to three camera connectivity, 130° viewing angle, and exceptional night vision capabilities, designed to enhance your safety while reversing. With its robust weatherproof design and high vibration resistance, this system is built to last, making it an ideal choice for any vehicle.
RVS Systems RVS-7706035-01 Camera Features

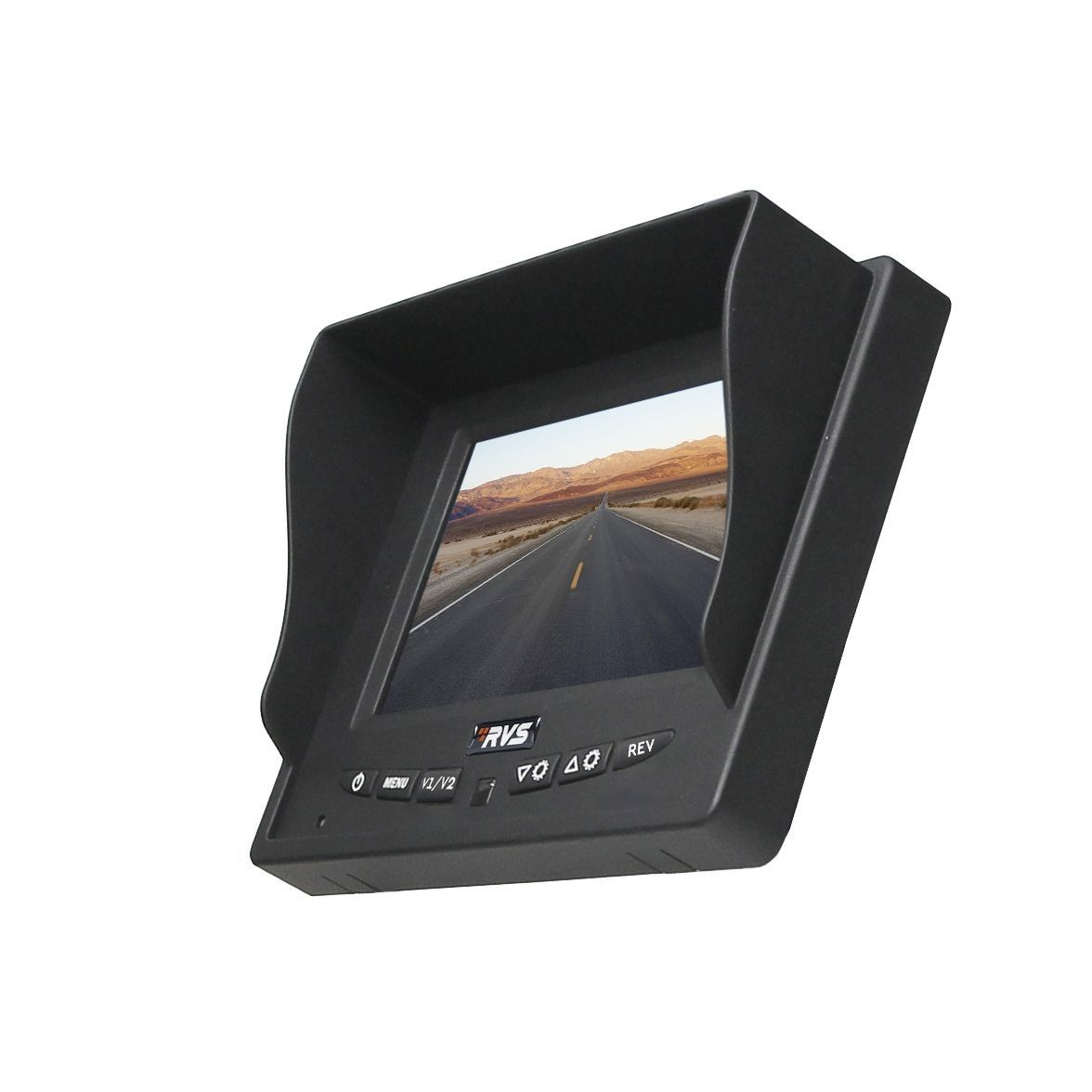

- 5" TFT LCD Digital Color Display: Provides clear visuals for easy reversing, minimizing blind spots.
- 130° Ultra Wide Viewing Angle: Expands your visibility to cover more area behind your vehicle, reducing the risk of accidents.
- 18 Infra-red Lights - 50ft of Night Vision: Ensures safety in low-light conditions, allowing you to see clearly at night.

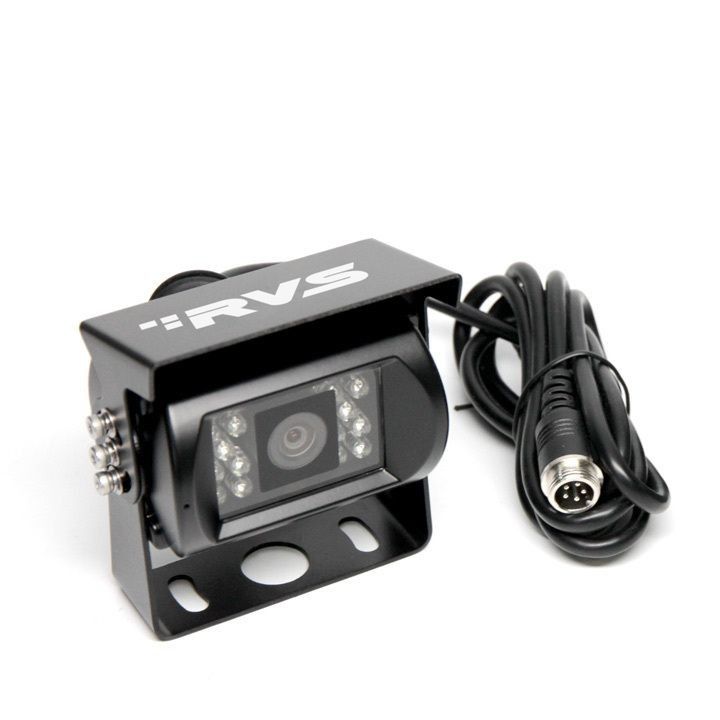

- Completely Waterproof Camera - IP69K: Protects against water and dust, making it suitable for all weather conditions.
- Built-in Mic and Speakers for Audio: Allows for additional communication and monitoring while reversing.
RVS Systems RVS-7706035-01 Detailed Specifications
| Display Size | 5 inches |
| Camera Type | 130° CCD Camera |
| Night Vision | 50 feet with 18 Infra-red Lights |
| Waterproof Rating | IP69K |
| Vibration Resistance | 20G (highest in the industry) |
| Warranty | 1 year |
| Connectivity | Up to 3 cameras |
SKU  | RVS-7706035-01 |
|---|---|
| Features | Auto Gain Control, Weather Resistant |
| Manufacturer | RVS Systems |
Resolution  | 620 TVL |
| Sensor Option | 1/3" CCD |
| Lens Type | Fixed |
| Lens Size | 2.5mm |
| Infrared Distance | 0~60 Feet |
| Durability | Weather Resistant |
| Mount Type | Ceiling, Wall |
| Voltage | 9-32vDC |
| Electronic Shutter | 1/50, 160-1/100,000sec |
| Gamma Correction | r=0.45 to 1.0 |
| Image Device | 1/3” Sharp® Color CCD |
| IR Distance | 15.24m/50ft |
| Minimum Scene Illumination | 0 Lux (IR On) |
| Operating Humidity | RH 95% Max |
| Operating Temperature | -40°C ~ +70°C |
| Dimensions (W x H) | Camera (with bracket): 3.25 (H) x 3" (L) x 1.5" (D), Monitor: 5.28" (H) x 5.91" (L) x 1" (D) |
| Video Output | 1Vp - p, 75 Ω |
| Weatherproof | IP69K |
| Angle of View | 130° |
| IR LEDs | 18 |
| Auto Gain Control | Yes |
