RVS Systems RVS-7706033-06 620 TVL Backup Camera, 5" Display, 33' and 2 x 16' Cables

SKU
RVS-7706033-06
Model No
RVS-7706033-06
$477.06
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 5" TFT LCD Digital Color Display
  • 130° Ultra-Wide Viewing Angle
  • 18 Infra-red Lights - 50ft of Night Vision
  • Completely Waterproof Camera - IP69K
  • Built-in Mic and Speakers for Audio

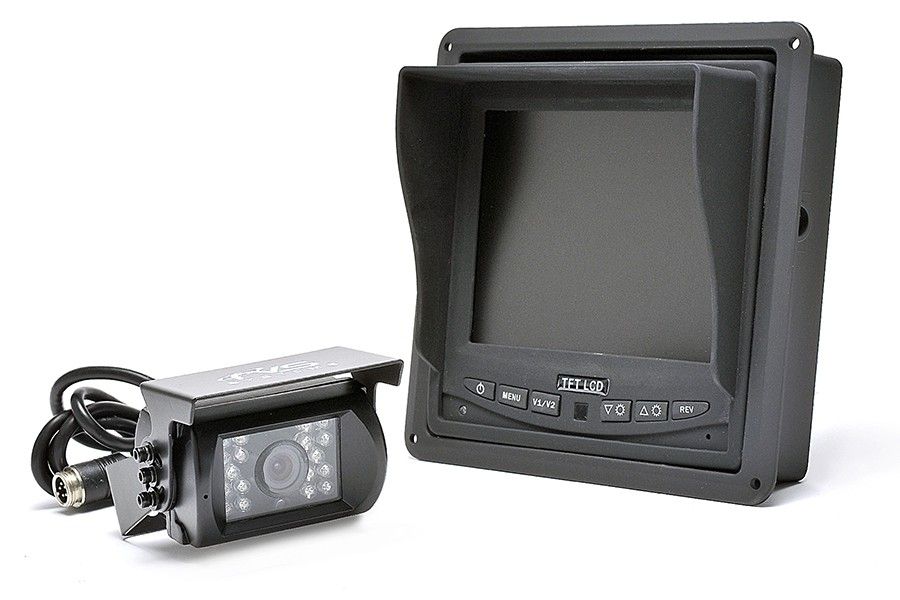

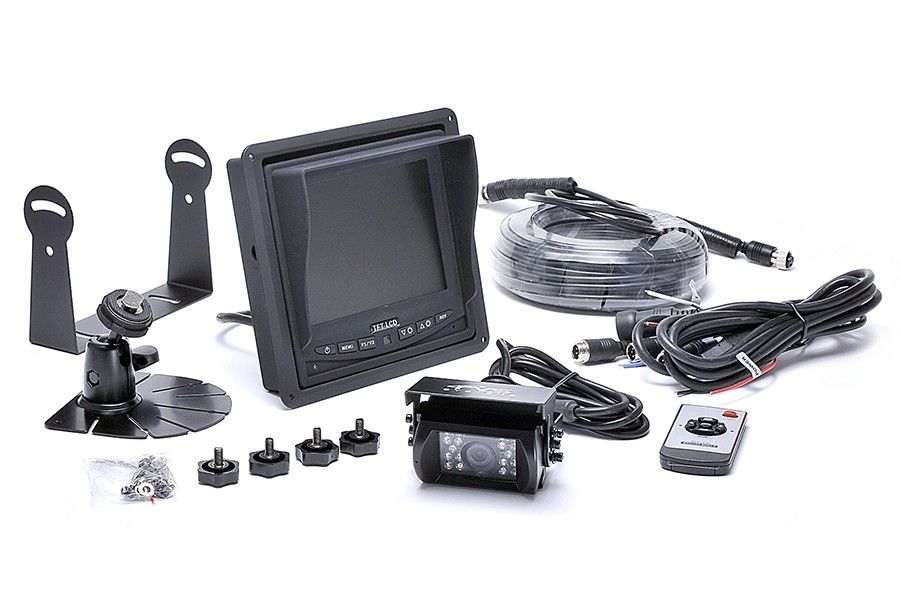

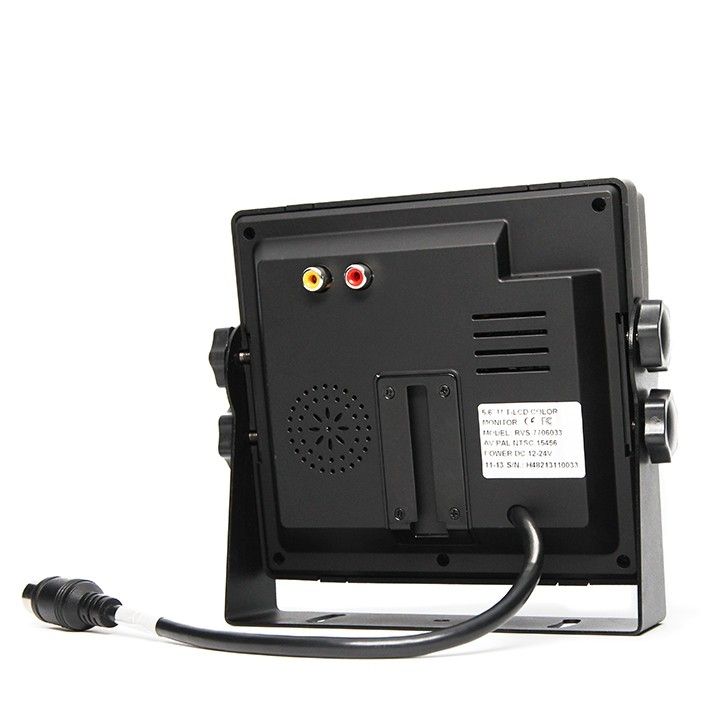

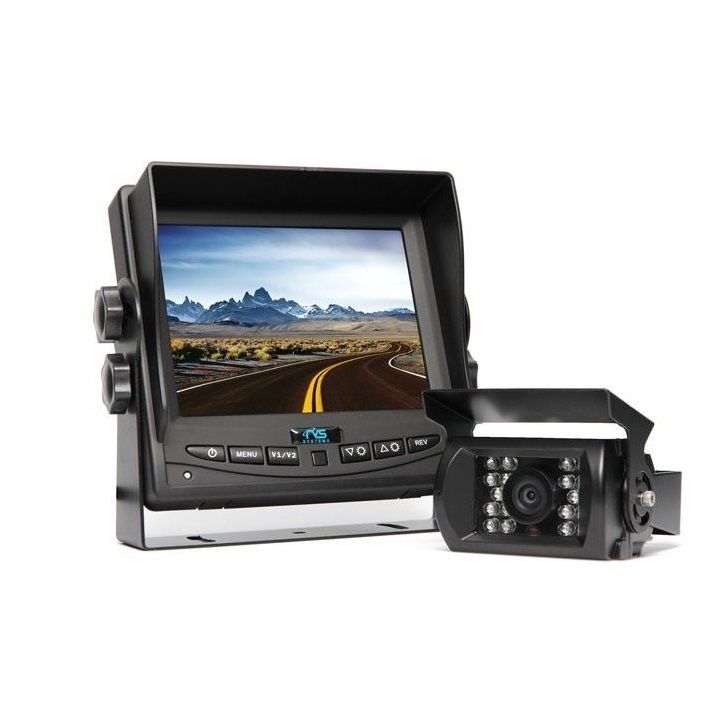

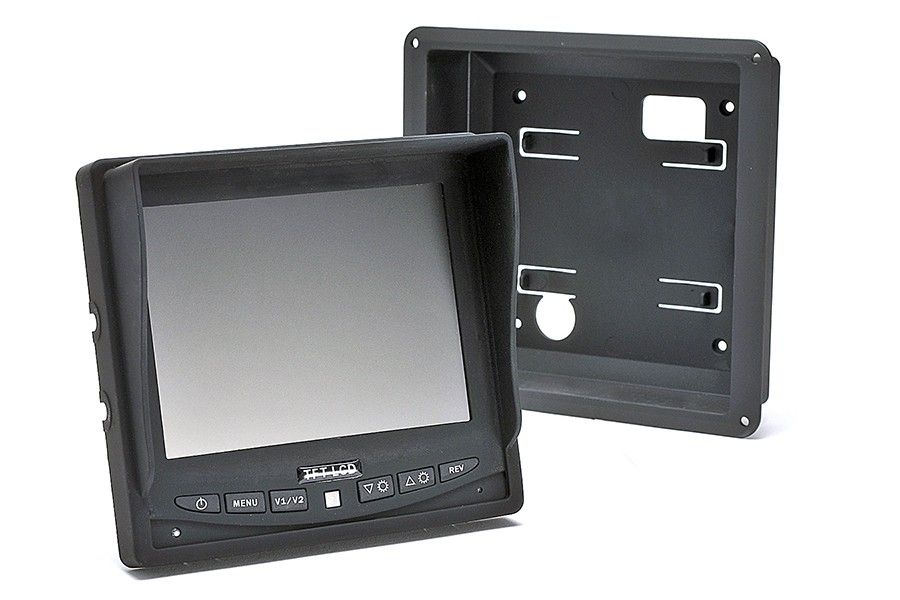

The RVS-7706033-06 from RVS Systems is a top-of-the-line backup camera system featuring a 5.6" TFT LCD digital color monitor, ensuring crystal-clear visibility with optional distance grid lines. With the ability to connect up to three cameras, this robust system includes a high-performance 130° CCD camera equipped with 50-foot infrared night vision. Engineered for durability, it boasts an IP69K weatherproof rating and an impressive shock resistance, making it perfect for any environment.

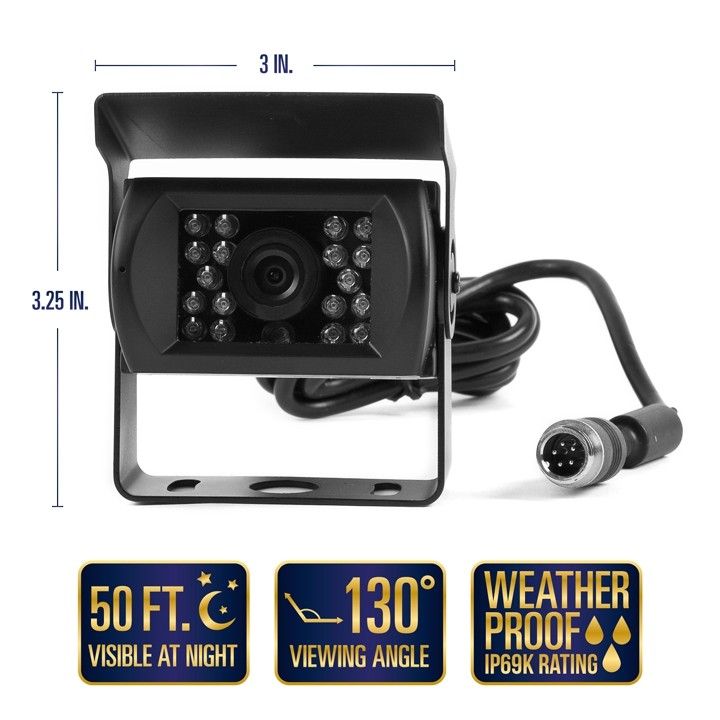

RVS Systems RVS-7706033-06 Camera Features

  • 5" TFT LCD Digital Color Display: Provides clear and vibrant images, making it easy to see obstacles and surroundings while reversing.
  • 130° Ultra-Wide Viewing Angle: Allows for a broader field of view to minimize blind spots and enhance safety.
  • 18 Infra-red Lights - 50ft of Night Vision: Ensures visibility in complete darkness, allowing users to see and detect objects behind them at night.
  • Completely Waterproof Camera - IP69K: Protects against dust and water, ensuring durability in various weather conditions.
  • Built-in Mic and Speakers for Audio: Enables users to hear sounds from behind, providing additional safety while reversing.

RVS Systems RVS-7706033-06 Detailed Camera Specifications

Display Size5.6 inch TFT LCD
Camera Type130° CCD with Infra-red
Night Vision DistanceUp to 50 feet
Waterproof RatingIP69K
Shock Resistance20G vibration, 100G impact
Angle of View130°
Audio FeaturesBuilt-in microphone and speakers
Included Cables33' and 66' Heavy Duty
SKU  RVS-7706033-06
Features  Auto Gain Control, Weather Resistant
Manufacturer  RVS Systems
Camera Signal     Analog
Resolution    620 TVL
Sensor Option    1/3" CCD
Lens Type    Fixed
Lens Size    2.5mm
Infrared Distance    0~60 Feet
Durability    Weather Resistant
Gamma Correction  r=0.45 to 1.0
Image Device    1/3" Sharp® Color CCD
IR Distance  15.24m/50ft
Minimum Scene Illumination  0 Lux (IR On)
Operating Temperature    -40°C ~ +70°C / RH 95% Max
Power Consumption  5W
S/N Ratio  More than 48dB
Video Output    1Vp-p 75 Ω
Weatherproof    IP69K
Synchronization  Internal Synchronization
Angle of View    130°
Auto Gain Control    Yes
