RVS Systems RVS-7706033-05 620 TVL Backup Camera, 5" Display, 66' and 2 x 33' Cables
SKU
RVS-7706033-05
Model No
RVS-7706033-05
$477.06
Product Highlights

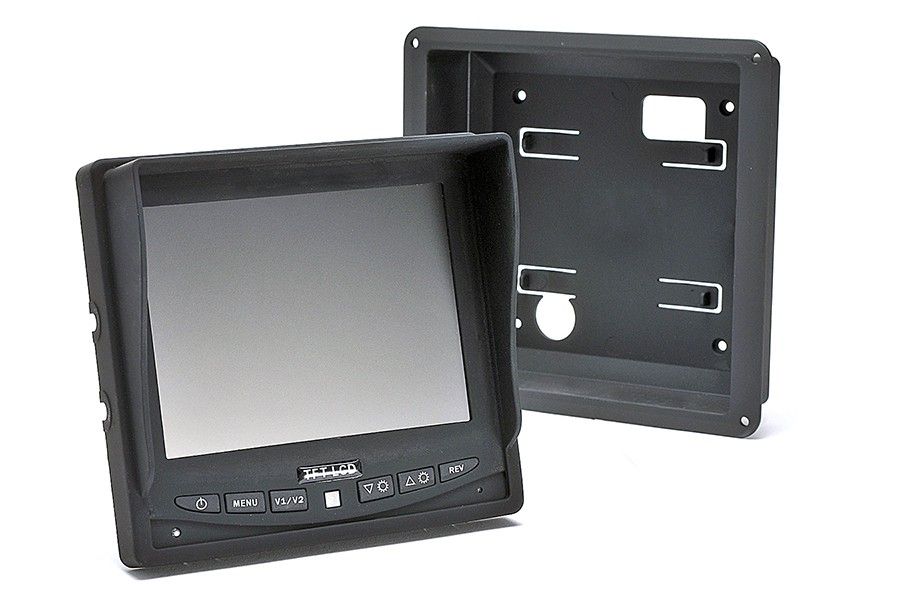

- 5" TFT LCD Digital Color Display
- 130° Ultra-Wide Viewing Angle
- 18 Infra-red Lights - 50ft of Night Vision
- Completely Waterproof Camera - IP69K
- Built-in Mic and Speakers for Audio
Speak to an expert
RVS Systems RVS-7706033-05 Backup Camera Features

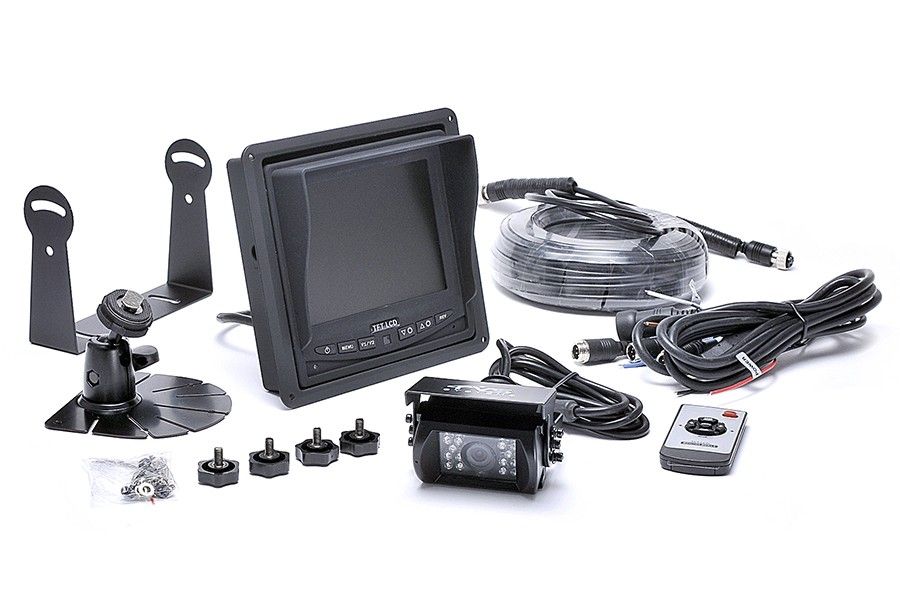

The RVS-7706033-05 from RVS Systems is a comprehensive backup camera system, combining a crystal clear 5.6" TFT LCD display with the capability to connect up to three cameras seamlessly. With a robust 130° CCD camera featuring 50-foot infrared night vision, this system ensures visibility in all conditions while maintaining exceptional durability with an IP69K rating for waterproofing. Designed for commercial-grade reliability, it also includes essential cables and connectors for easy setup.
Key Features
- 5" TFT LCD Digital Color Display: Provides clear imagery for confident reversing.
- 130° Ultra-Wide Viewing Angle: Expands your field of view, minimizing blind spots.
- 18 Infra-red Lights - 50ft of Night Vision: Enables visibility in total darkness, perfect for night-time use.
- Completely Waterproof Camera - IP69K: Ensures functionality in various weather conditions.
- Built-in Mic and Speakers for Audio: Allows for auditory awareness of surroundings while reversing.
Detailed Specifications of RVS Systems RVS-7706033-05
| Display Size | 5.6" |
| Camera Type | 130° CCD Backup Camera |
| Image Resolution | 410,000 pixels |
| Night Vision | 50-foot infrared capability |
| Waterproof Rating | IP69K |
| Vibration Rating | 20G |
| Impact Rating | 100G |
| Included Cable Length | 66' and 2 x 33' |
| Microphone | Built-in |
SKU  | RVS-7706033-05 |
|---|---|
| Features | Auto Gain Control, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 620 TVL |
| Sensor Option | 1/3" CCD |
| Lens Type | Fixed |
| Lens Size | 2.5mm |
| Infrared Distance | 0~60 Feet |
| Durability | Weather Resistant |
| Gamma Correction | r=0.45 to 1.0 |
| Image Device | 1/3" Sharp® Color CCD |
| IR Distance | 15.24m/50ft |
| Minimum Scene Illumination | 0 Lux (IR On) |
| Operating Temperature | -40°C ~ +70°C / RH 95% Max |
| Power Consumption | 5W |
| S/N Ratio | More than 48dB |
| Video Output | 1Vp-p 75 Ω |
| Weatherproof | IP69K |
| Synchronization | Internal Synchronization |
| Angle of View | 130° |
| Auto Gain Control | Yes |
