RVS Systems RVS-7706033-04 620 TVL Backup Camera, 5" Display, 2 x 33' Cables

SKU
RVS-7706033-04
Model No
RVS-7706033-04
$423.21
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 5" TFT LCD Digital Color Display
  • 130° Ultra-Wide Viewing Angle
  • 18 Infra-red Lights - 50ft of Night Vision
  • Completely Waterproof Camera - IP69K
  • Built-in Mic and Speakers for Audio

RVS Systems RVS-7706033-04 Backup Camera Features

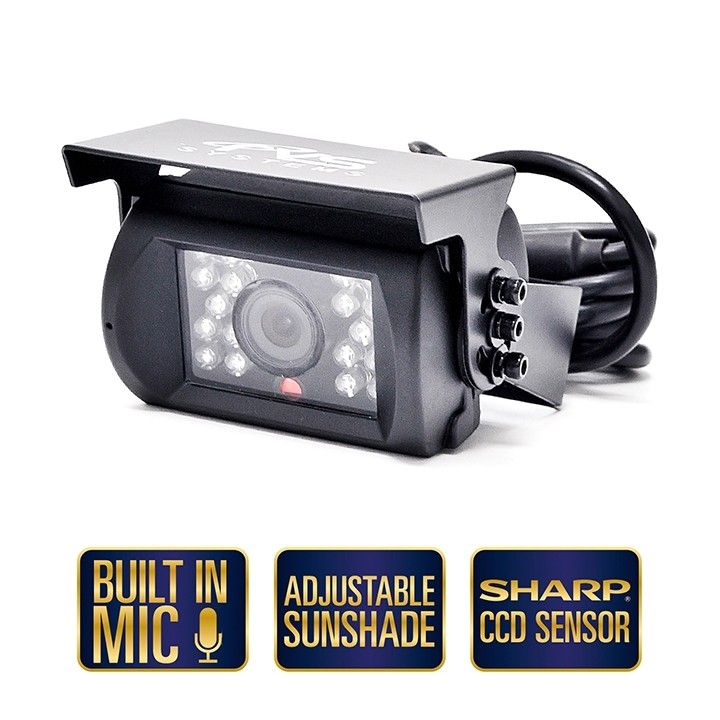

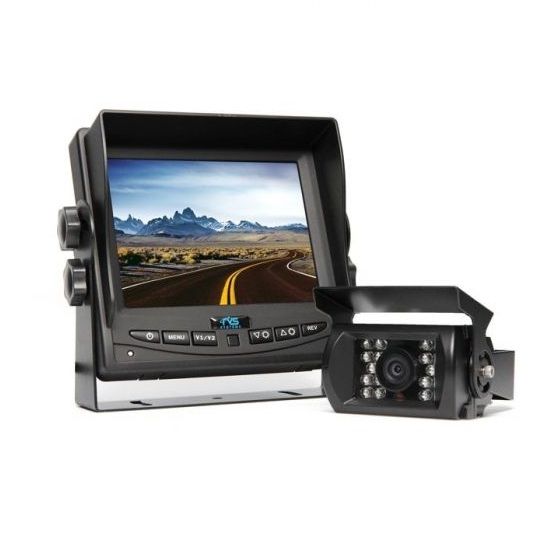

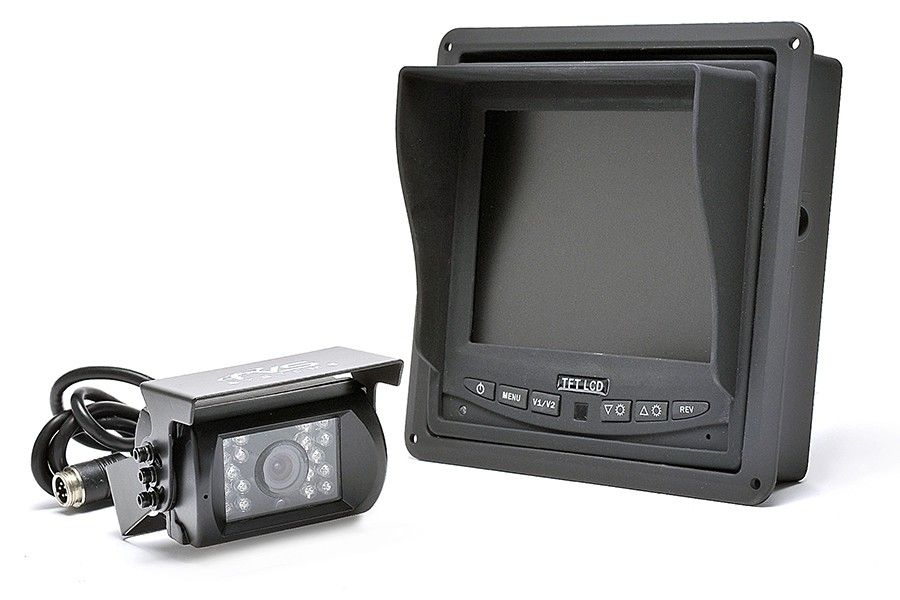

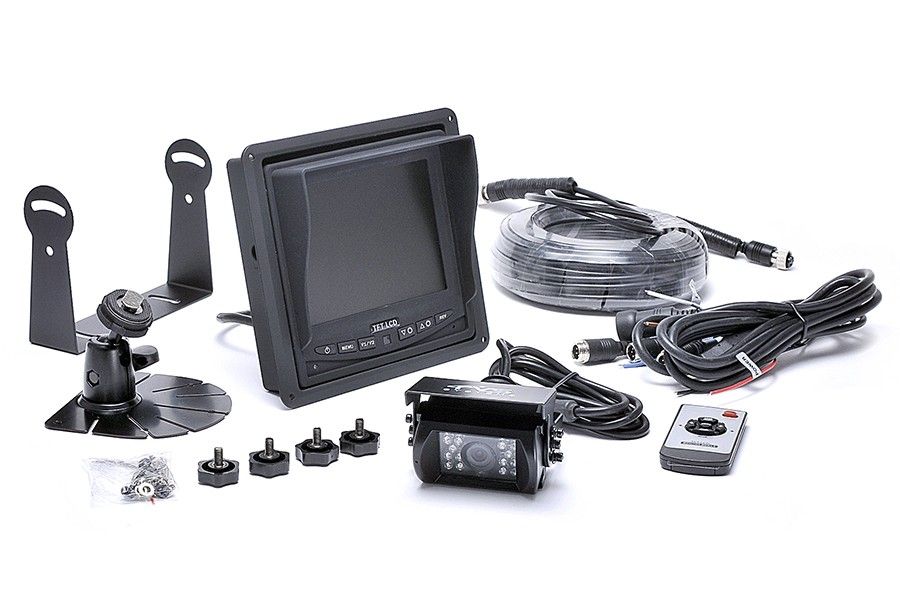

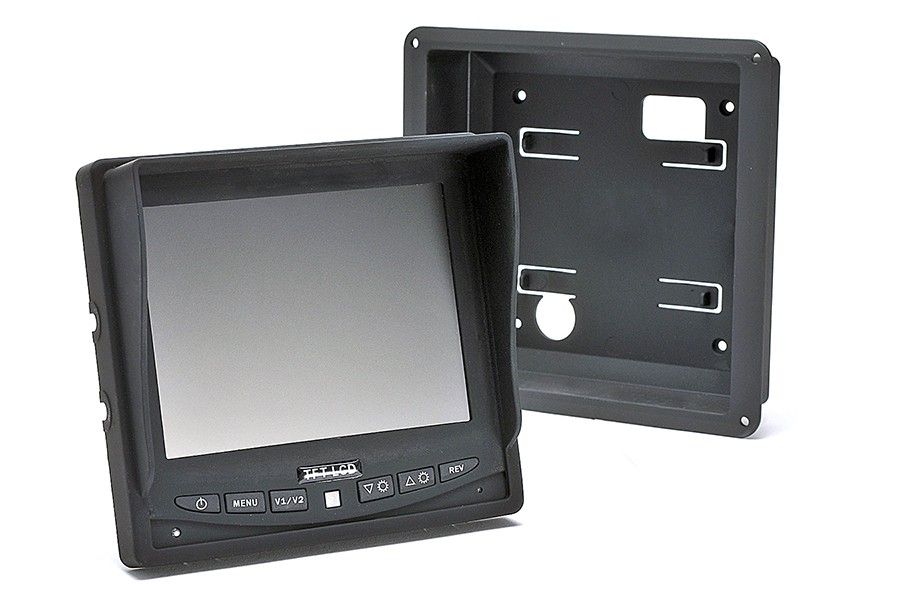

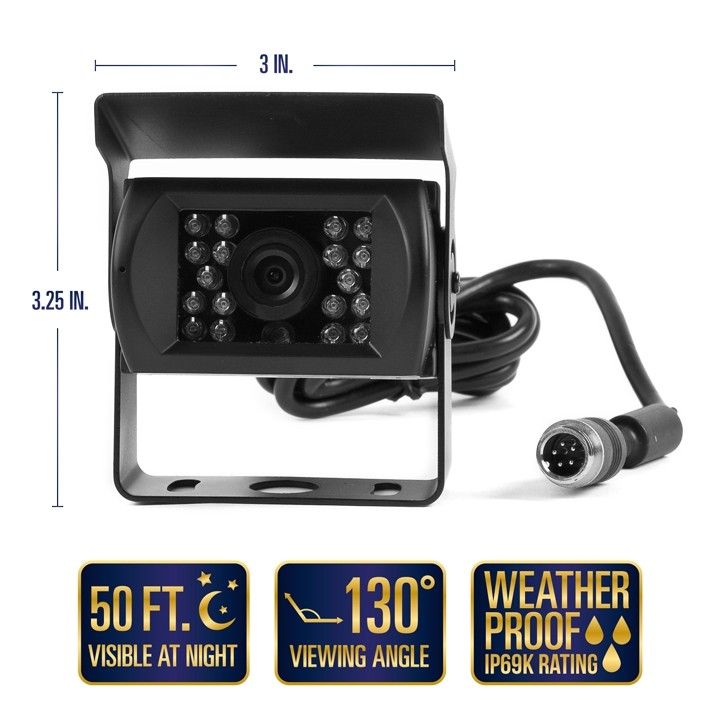

The RVS-7706033-04 from RVS Systems is a backup camera system complete with a crystal clear 5.6" TFT LCD digital color monitor, featuring optional distance grid lines and the capability to connect up to 3 cameras with automatic system switch. This system includes one 130° CCD camera with 50-foot infra-red night vision and all necessary cables, connectors, and mounts. The rearview camera is fully weatherproof with an IP69K rating, ensuring durability and reliability, shock resistance with a 20G vibration rating (highest in the industry), and advanced night vision capabilities.

Features

  • 5" TFT LCD Digital Color Display: Offers a clear, vibrant viewing experience for safe reversing.
  • 130° Ultra-Wide Viewing Angle: Provides a broad field of view to reduce blind spots while backing up.
  • 18 Infra-red Lights - 50ft of Night Vision: Enables visibility in total darkness, enhancing safety during night-time operation.
  • Completely Waterproof Camera - IP69K: Protects against dust and water ingress, ensuring reliable performance in harsh conditions.
  • Built-in Mic and Speakers for Audio: Allows you to hear sounds from behind your vehicle, aiding in safer maneuvers.

RVS Systems RVS-7706033-04 Detailed Specifications

Camera Resolution620 TVL
Display Size5.6 inches

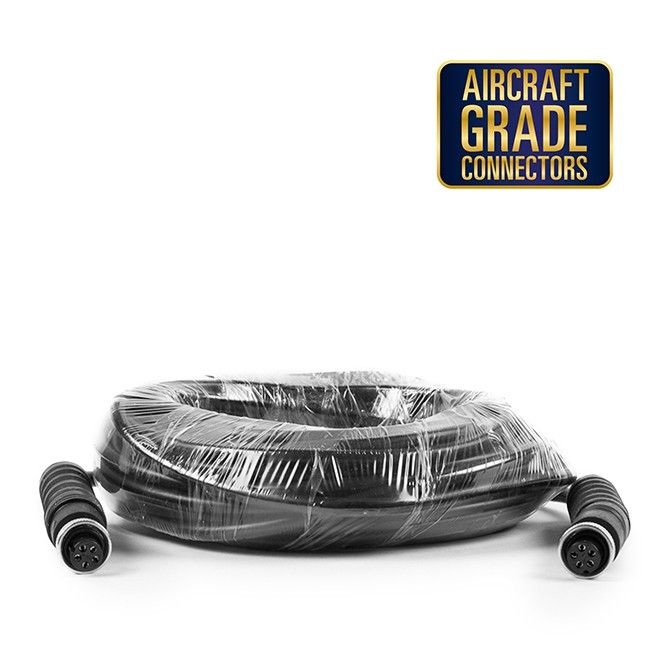

Cable Length2 x 33 feet
Viewing Angle130°
Night Vision18 infrared lights for 50ft visibility
Weatherproof RatingIP69K
Shock Resistance20G vibration rating
Impact Rating100G impact rating
MicrophoneYes
SKU  RVS-7706033-04
Features  Auto Gain Control, Weather Resistant
Manufacturer  RVS Systems
Camera Signal     Analog
Resolution    620 TVL
Sensor Option    1/3" CCD
Lens Type    Fixed
Lens Size    2.5mm
Infrared Distance    0~60 Feet
Durability    Weather Resistant
Gamma Correction  r=0.45 to 1.0
Image Device    1/3" Sharp® Color CCD
IR Distance  15.24m/50ft
Minimum Scene Illumination  0 Lux (IR On)
Operating Temperature    -40°C ~ +70°C / RH 95% Max
Power Consumption  5W
S/N Ratio  More than 48dB
Video Output    1Vp-p 75 Ω
Weatherproof    IP69K
Synchronization  Internal Synchronization
Angle of View    130°
Auto Gain Control    Yes
