RVS Systems RVS-7706033-03 620 TVL Backup Camera, 5" Display, 2 x 66' Cables

SKU
RVS-7706033-03
Model No
RVS-7706033-03
$423.21
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights

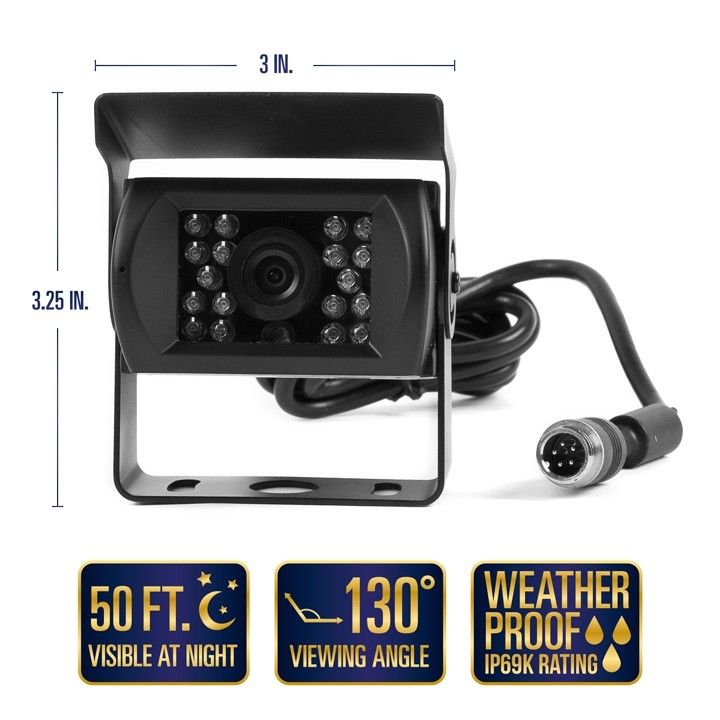

  • 5" TFT LCD Digital Color Display
  • 130° Ultra-Wide Viewing Angle
  • 18 Infra-red Lights - 50ft of Night Vision
  • Completely Waterproof Camera - IP69K
  • Built-in Mic and Speakers for Audio

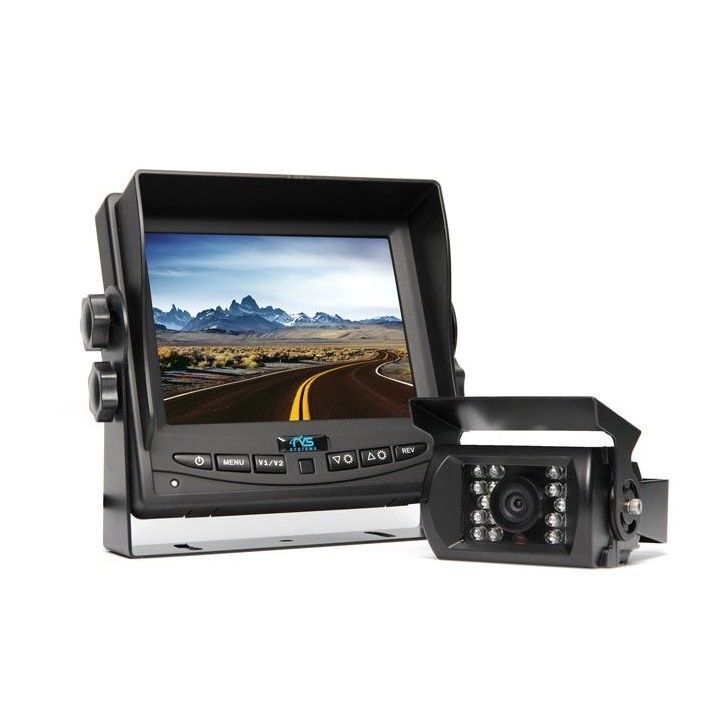

The RVS-7706033-03 from RVS Systems is a state-of-the-art backup camera system that enhances safety and convenience while reversing. It includes a crystal clear 5.6" TFT LCD monitor with optional distance grid lines and supports up to three cameras, ensuring comprehensive coverage. The system features an ultra-wide viewing angle and impressive night vision capabilities, making it an essential tool for both personal and commercial use. With its rugged, weatherproof construction and industry-leading ratings for vibration and impact resistance, this backup camera system is designed for reliability in demanding environments.

RVS Systems RVS-7706033-03 Camera Features

  • 5" TFT LCD Digital Display: Vibrant colors and clear visibility enhance your reversing experience.
  • 130° Ultra-Wide Viewing Angle: Increased field of view minimizes blind spots and improves safety.
  • 18 Infra-red Lights for Night Vision: See up to 50 feet in total darkness, ensuring safety at all times.
  • Completely Waterproof Camera - IP69K: Designed to withstand harsh weather conditions, providing durability and reliability.

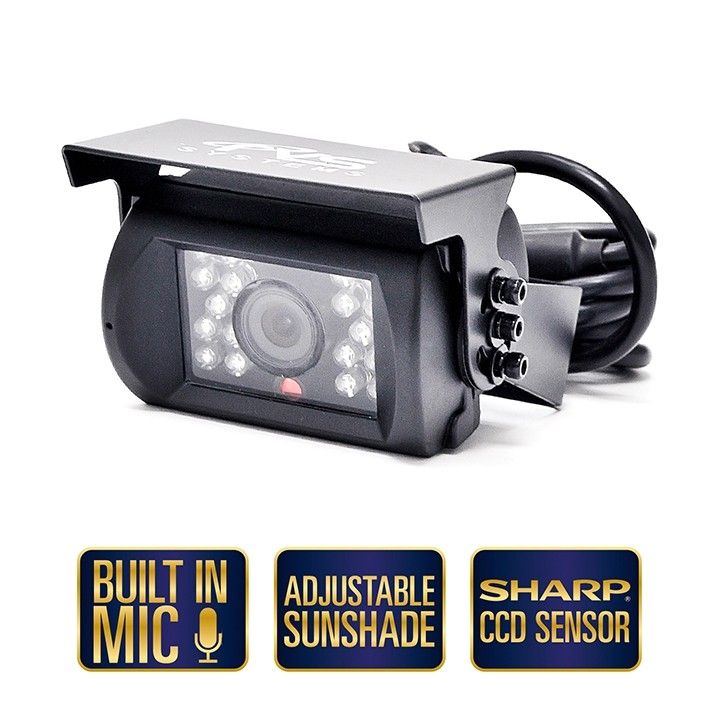

  • Built-in Microphone: Hear sounds from behind you for added security while reversing.

RVS Systems RVS-7706033-03 Detailed Specifications

Display5.6" TFT LCD Digital Color Monitor
Camera Resolution620 TVL
Viewing Angle130°
Night Vision50 feet using 18 Infra-red Lights
Weatherproof RatingIP69K Waterproof
Vibration Rating20G (highest in industry)
Impact Rating100G (highest in industry)
Connection TypeDouble-sided Female Air-Craft Grade Connection
Included Cables2 x 66' Cables
SKU  RVS-7706033-03
Features  Auto Gain Control, Weather Resistant
Manufacturer  RVS Systems
Camera Signal     Analog
Resolution    620 TVL
Sensor Option    1/3" CCD
Lens Type    Fixed
Lens Size    2.5mm
Infrared Distance    0~60 Feet
Durability    Weather Resistant
Gamma Correction  r=0.45 to 1.0
Image Device    1/3" Sharp® Color CCD
IR Distance  15.24m/50ft
Minimum Scene Illumination  0 Lux (IR On)
Operating Temperature    -40°C ~ +70°C / RH 95% Max
Power Consumption  5W
S/N Ratio  More than 48dB
Video Output    1Vp-p 75 Ω
Weatherproof    IP69K
Synchronization  Internal Synchronization
Angle of View    130°
Auto Gain Control    Yes
