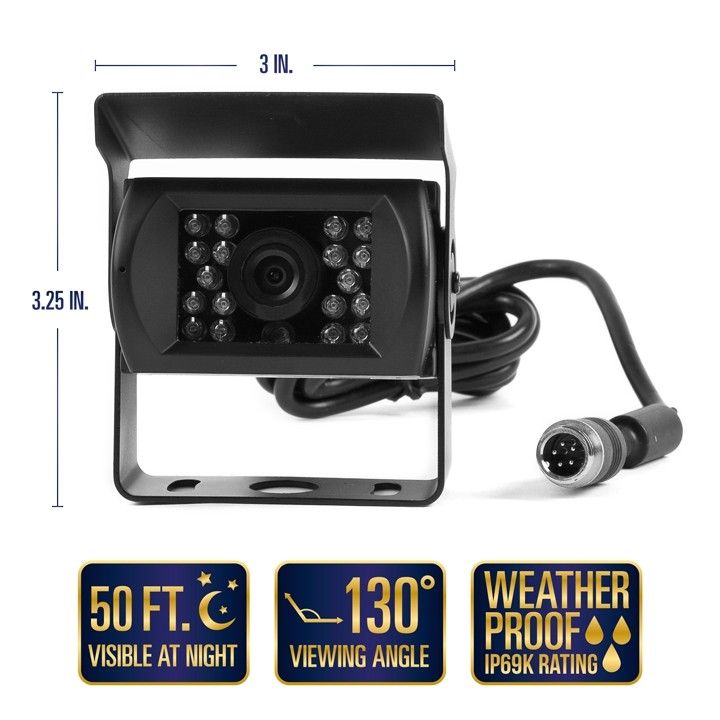

RVS Systems RVS-7706033-01 620 TVL Backup Camera, 5" Display, 66' Cable
SKU
RVS-7706033-01
Model No
RVS-7706033-01
$385.00
Product Highlights
- 5" TFT LCD Digital Color Display
- 130° Ultra Wide Viewing Angle
- 18 Infra-red Lights - 50ft of Night Vision
- Completely Waterproof Camera - IP69K
- Built-in Mic and Speakers for Audio
Speak to an expert
The RVS-7706033-01 from RVS Systems is a top-tier backup camera system designed for safety and convenience. It features a vibrant 5.6" TFT LCD monitor, excellent night vision capabilities, and a comprehensive waterproof design, making it ideal for any driving conditions. With the ability to connect up to three cameras and a robust construction, it ensures reliability and clarity when reversing, enhancing your overall driving experience.
RVS Systems RVS-7706033-01 Camera Features
- Display: 5.6" TFT LCD Digital Color Display - Offers a clear and vibrant visual for easy viewing.
- Viewing Angle: 130° Ultra Wide Viewing Angle - Provides a broader perspective for enhanced safety during reversals.
- Night Vision: 18 Infra-red Lights - 50ft of Night Vision - Enables visibility in total darkness, ensuring safety at all times.
- Waterproof Rating: Completely Waterproof Camera - IP69K - Ensures durability and functionality in adverse weather conditions.
- Audio Features: Built-in Mic and Speakers for Audio - Allows you to hear audio input from behind the vehicle, enhancing your awareness.
RVS Systems RVS-7706033-01 Detailed Camera Specifications
| Feature | Details |
|---|---|
| Model | RVS-7706033-01 |
| Monitor Size | 5.6 inches TFT LCD |
| Camera Resolution | 620 TVL |
| Night Vision Range | 50 feet with 18 Infra-red Lights |
| Viewing Angle | 130° |
| Waterproof Rating | IP69K |
| Vibration Rating | 20G (highest in the industry) |
| Impact Rating | 100G (highest in the industry) |
| Cable Length | 66 feet with Aircraft Grade Connection |
| Microphone | Yes |
SKU  | RVS-7706033-01 |
|---|---|
| Features | Auto Gain Control, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 620 TVL |
| Sensor Option | 1/3" CCD |
| Lens Type | Fixed |
| Lens Size | 2.5mm |
| Infrared Distance | 0~60 Feet |
| Durability | Weather Resistant |
| Gamma Correction | r=0.45 to 1.0 |
| Image Device | 1/3" Sharp Color CCD |
| IR Distance | 15.24m/50ft |
| Minimum Scene Illumination | 0 Lux (IR On) |
| Operating Humidity | RH 95% Max |
| Operating Temperature | -40°C ~ +70°C |
| Power Consumption | 5W |
| S/N Ratio | More than 48dB |
| Video Output | 1Vp-p 75 Ω |
| Weatherproof | IP69 |
| Synchronization | Internal Synchronization |
| Angle of View | 130° |
| IR LEDs | 18 |
| Auto Gain Control | Yes |
