RVS Systems RVS-7700 620 TVL Backup Camera System with GPS Navigation, 2.5mm Lens
SKU
RVS-7700
Model No
RVS-082534
$651.00
Product Highlights
- 7" TFT LCD Digital Color Touch Display
- GPS Navigation with Sygic Maps
- 3 Channel Power Harness - Supports Additional Cameras
- 130° Ultra Wide Viewing Angle
- 18 Infra-red Lights - 50ft of Night Vision
Speak to an expert
RVS Systems RVS-7700 Backup Camera System Features

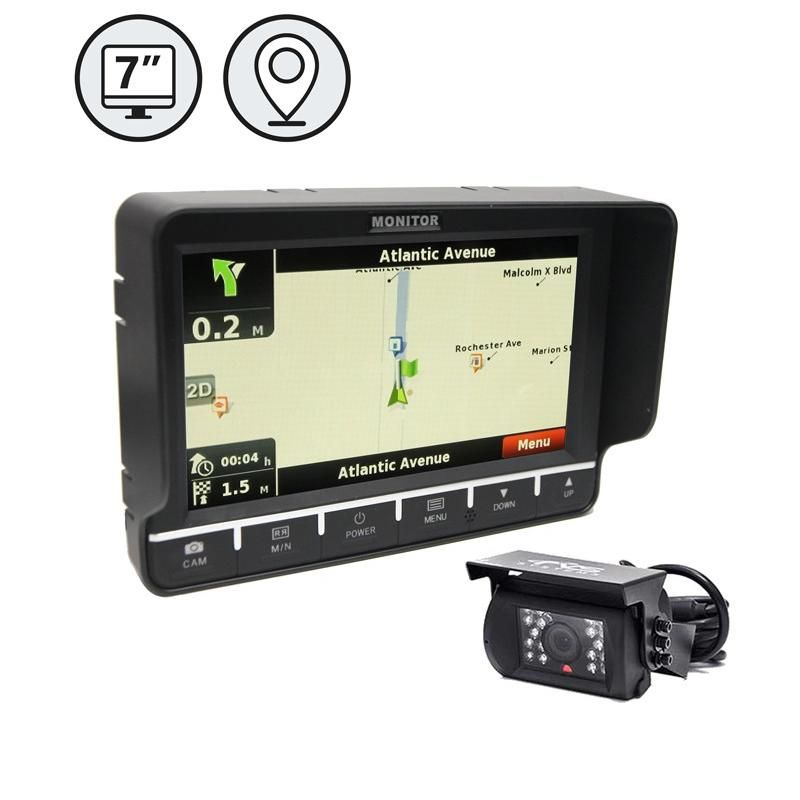

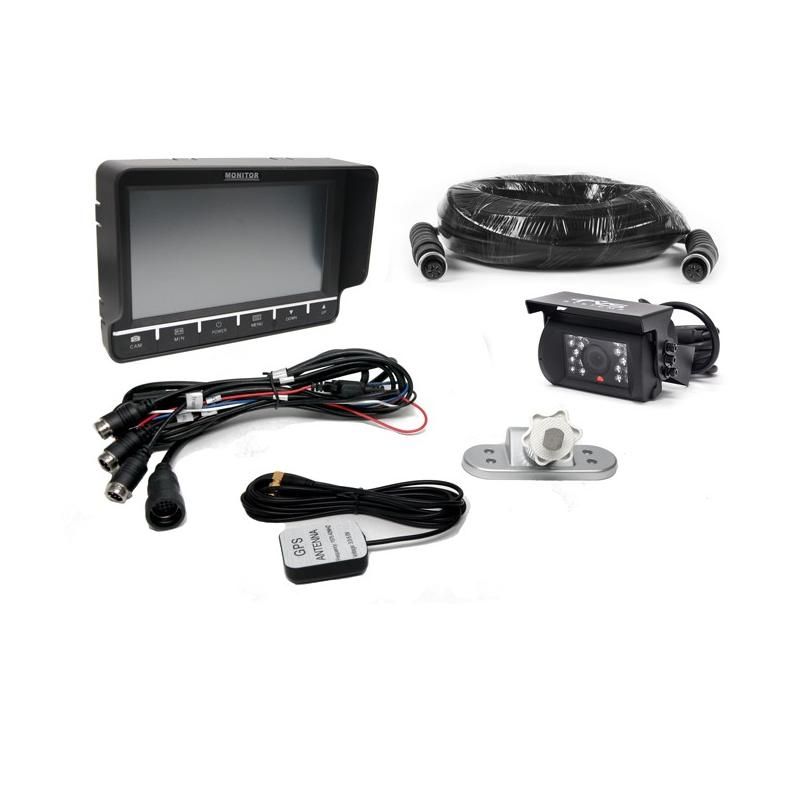

The RVS-7700 from RVS Systems is a 620 TVL Backup Camera System with GPS Navigation, 2.5mm Lens. This backup camera system really has it all! The RVS-7700 features a 7" GPS 3 channel touch-screen monitor with a high quality backup camera. The system uses Sygic Navigation GPS. This monitor includes a built-in speaker and is capable of connecting a total of 3 cameras with a separate trigger wire for each camera. Additional maps may be downloaded to this unique system. The Backup Camera is completely weatherproof with an IP69K rating and is equipped with 18 infra-red illuminators for perfect vision in total darkness. This is a one camera setup.
Features

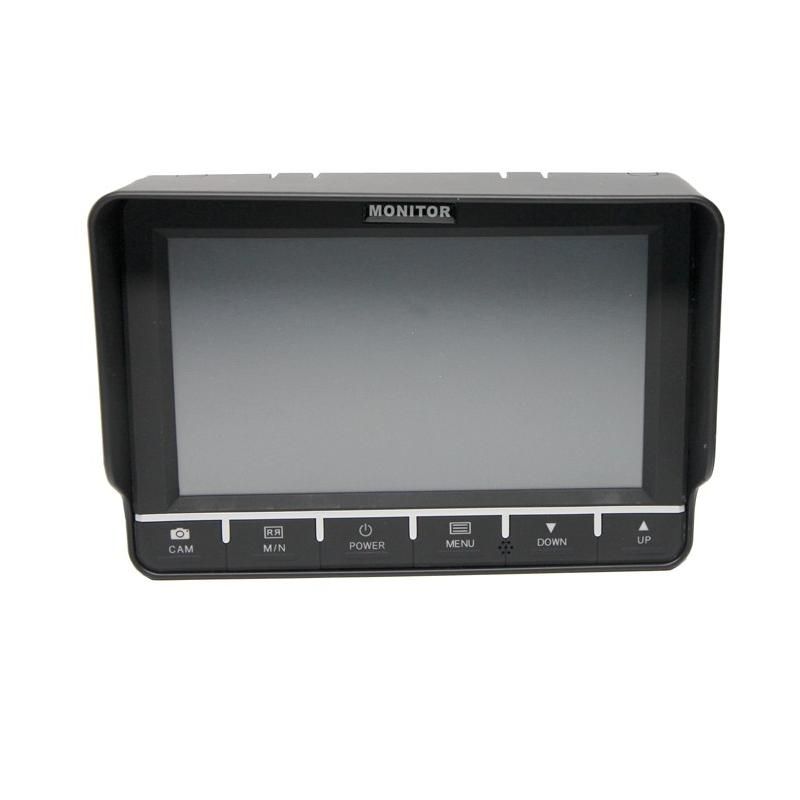

- 7" TFT LCD Digital Color Touch Display: Enables easy navigation and viewing with a large screen for clear visibility.
- GPS Navigation with Sygic Maps: Provides reliable navigation services with the ability to download additional maps.
- 3 Channel Power Harness - Supports Additional Cameras: Offers versatility to connect up to three cameras, enhancing safety and visibility.
- 130° Ultra Wide Viewing Angle: Ensures a broad view of the surroundings, reducing blind spots when reversing.
- 18 Infra-red Lights - 50ft of Night Vision: Allows for exceptional visibility even in complete darkness, increasing safety during night-time use.
RVS Systems RVS-7700 Detailed Specifications
| Product Type | Backup Camera System |
| Model | RVS-7700 |
| Camera Resolution | 620 TVL |
| Lens Type | 2.5mm |
| Monitor Size | 7 inch |
| Display Type | TFT LCD |
| Waterproof Rating | IP69K |
| Viewing Angle | 130° |
| Infra-red Lights | 18 |
| Night Vision Range | 50ft |
| Navigation System | Sygic GPS |
| Channels Supported | 3 |
SKU  | RVS-7700 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, GPS, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 620 TVL |
| Sensor Option | 1/3" CCD |
| Lens Type | Fixed |
| Lens Size | 2.5mm |
| Infrared Distance | 0~60 Feet |
| Durability | Weather Resistant |
| Mount Type | Ceiling, Wall |
| Electronic Shutter | 1/50, 160-1/100,000sec |
| Gamma Correction | r=0.45 to 1.0 |
| Image Device | 1/3" Sharp Color CCD |
| Image Pixels Total | 410,000 pixels |
| IR Distance | 15.24m/50ft |
| Minimum Scene Illumination | 0 Lux (IR On) |
| Operating Humidity | RH 95% Max |
| Operating Temperature | -40°C ~ +70°C |

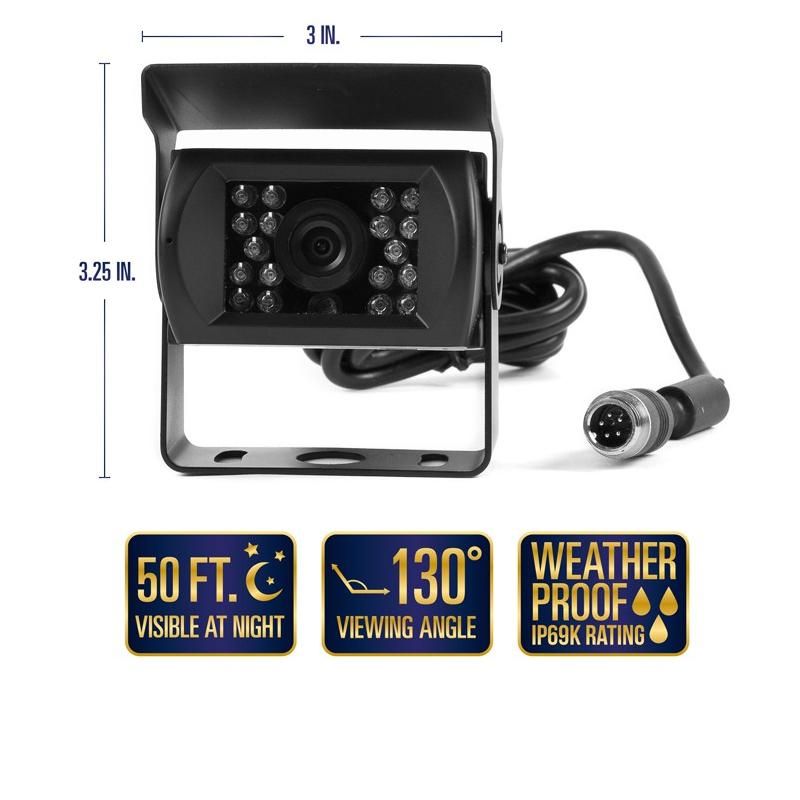

| Dimensions (W x H) | 3.25" (H) x 3" (L) x 1.25" (D) |
| S/N Ratio | More Than 48db |
| Signal System | NTSC / PAL |
| Video Output | 1Vp-p 75 Ω |
| Weatherproof | IP69K |
| Synchronization | Internal Synchronization |
| Angle of View | 130° |
| IR LEDs | 18 |
| Automatic White Balance | Yes |
| GPS | Yes |
| Auto Gain Control | Yes |
