RVS Systems RVS-770-NC 130° 620 TVL Backup Camera, No Cable

SKU
RVS-770-NC
Model No
RVS-770-NC
$117.13
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 1/3" Sharp® Color CCD Camera
  • 130° Ultra Wide Viewing Angle
  • 18 Infra-Red Lights - 50ft of Night Vision
  • Completely Waterproof - IP69K Rating
  • Built-In High Gain Mic

RVS Systems RVS-770-NC Backup Camera Features

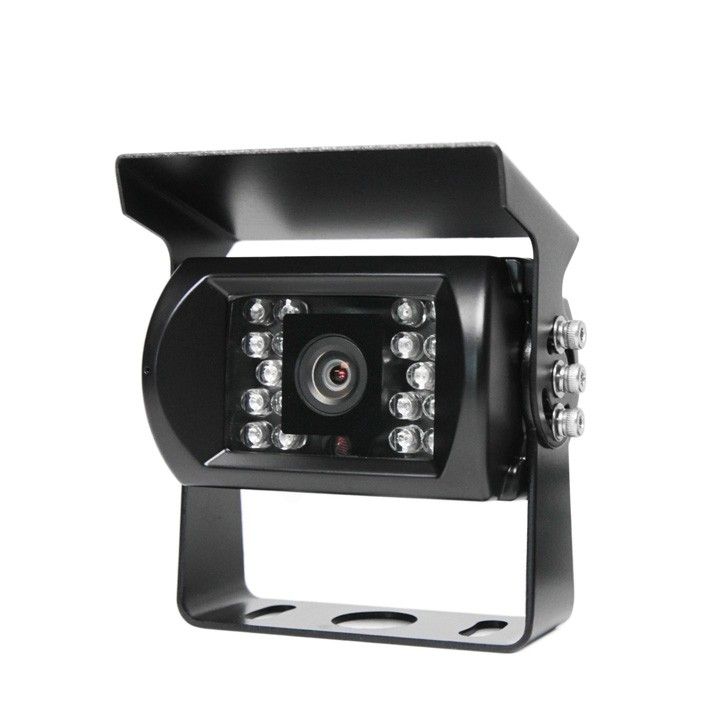

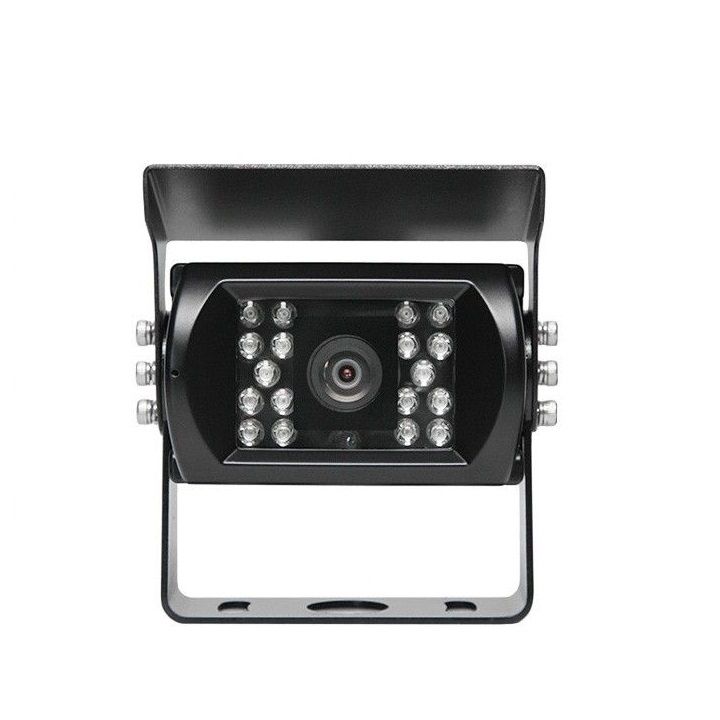

The RVS-770-NC from RVS Systems is a commercial grade backup camera which is the clearest and greatest camera available on the market today. It boasts a 410,000 pixel 2.5 mm lens with 18 infra-red illuminators which enable you to see in total darkness and a built-in microphone which enables you to hear what is behind you. The backup camera is completely weatherproof with an IP69K rating, strong and reliable, shock resistant with a 20G vibration and 100G impact rating (highest in the industry).

Detailed Camera Specifications

  • High-Resolution Sensor: 1/3" Sharp® Color CCD Camera ensures clear and vibrant image quality.
  • Wide Viewing Angle: 130° Ultra Wide Viewing Angle minimizes blind spots, enhancing safety while reversing.
  • Superior Night Vision: 18 Infra-Red Lights provide up to 50ft of night vision, allowing operation in total darkness.
  • Weatherproof Design: Completely Waterproof with an IP69K rating, making it perfect for all weather conditions.
  • Audio Capability: Built-In High Gain Mic captures sounds behind the vehicle for enhanced situational awareness.

RVS Systems RVS-770-NC Specifications

Camera Type1/3" Sharp® Color CCD
Viewing Angle130° Ultra Wide
Night Vision18 Infra-Red Lights with 50ft Range
Waterproof RatingIP69K
MicrophoneBuilt-In High Gain Mic
Shock Resistance20G Vibration and 100G Impact
SKU  RVS-770-NC
Features  Auto Gain Control, Weather Resistant
Manufacturer  RVS Systems
Camera Signal     Analog
Resolution    620 TVL
Sensor Option    1/3" CCD
Lens Type    Fixed
Lens Size    2.5mm
Infrared Distance    0~60 Feet
Durability    Weather Resistant
Gamma Correction  r=0.45 to 1.0
Image Device    1/3" Sharp® Color CCD
IR Distance  15.24m/50ft
Minimum Scene Illumination  0 Lux (IR On)
Operating Humidity    RH 95% Max
Operating Temperature    -40°C - 70°C
Dimensions (W x H)  3.25" (H) x 3" (L) x 1" (D)
S/N Ratio  More than 48dB
Signal System    PAL / NTSC
Video Output    1Vp.p 75 ohm
Weatherproof    IP69
Synchronization  Internal Synchronization
Angle of View    130°
IR LEDs  18
Auto Gain Control    Yes
