RVS Systems RVS-770-04 130° 620 TVL Forward Facing Camera, 66' Cable, RCA Adapter

SKU
RVS-770-04
Model No
RVS-770-04
$360.75
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 1/3" Sharp® Color CCD Camera
  • 130° Ultra Wide Viewing Angle
  • 18 Infra-Red Lights - 50ft of Night Vision
  • Completely Waterproof - IP69K Rating
  • Built-In High Gain Mic

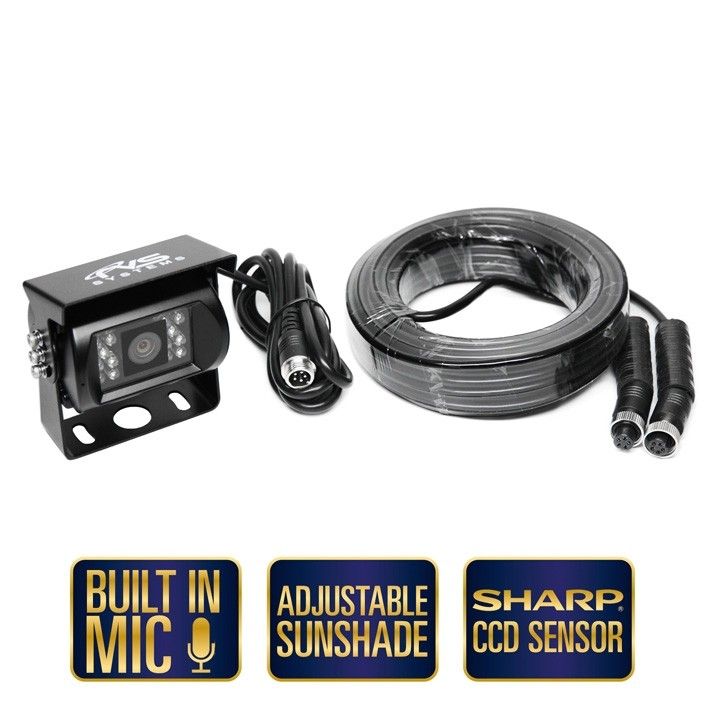

The RVS-770-04 from RVS Systems is a commercial grade backup camera which is the clearest and greatest camera available on the market today. It boasts a 410,000 pixel 2.5 mm lens with 18 infra-red illuminators which enable you to see in total darkness and a built-in microphone which enables you to hear what is behind you. The backup camera is completely weatherproof with an IP69K rating, strong and reliable, shock resistant with a 20G vibration and 100G impact rating (highest in the industry). The camera comes with 66' Camera Cable with a double-sided Female Air-Craft Grade Connection, 5 Pin Male to Male RCA with Male Power, Cable to connect power to RCA adapters.

RVS Systems RVS-770-04 Camera Features

  • 1/3" Sharp® Color CCD Camera: Provides high-quality footage with exceptional color accuracy for enhanced safety during reverse maneuvers.
  • 130° Ultra Wide Viewing Angle: Expands visibility and minimizes blind spots, ensuring a safer driving experience.
  • 18 Infra-Red Lights: 50ft of Night Vision - Enables clear monitoring in low-light conditions, enhancing usability at night.
  • Completely Waterproof: IP69K Rating - Designed to withstand harsh weather conditions, ensuring longevity and reliability.
  • Built-In High Gain Mic: Captures sounds behind the vehicle for improved awareness and safety while reversing.

RVS Systems RVS-770-04 Detailed Camera Specifications

Camera Type1/3" Sharp® Color CCD
Resolution620 TVL
Viewing Angle130°
Night Vision18 Infra-Red Lights (up to 50ft)
Waterproof RatingIP69K
MicrophoneBuilt-In High Gain Mic
Cable Length66'
Shock Resistance20G Vibration, 100G Impact
SKU  RVS-770-04
Features  Auto Gain Control, Weather Resistant
Manufacturer  RVS Systems
Camera Signal     Analog
Resolution    620 TVL
Sensor Option    1/3" CCD
Lens Type    Fixed
Lens Size    2.5mm
Infrared Distance    0~60 Feet
Durability    Weather Resistant
Gamma Correction  r=0.45 to 1.0
Image Device    1/3" Sharp® Color CCD
IR Distance  15.24m/50ft
Minimum Scene Illumination  0 Lux (IR On)
Operating Humidity    RH 95% Max
Operating Temperature    -40°C - 70°C

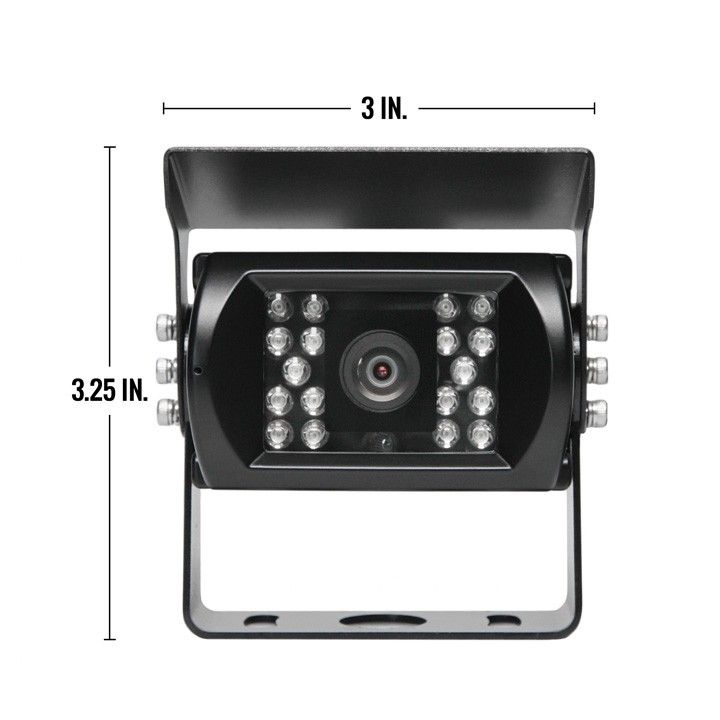

Dimensions (W x H)  3.25" (H) x 3" (L) x 1" (D)
S/N Ratio  More than 48dB
Signal System    PAL / NTSC
Video Output    1Vp.p 75 ohm
Weatherproof    IP69
Synchronization  Internal Synchronization
Angle of View    130°
IR LEDs  18
Auto Gain Control    Yes
