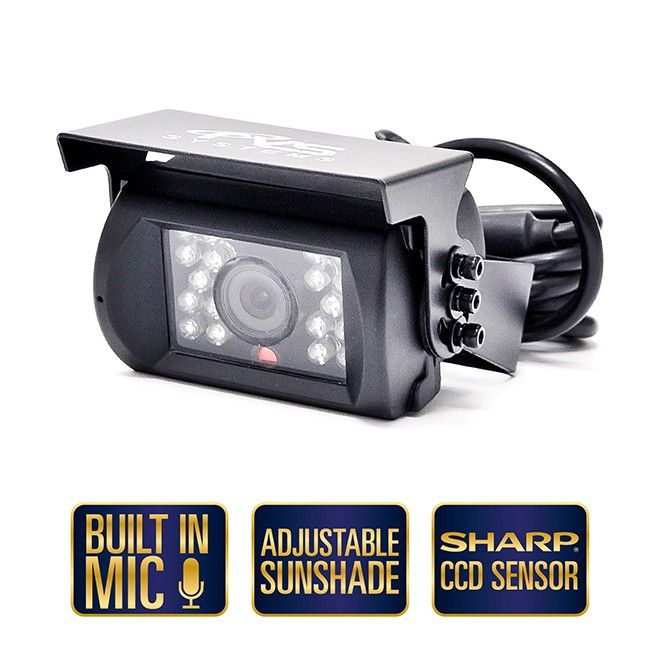

RVS Systems RVS-7500 600 TVL Analog Outdoor Backup Camera System With GPS Navigation, 2.1mm Lens
SKU
RVS-7500
Model No
RVS-082533
$623.27
Product Highlights
- 7" TFT LCD Digital Color Touch Display
- Full US and Canadian GPS Navigation with Obyssey 10 Maps
- 130° Ultra Wide Viewing Angle
- 18 Infra-red Lights - 50ft of Night Vision
- Completely Waterproof Camera - IP69K
Speak to an expert
The RVS-7500 features a 7" GPS Touch Screen Monitor with a Backup Camera. The navigation includes Odyssey 10 maps from Infogation and the backup camera automatically activates when the vehicle is put in reverse. The Backup Camera system is completely weatherproof with an IP69K rating. The industrial-grade monitor can withstand harsh temperatures, and the Backup Camera boasts a 130° wide view. This is a one (1) camera setup.
RVS Systems RVS-7500 Camera Features
- Display: 7" TFT LCD Digital Color Touch Display - Enjoy intuitive controls and clear visuals on a large display for easy navigation and viewing.
- Navigation: Full US and Canadian GPS Navigation with Odyssey 10 Maps - Navigate confidently across multiple regions with comprehensive and up-to-date maps.
- Viewing Angle: 130° Ultra Wide Viewing Angle - Gain greater visibility while reversing, reducing blind spots and enhancing safety.
- Night Vision: 50ft with 18 Infra-red Lights - Drive safely at night with superior visibility, ensuring you can see clearly in low-light conditions.
- Weatherproof: Completely Waterproof Camera - IP69K - Trust the robust design that withstands extreme weather conditions for reliable outdoor use.
RVS Systems RVS-7500 Detailed Specifications
| Screen Size | 7 inches |
| Display Type | TFT LCD Digital Color Touch Display |
| GPS Map Coverage | Full US and Canadian with Odyssey 10 |
| Viewing Angle | 130° |
| Night Vision | 50ft with 18 Infra-red Lights |
| Weather Resistance | IP69K Waterproof Rating |
| Camera Setup | One (1) Camera System |
SKU  | RVS-7500 |
|---|---|
| Features | Auto Gain Control, Day/Night, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 600 TVL |
| Sensor Option | 1/4" CCD |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Infrared Distance | 0~60 Feet |
| Durability | Weather Resistant |
| Mount Type | Ceiling, Wall |
| Voltage | 12-24vDC |
| Electronic Shutter | 1/50, 160-1/100,000sec |
| Gamma Correction | r=0.45 to 1.0 |
| Image Device | 1/4" Sharp® Color CCD |
| IR Distance | 15.24m/50ft |
| Minimum Scene Illumination | 0 Lux (IR On) |
| Operating Humidity | RH 95% Max |
| Operating Temperature | -40°C ~ +80°C |
| Dimensions (W x H) | Camera: (with bracket) 3.25" (H) x 3" (L) x 2.20" (D), Monitor: 5.25" (H) x 7" (L) x 1" (D) |
| Power Consumption | 5W |
| S/N Ratio | More than 48dB |
| Signal System | PAL / NTSC |
| Video Output | 1Vp-p 75 Ω |
| Weatherproof | IP69 |
| Synchronization | Internal Synchronization |
| Angle of View | 130° |
| IR LEDs | 18 |
| Day/Night | Yes |
| Auto Gain Control | Yes |
