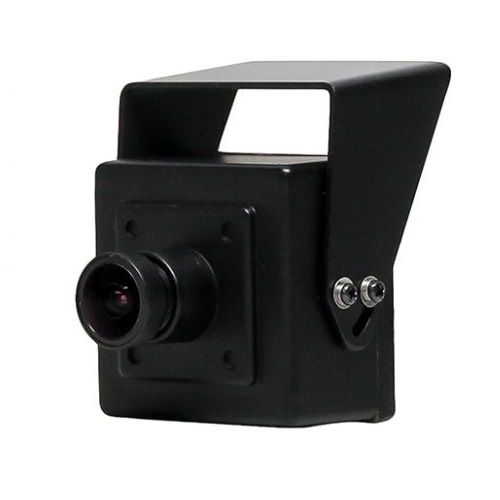

RVS Systems RVS-720-AHD 720P AHD Forward Facing Camera, 2.8mm Lens
SKU
RVS-720-AHD
Model No
RVS-720-AHD
$167.89
Product Highlights
- 720p AHD Forward Facing Camera
- Connects to 6000, 5500, 5550, 5520-Hybrid, 8150, & 8117 DVR Series
- 2.8mm Lens
- Built-in Microphone
- 120° Viewing Angle
Speak to an expert
The RVS-720-AHD from RVS Systems is a 720p AHD forward-facing camera with a 2.8mm lens. This compact device delivers high-definition image quality and connects seamlessly to various DVR systems to record footage from the front windshield. Equipped with a built-in microphone, it enhances your recordings by capturing audio alongside video.
RVS Systems RVS-720-AHD Key Features
- 720p AHD Forward Facing Camera - Provides high-definition video quality for clear, detailed recordings of the road ahead.
- Compatibility with Multiple DVR Series - Easily integrates with 6000, 5500, 5550, 5520-Hybrid, 8150, & 8117 series DVRs for versatile application.
- 2.8mm Lens - Offers a wide perspective for optimal visibility, ensuring no detail is missed while driving.
- Built-in Microphone - Captures audio along with video, adding another layer of information to your recordings.
- 120° Viewing Angle - Expands your field of view, minimizing blind spots and enhancing safety on the road.
RVS Systems RVS-720-AHD Detailed Specifications
| Camera Type | Forward Facing AHD Camera |
| Resolution | 720p |
| Lens Size | 2.8mm |
| Viewing Angle | 120° |
| Microphone | Yes |
| Compatible DVRs | 6000, 5500, 5550, 5520-Hybrid, 8150, 8117 |
SKU  | RVS-720-AHD |
|---|---|
| Features | Auto Gain Control, Back Light Compensation |
| Manufacturer | RVS Systems |
Camera Signal  | Analog, HD-AHD |
| Resolution | 720p |
| Sensor Option | 1/3" CMOS |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Infrared Distance | Non Infrared |
| Mount Type | Ceiling, Wall |
| Voltage | 9-18vDC |
| Electronic Shutter | Auto |
| Image Device | 1/3" CMOS AR0130 |
| Operating Temperature | -30° C ~ +70 ° C |
| S/N Ratio | 48dB |
| Scanning System | Progressive scan RGB CMOS |
| Signal System | PAL / NTSC |
| Video Output | 1 Vp-p, 75Ω, AHD |
| Synchronization | Internal |
| Angle of View | 120° |
| Backlight Compensation | Auto |
| Auto Gain Control | Auto |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
