RVS Systems RVS-718522-04 480 TVL Cadillac Escalade Ext Mirror Monitor with Dash Camera, Tailgate Camera, 33ft Cable
- G-Series Mirror Monitor with Dash Camera
- Mounts flush against the vehicle
- 170° all-encompassing angle
- Compact design
- Excellent night vision
The RVS-718522-04 from RVS Systems is a Commercial grade backup camera system specifically for Cadillac Escalade EXTs. Systems are designed for Escalade EXTs, Cadillac trucks, and other heavy-duty pickups, but are completely customizable based on your specific wants and needs. Eliminate blind spots while increasing overall awareness, safety, and visibility with the Backup Camera System For Cadillac Escalade EXTs. Each system will have these basic standards: a G-Series rear view replacement mirror monitor and a completely waterproof (IP68) compact backup camera with excellent night vision and an ultra-wide 170° viewing angle. Use the side panel to configure your system.

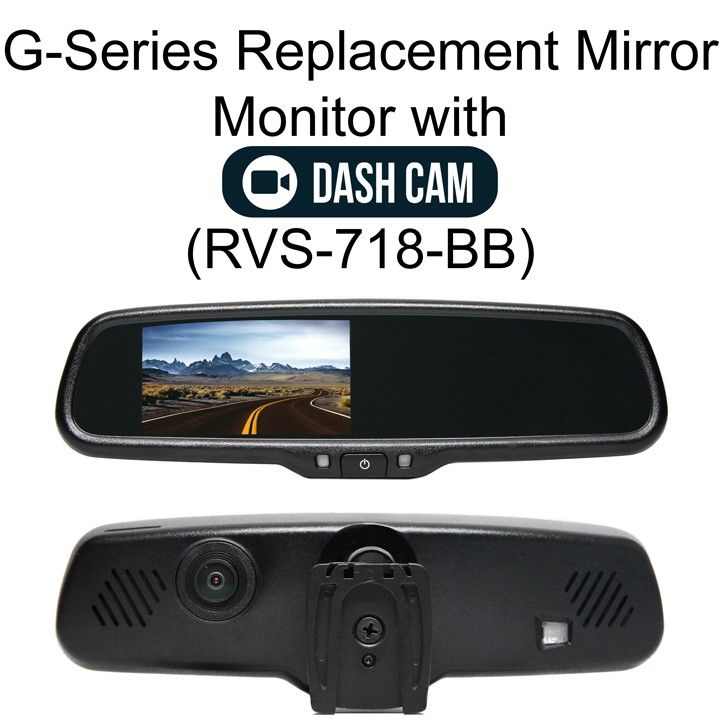

The RVS-718-BB is a mirror monitor that replaces your existing rearview mirror and comes with a built-in dash camera to record high definition video out the front windshield. This monitor is also equipped with a G-Sensor for event recording.
The RVS-Tailgate is a tailgate camera complete with a crystal clear 170° MT9V139 backup camera with night vision and all the wires, connectors, and mounts you will need. The rearview camera system is completely weatherproof with an IP68 rating, strong and reliable, and shock resistant with a 10G vibration rating (highest in the industry).
The RVS-826N is a 33' Camera Cable with a double-sided Female Air-Craft Grade Connection.
Features
- G-Series Mirror Monitor with Dash Camera: Replaces existing rearview mirror for high-definition video recording and monitoring.
- Mounts Flush Against the Vehicle: Provides a clean and integrated look while maximizing visibility.
- 170° All-Encompassing Angle: Eliminates blind spots and enhances overall awareness when reversing.
- Compact Design: Designed to fit seamlessly without taking up excess space.
- Excellent Night Vision: Ensures safety and visibility in low light conditions.
- Completely Waterproof - IP68 Rating: Provides durability and performance in all weather conditions.
RVS Systems RVS-718522-04 Detailed Specifications
| Feature | Details |
| Model | RVS-718522-04 |
| Camera Resolution | 480 TVL |
| Viewing Angle | 170° |
| Video Recording | High definition with G-Sensor |
| Weatherproof Rating | IP68 |
| Shock Resistance | 10G vibration rating |
| Cable Length | 33ft |
| Compatibility | Cadillac Escalade EXT, Cadillac trucks, heavy-duty pickups |
SKU  | RVS-718522-04 |
|---|---|
| Features | Auto Gain Control, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 480 TVL |
| Sensor Option | 1/4" Image Sensor |
| Infrared Distance | Non Infrared |
| Durability | Weather Resistant |
| Voltage | 12-24vDC |
| Image Device | 1/4 Inch |
| Minimum Scene Illumination | 0.5 Lux |
| Dimensions (W x H) | 1.25" (H) x 1.25" (L) x 1.25" (D) |
| Power Consumption | <1W |
| S/N Ratio | 48dB |
| Signal System | NTSC/PAL |
| Video Output | 1.0Vp-p 75ohm |
| Weatherproof | IP68 |
| Angle of View | 170° |
| Auto Gain Control | Yes |
RVS-718-BB-Instruction-Manual RVS-Tailgate-Specsheet RVS-Tailgate-Instruction-Manual
