RVS Systems RVS-718521-04 480 TVL Nissan Titan Mirror Monitor with Dash Camera, Tailgate Camera, 33ft Cable
- G-Series Mirror Monitor with Dash Camera
- Mounts flush against the vehicle
- 170° all-encompassing angle
- Compact design
- Excellent night vision
RVS Systems RVS-718521-04 Backup Camera System Features

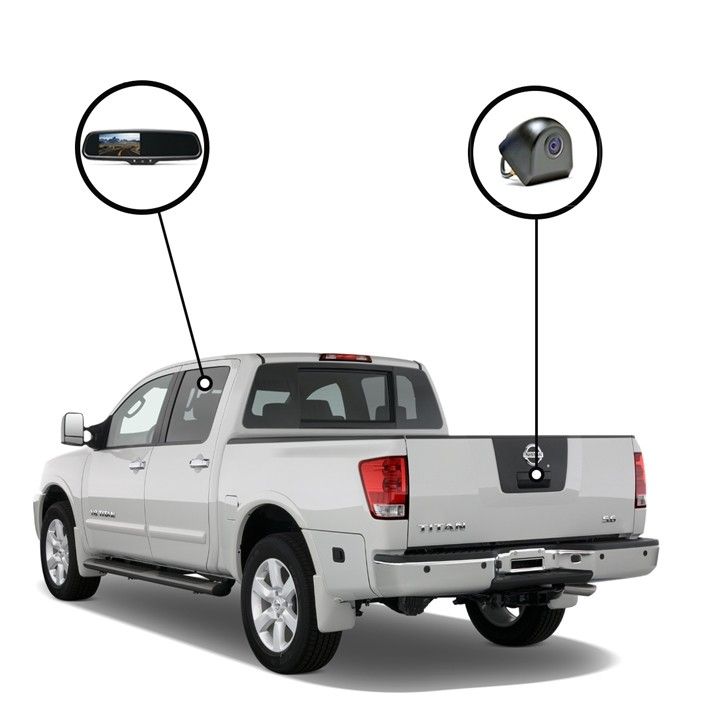

The RVS-718521-04 from RVS Systems is a Commercial grade backup camera system specifically for Nissan Titans. Systems are designed for Titans, Nissan trucks, and other heavy-duty pickups, but are completely customizable based on your specific wants and needs. Eliminate blind spots while increasing overall awareness, safety and visibility with the Backup Camera System For Nissan Titans. Each system will have these basic standards: a G-Series rear view replacement mirror monitor and a completely waterproof (IP68) compact backup camera with excellent night vision and an ultra-wide 170° viewing angle. Use the side panel to configure your system.

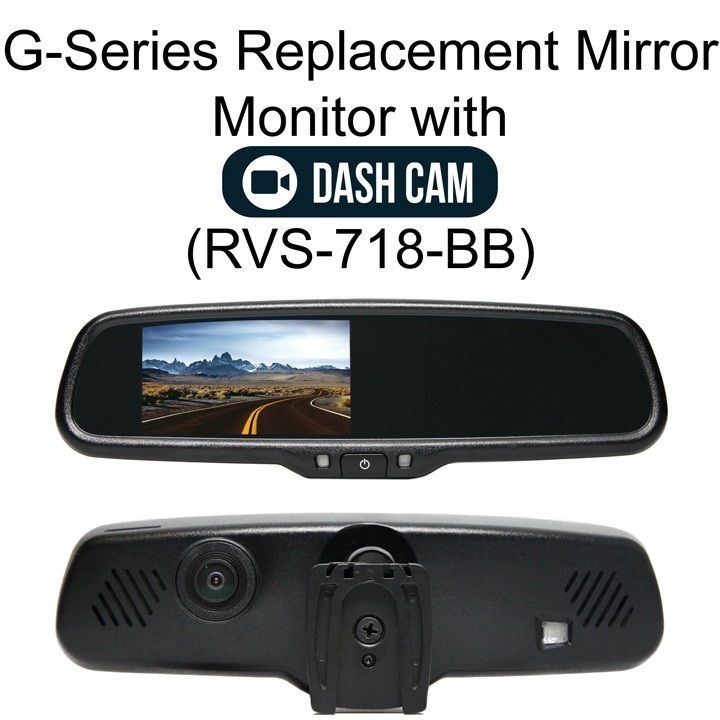

The RVS-718-BB is a mirror monitor replaces your existing rearview mirror and comes with a built-in dash camera to record high definition video out the front windshield. This monitor is also equipped with a G-Sensor for event recording.

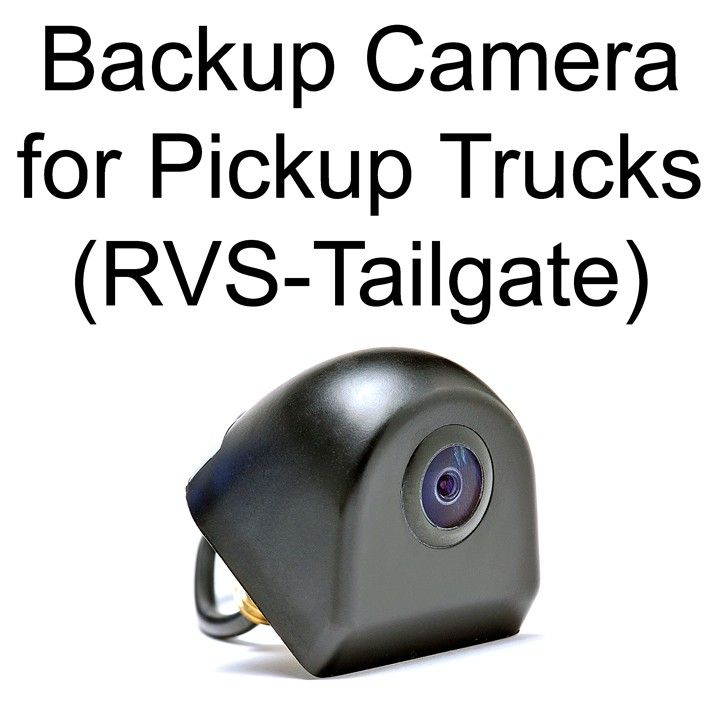

The RVS-Tailgate is a tailgate camera complete with a crystal clear 170° MT9V139 backup camera with night vision and all the wires, connectors and mounts you will need. The rearview camera system is completely weatherproof with an IP68 rating, strong and reliable, shock resistant with a 10G vibration rating (highest in the industry).
The RVS-826N is a 33' Camera Cable with a double-sided Female Air-Craft Grade Connection.
Features
- G-Series Mirror Monitor with Dash Camera: Replaces your existing mirror while offering HD video recording for enhanced safety.
- Mounts flush against vehicle: Designed for a sleek look, ensuring no obstruction of view.
- 170° all-encompassing angle: Provides a panoramic view, eliminating blind spots while reversing.
- Compact design: Optimizes space inside your vehicle without sacrificing functionality.
- Excellent night vision: Ensures clear visibility during low-light conditions for safer driving.
- Completely waterproof - IP68 rating: Resilient against harsh weather, ensuring long-lasting performance.
RVS Systems RVS-718521-04 Detailed Specifications
| Product Type | Backup Camera System |
| Compatible Vehicles | Nissan Titan and Other Heavy-Duty Pickups |
| Camera Resolution | 480 TVL |
| Viewing Angle | 170° |
| Waterproof Rating | IP68 |
| Dash Camera Features | G-Sensor, HD Recording |
| Cable Length | 33 ft |
| Vibration Rating | 10G (Shock Resistant) |
SKU  | RVS-718521-04 |
|---|---|
| Features | Auto Gain Control, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 480 TVL |
| Sensor Option | 1/4" Image Sensor |
| Infrared Distance | Non Infrared |
| Durability | Weather Resistant |
| Voltage | 12-24vDC |
| Image Device | 1/4 Inch |
| Minimum Scene Illumination | 0.5 Lux |
| Dimensions (W x H) | 1.25" (H) x 1.25" (L) x 1.25" (D) |
| Power Consumption | <1W |
| S/N Ratio | 48dB |
| Signal System | NTSC/PAL |
| Video Output | 1.0Vp-p 75ohm |
| Weatherproof | IP68 |
| Angle of View | 170° |
| Auto Gain Control | Yes |
