RVS Systems RVS-718519-01 420 TVL Toyota Tundra Mirror Monitor, Tailgate Camera, 33ft Cable
- G-Series Mirror Monitor
- Replaces Tundra tailgate handle
- OEM design - factory like install
- 170° all-encompassing viewing angle
- Excellent night vision
The RVS-718519-01 from RVS Systems is a Commercial grade backup camera system specifically for Toyota Tundras. Systems replace existing tailgate handle and are designed for the Toyotas but are completely customizable based on your specific wants and needs. Eliminate blind spots while increasing overall awareness, safety and visibility with the Backup Camera System For Toyota Tundras. Each system will have these basic standards: a G-Series rearview replacement mirror monitor and a waterproof (IP67) compact backup camera with excellent night vision and an ultra-wide 170° viewing angle. Use the side panel to configure your system.

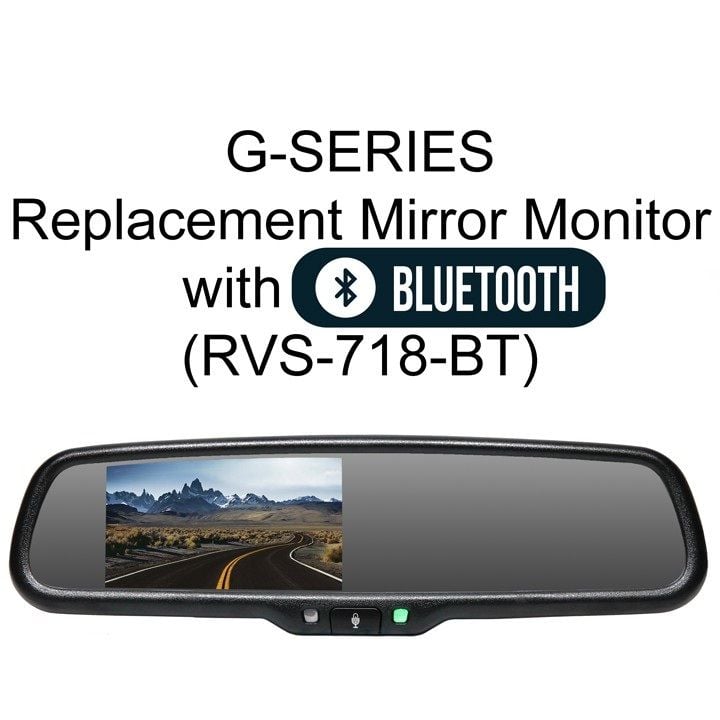

The RVS-718 is a Replacement Mirror Monitor is so good looking you'll catch yourself looking at it rather than the reflection. Its 4.3" monitor is placed to the left of the mirror while the entire surface is reflective and acts as a mirror. For an absolute perfect backing up experience.

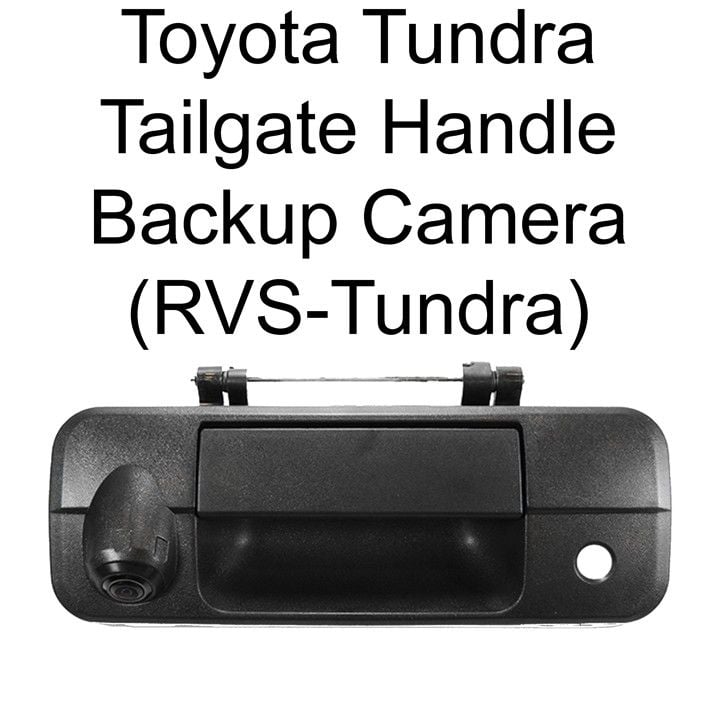

The RVS-Tundra is a Toyota Tundra backup camera replaces the existing tailgate handle for a sleek OEM look. The Toyota Tundra back up camera boasts a 170° CCD sensor which displays rich color picture day and night. The camera has excellent night vision which works great in low light settings. This Toyota Tundra Backup Camera works on all new Bodies 2007-2013.
The RVS-826N is a 33' Camera Cable with a double-sided Female Air-Craft Grade Connection.
Features
- G-Series Mirror Monitor: Provides a sleek design and enhances safety with a clear display of the area behind your vehicle.
- Replaces Tundra tailgate handle: Maintains an original equipment manufacturer (OEM) look while upgrading functionality.
- OEM design - factory like install: Seamless installation that looks integrated into the vehicle.
- 170° all-encompassing viewing angle: Offers maximum visibility to eliminate blind spots and enhance safety.
- Excellent night vision: Ensures clear views in low light conditions, improving safety during nighttime driving.
- IP67 rating: Completely protected against dust and water, ensuring durability in all weather conditions.
RVS Systems RVS-718519-01 Detailed Specifications
| Monitor Size | 4.3 inches |
| Camera Type | Backup camera with CCD sensor |
| Viewing Angle | 170° |
| Night Vision | Yes |
| Weatherproof Rating | IP67 |
| Compatibility | Toyota Tundra models 2007-2013 |
| Cable Length | 33 feet |
| Connection Type | Double-sided Female Air-Craft Grade Connection |
SKU  | RVS-718519-01 |
|---|---|
| Features | Auto Gain Control, Mirror, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 420 TVL |
| Sensor Option | 1/3" CCD |
| Infrared Distance | Non Infrared |
| Durability | Weather Resistant |
| Image Device | CMD-III, 1/4” |
| Image Pixels-Effective | 648*488 |
| Minimum Scene Illumination | 0.5 Lux |
| Operating Temperature | -40°C to +70°C |
| Dimensions (W x H) | 3.75" (H) x 10.50" (L) |
| Power Consumption | MAX: 150mA |
| Signal System | NTSC/PAL |
| Video Output | Full Color Video Out: 1.0Vp-p 17 (ohm) Load |
| Weatherproof | IP67 , IP68 |
| Angle of View | 170° |
| Mirror | Yes |
| Auto Gain Control | Yes |
