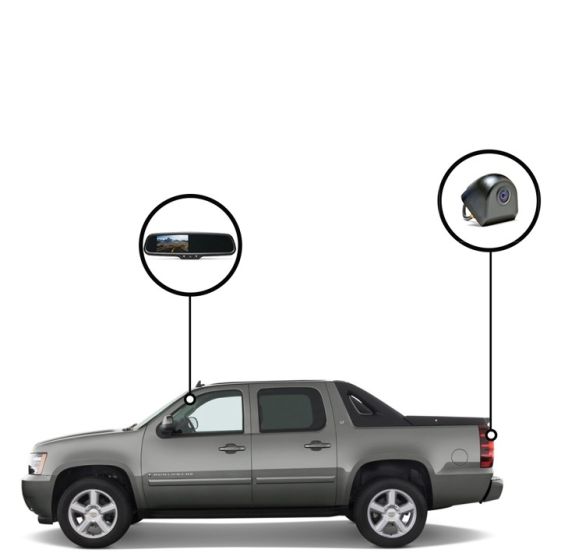

RVS Systems RVS-718509-05 480 TVL Chevy Avalanche Mirror Monitor with Sensors, Tailgate Camera, 33ft Cable
- G-Series Mirror Monitor with Sensors
- Mounts flush against the vehicle
- 170° all-encompassing angle
- Compact design
- Excellent night vision
RVS Systems RVS-718509-05 Camera Features
The RVS-718509-05 from RVS Systems is a Commercial grade backup camera system specifically for Chevy Avalanches. Systems are designed for Avalanches, Chevy trucks, and other heavy-duty pickups, but are completely customizable based on your specific wants and needs. Eliminate blind spots while increasing overall awareness, safety, and visibility with the Backup Camera System For Chevy Avalanches. Each system will have these basic standards: a G-Series rearview replacement mirror monitor and a completely waterproof (IP68) compact backup camera with excellent night vision and an ultra-wide 170° viewing angle. Use the side panel to configure your system.
The RVS-718-PS is a replacement mirror monitor and four high-quality sensors that warn drivers of potential obstacles behind their vehicle. Its 4.3" monitor is placed to the left of the mirror while the entire surface is reflective and acts as a mirror. For an absolute perfect backing up experience.
The RVS-Tailgate is a tailgate camera complete with a crystal clear 170° MT9V139 backup camera with night vision and all the wires, connectors and mounts you will need. The rearview camera system is completely weatherproof with an IP68 rating, strong and reliable, shock resistant with a 10G vibration rating (highest in the industry).
The RVS-826N is a 33' Camera Cable with a double-sided Female Air-Craft Grade Connection.
Features
- G-Series Mirror Monitor with Sensors: Provides real-time obstacle detection and enhances safety while reversing.
- Mounts flush against the vehicle: Maintains a sleek look while ensuring optimal functionality.
- 170° all-encompassing angle: Increases visibility and eliminates blind spots.
- Compact design: Easy installation and minimal space requirement.
- Excellent night vision: Enhances visibility in low light conditions, ensuring safer driving.
- Completely waterproof - IP68 rating: Ensures durability and reliability in all weather conditions.
RVS Systems RVS-718509-05 Detailed Specifications
| Feature | Details |
|---|---|
| Brand | RVS Systems |
| Model | RVS-718509-05 |
| Camera Type | Tailgate Camera |
| Monitor Size | 4.3 inches |
| Viewing Angle | 170° |
| Camera Resolution | 480 TVL |
| Waterproof Rating | IP68 |
| Cable Length | 33 feet |
| Shock Resistance | 10G vibration rating |
SKU  | RVS-718509-05 |
|---|---|
| Features | Auto Gain Control, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 480 TVL |
| Sensor Option | 1/4" Image Sensor |
| Infrared Distance | Non Infrared |
| Durability | Weather Resistant |
| Voltage | 12-24vDC |
| Image Device | 1/4 Inch |
| Minimum Scene Illumination | 0.5 Lux |
| Dimensions (W x H) | 1.25" (H) x 1.25" (L) x 1.25" (D) |
| Power Consumption | <1W |
| S/N Ratio | 48dB |
| Signal System | NTSC/PAL |
| Video Output | 1.0Vp-p 75ohm |
| Weatherproof | IP68 |
| Angle of View | 170° |
| Auto Gain Control | Yes |
RVS-Tailgate-Specsheet RVS-Tailgate-Instruction-Manual
