RVS Systems RVS-718503-01 F150 Camera, Mirror Monitor, 33ft Cable
SKU
RVS-718503-01
Model No
RVS-718503-01
$445.19
Product Highlights
- G-Series Mirror Monitor (Select From Item Options)
- Distance Grid Lines for Backing Up Reference
- 170° Ultra-Wide Viewing Angle
- Backup Camera Replaces Tailgate Handle
- Completely Waterproof Camera - IP67
Speak to an expert

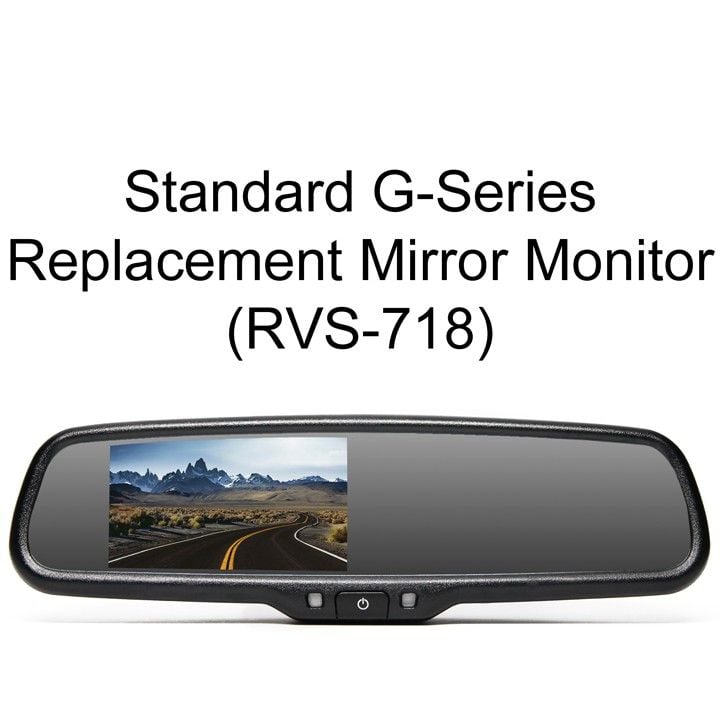

The RVS-718503-01 from RVS Systems is a Commercial grade backup camera system specifically designed for Ford F150s (2008-2016). It replaces the existing tailgate handle and is customizable to fit your needs. This system enhances safety and visibility by eliminating blind spots. Basic components include a G-Series rear view replacement mirror monitor and a waterproof (IP67) compact backup camera with outstanding night vision and an ultra-wide 170° viewing angle. The RVS-718 mirror monitor, with its 4.3" display, integrates seamlessly into your vehicle, providing an exceptional backing up experience.
RVS Systems RVS-718503-01 Camera Features
- G-Series Mirror Monitor: Allows for easy viewing with a stylish design that catches your eye.
- Distance Grid Lines: Provides helpful backing up reference to enhance safety.
- 170° Ultra-Wide Viewing Angle: Offers a broad perspective of your surroundings, increasing awareness.
- Backup Camera Replacement: Seamlessly replaces the tailgate handle for a clean, OEM look.
- Waterproof (IP67) Rating: Ensures durability and reliability in all weather conditions.
RVS Systems RVS-718503-01 Detailed Specifications
| Display Type | 4.3" G-Series Rear View Mirror Monitor |
| Camera Angle | 170° Ultra-Wide Viewing Angle |
| Camera Technology | 170° CCD sensor with Night Vision |
| Camera Replacement | Replaces Existing Tailgate Handle |
| Video Connection Type | Double-sided Female Air-Craft Grade Connection |
| Waterproof Rating | IP67 |
| Cable Length | 33 feet |
| Grid Line Feature | Built-in, removable by cutting green wire |
SKU  | RVS-718503-01 |
|---|---|
| Features | Auto Gain Control, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Sensor Option | 1/4" CCD |
| Infrared Distance | Non Infrared |
| Durability | Weather Resistant |
| Image Device | CDM-III, 1/4” |
| Minimum Scene Illumination | 0.5 Lux |
| Operating Temperature | -40°C to +70°C |
| Dimensions (W x H) | 4" (H) x 7.95" (L) x 0.25" (D) |
| Signal System | NTSC |
| Video Output | Full Color Video Out:1.0Vp-p 17 (ohm) Load |
| Weatherproof | IP67 |
| Angle of View | 170° |
| Auto Gain Control | Yes |
