RVS Systems RVS-718502-04 (F350) F150 Camera, Mirror Monitor with Dash Camera, 33ft Cable
- G-Series Mirror Monitor (Select From Item Options)
- Distance Grid Lines for Backing Up Reference
- 170° Ultra-Wide Viewing Angle
- Backup Camera Replaces Tailgate Handle
- Completely Waterproof Camera - IP67

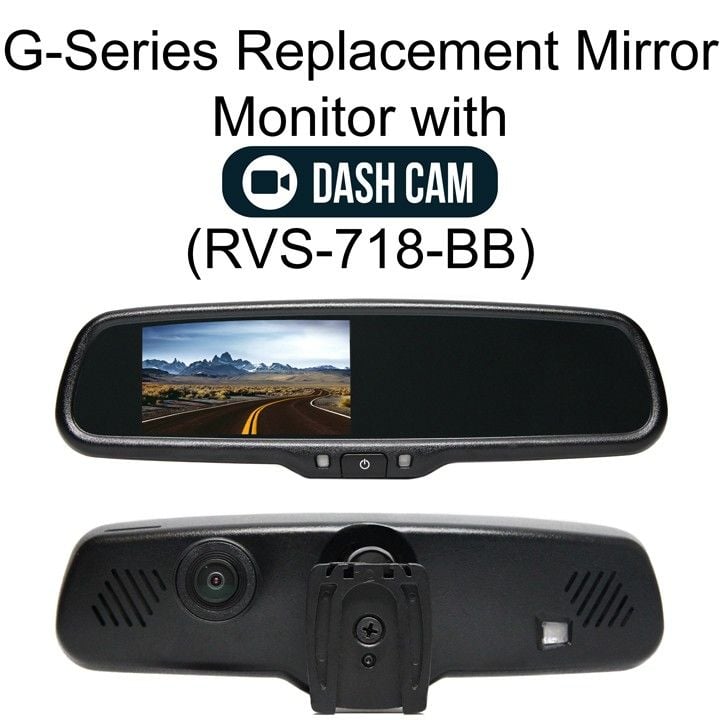

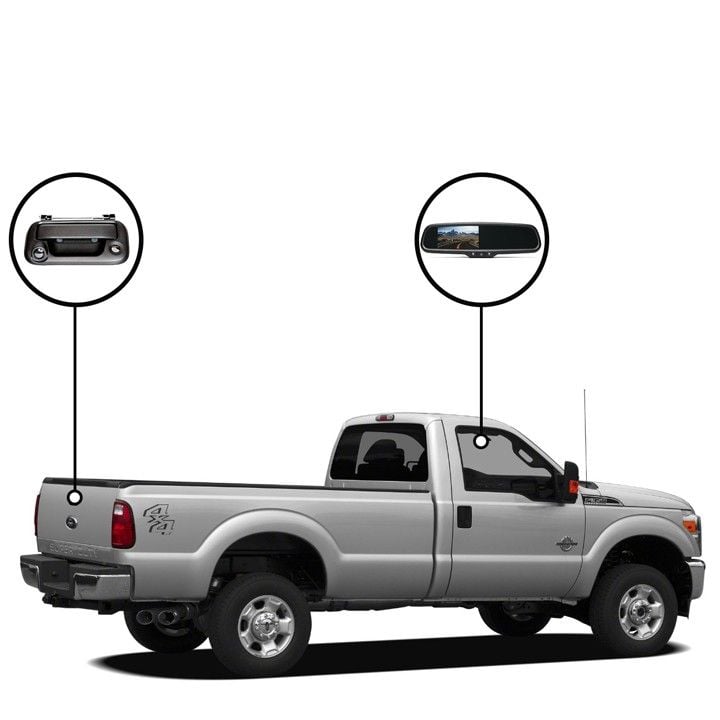

The RVS-718502-04 from RVS Systems is a Commercial grade backup camera system specifically for Ford F350s (2008-2016). Systems replace existing tailgate handle and are designed for the Ford F-Series but are completely customizable based on your specific wants and needs. Eliminate blind spots while increasing overall awareness, safety and visibility with the Backup Camera System For Ford F350s. Each system will have these basic standards: a G-Series rear view replacement mirror monitor and a waterproof (IP67) compact backup camera with excellent night vision and an ultra-wide 170° viewing angle. Use the side panel to configure your system. The RVS-718-BB is a mirror monitor replaces your existing rearview mirror and comes with a built-in dash camera to record high definition video out the front windshield. This monitor is also equipped with a G-Sensor for event recording.

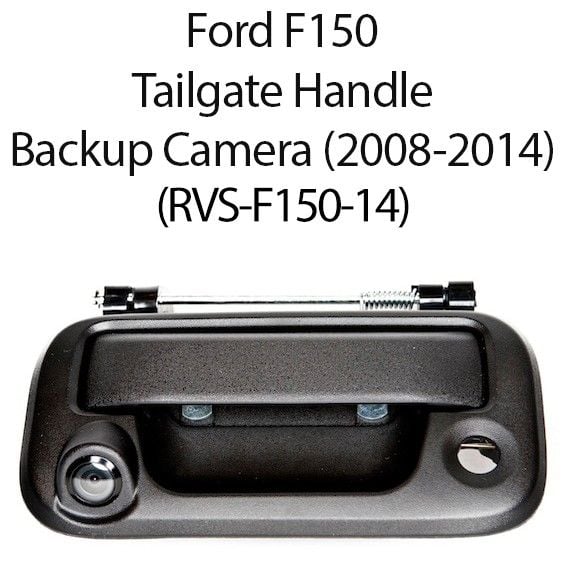

The RVS-F150 is a Ford F150 backup camera replaces the existing tailgate handle for a sleek OEM look. The Ford F150 backup camera boasts a 170° CCD sensor which displays a rich color picture day and night. The camera has excellent night vision which works great in low light settings. This camera has built-in gridlines. To remove the gridlines, cut the green wire from the camera.
The RVS-826N is a 33' Camera Cable with a double-sided Female Air-Craft Grade Connection.
RVS Systems RVS-718502-04 Camera Features
Features
- G-Series Mirror Monitor: Select from item options to find the perfect fit for your vehicle, enhancing visibility and safety.
- Distance Grid Lines: Provides backing up reference to avoid obstacles, improving driver confidence when reversing.
- 170° Ultra-Wide Viewing Angle: Expands your field of view, significantly reducing blind spots for safer maneuvers.
- Backup Camera Replaces Tailgate Handle: Maintains a sleek and OEM appearance while providing essential functionality.
- Completely Waterproof Camera - IP67: Ensures durability and reliability against the elements, suitable for all weather conditions.
RVS Systems RVS-718502-04 Detailed Specifications
| Product Name | RVS Systems RVS-718502-04 |
| Compatible Vehicles | Ford F350 (2008-2016) |
| Camera Type | Compact Backup Camera |
| Monitor Type | G-Series Rear View Replacement Mirror Monitor |
| Cable Length | 33 Feet |
| Camera Viewing Angle | 170° |
| Camera Waterproof Rating | IP67 |
| Night Vision | Yes |
| Event Recording Feature | G-Sensor Equipped |
SKU  | RVS-718502-04 |
|---|---|
| Features | Auto Gain Control, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Sensor Option | 1/4" CCD |
| Infrared Distance | Non Infrared |
| Durability | Weather Resistant |
| Image Device | CDM-III, 1/4” |
| Minimum Scene Illumination | 0.5 Lux |
| Operating Temperature | -40°C to +70°C |
| Dimensions (W x H) | 4" (H) x 7.95" (L) x 0.25" (D) |
| Signal System | NTSC |
| Video Output | Full Color Video Out:1.0Vp-p 17 (ohm) Load |
| Weatherproof | IP67 |
| Angle of View | 170° |
| Auto Gain Control | Yes |
