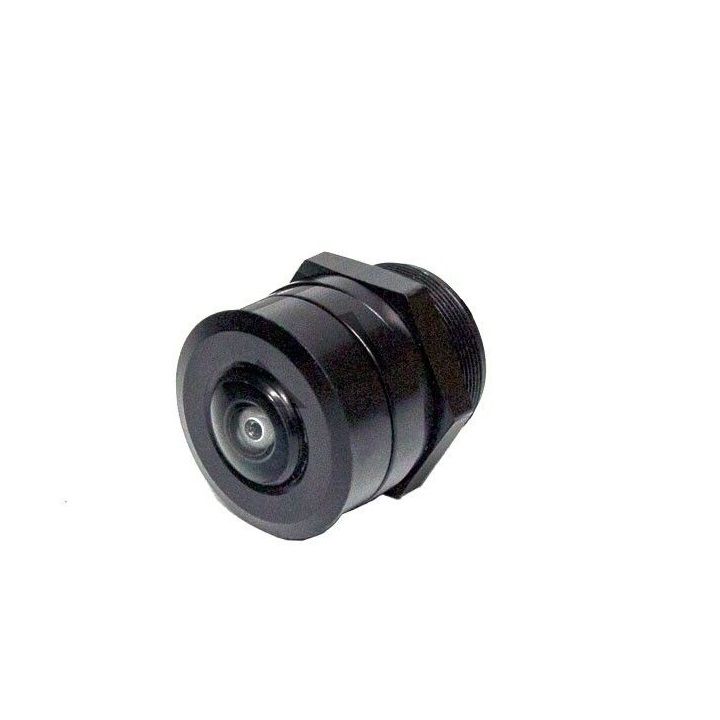

RVS Systems RVS-659-03 170° 700 TVL Flushmount Backup Camera (FMVSS 111 Compliant), 16' Cable
SKU
RVS-659-03
Model No
RVS-659-03
$139.91
Product Highlights
- Flushmount - mount with bracket (sold separately) or flush against vehicle
- Makes your vehicle FMVSS 111 Compliant
- 170° ultra-wide viewing angle
- 700 TV Lines
Speak to an expert
The RVS-659-03 from RVS Systems is an FMVSS 111 compliant flushmount backup camera designed to provide an essential view behind vehicles weighing under 10,000 pounds. This camera, featuring a 1.43" diameter, flush mounts seamlessly into the rear of your vehicle for an unobtrusive installation. With a high resolution of 700 TV Lines and an impressive 170° viewing angle, it enhances safety and visibility while reversing. Complete with a 16' camera cable, the RVS-659-03 is equipped with a durable double-sided female air-craft grade connection for reliability.
RVS Systems RVS-659-03 Backup Camera Features
- Flushmount Design: Enables a clean and professional look by mounting flush against the vehicle for minimal visual impact.
- FMVSS 111 Compliance: Ensures your vehicle meets necessary legal requirements, enhancing safety during reverse maneuvers.
- 170° Viewing Angle: Provides an ultra-wide field of vision, allowing drivers to see more of their surrounding environment when backing up.
- High Resolution at 700 TV Lines: Delivers clear and detailed images, improving visibility and alertness to potential obstacles.
RVS Systems RVS-659-03 Detailed Specifications
| Feature | Details |
|---|---|
| Camera Diameter | 1.43 inches |
| View Angle | 170 degrees |
| Resolution | 700 TV Lines |
| Cable Length | 16 feet |
| Connection Type | Double-sided Female Air-Craft Grade |
| Mounting Type | Flush or with bracket (sold separately) |
| Compliance Standard | FMVSS 111 |
SKU  | RVS-659-03 |
|---|---|
| Features | Auto Gain Control, Back Light Compensation, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 700 TVL |
| Durability | Weather Resistant |
| Minimum Scene Illumination | 0.5 Lux |
| Operating Temperature | -40 ~ +70 °C |
| S/N Ratio | More than 48dB |
| Video Output | 1Vp-p 75Ω |
| Weatherproof | IP68 |
| Angle of View | 170° |
| Backlight Compensation | Auto |
| Auto Gain Control | Auto |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
