RVS RVS-616VDI 620/420 TVL Virtual Spotter System, 2.5/2.1mm Lens
SKU
RVS-616VDI
Model No
RVS-082583
$969.89
Product Highlights

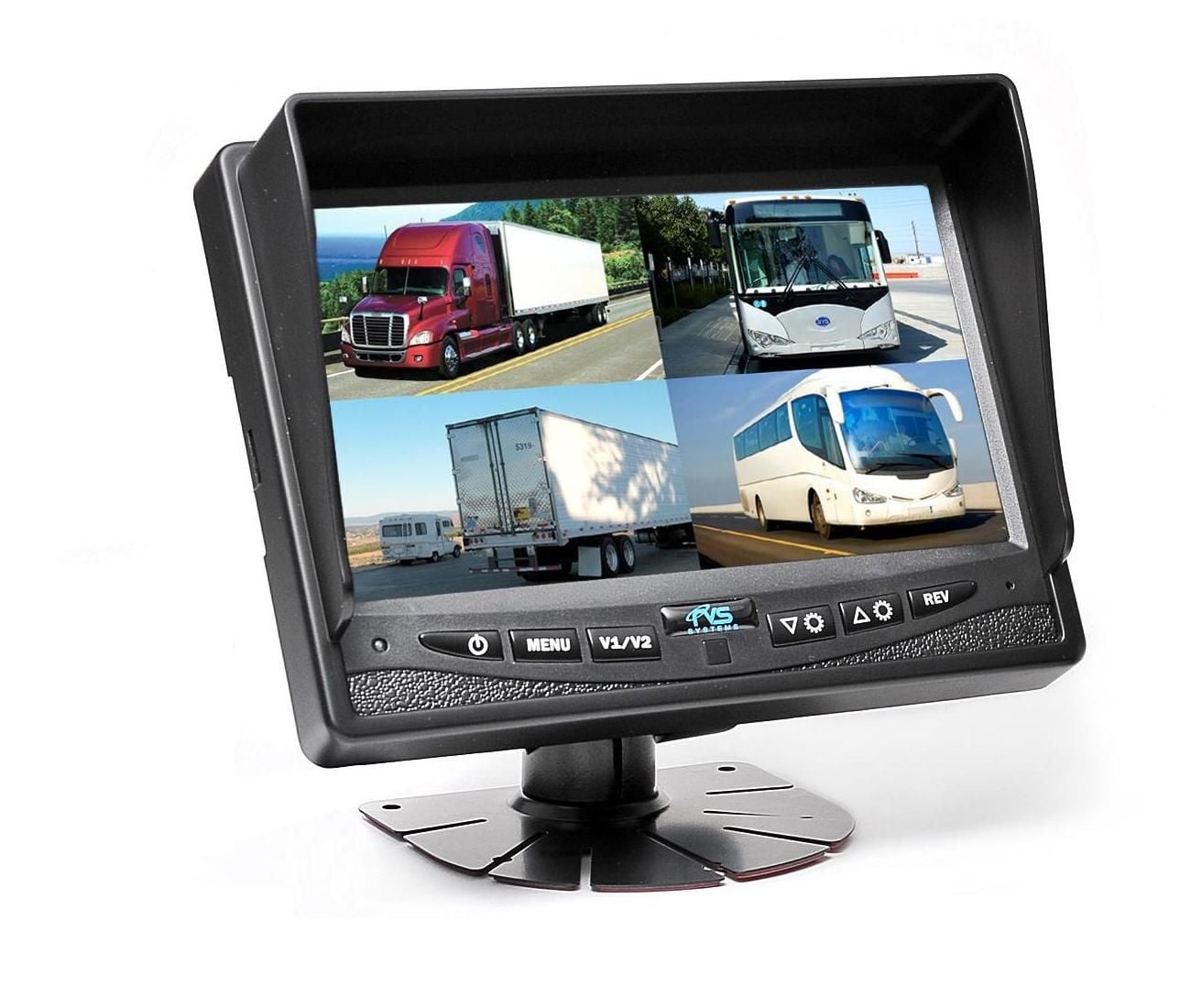

- 7" LED DIGITAL Quad View Color Display
- 3 Camera System - One Backup and Two Side Cameras
- Blind Spot/Pedestrian Detection Warning Systems
- Waterproof Cameras with Infra-Red Night Vision
- Built-in Mic and Speakers for Audio
Speak to an expert
The RVS-616VDI from RVS is a 620/420 TVL Virtual Spotter System, 2.5/2.1mm Lens. Newly released Virtual Spotter Series integrates blind spot viewing and pedestrian detection warning for a complete system. This powerful new solution combines two impressive technologies into a single operating platform for maximum protection against accidents due to blind spots. Strategically placed cameras are utilized to provide a full view of both the rear and sides of the vehicle which are displayed from a video monitor mounted to the dash or windshield. To further enhance your protection, sonar sensors with Voice Distance Indication are installed in the rear.
RVS RVS-616VDI Camera Features
- 7" LED DIGITAL Quad View Color Display: Provides a clear view, allowing drivers to easily monitor the surroundings and make informed decisions while reversing or changing lanes.
- 3 Camera System: Includes one backup and two side cameras, ensuring comprehensive visibility around the vehicle, enhancing safety during maneuvers.
- Blind Spot/Pedestrian Detection Warning Systems: Alerts the driver to potential hazards in blind spots or nearby pedestrians, significantly reducing the risk of accidents.
- Waterproof Cameras with Infra-Red Night Vision: Designed to perform in various weather conditions and provide clear images even in low light, enhancing reliability and safety.
- Built-in Mic and Speakers for Audio: Facilitates communication or alerts through audio, improving situational awareness while driving.
RVS RVS-616VDI Detailed Camera Specifications
| Feature | Details |
|---|---|
| Camera Resolution | 620/420 TVL |
| Lens Type | 2.5/2.1mm |
| Display Size | 7 inches |
| Camera System | 3 Camera System (1 Backup, 2 Side) |
| Indicators | Blind Spot/Pedestrian Detection |
| Water Resistance | Waterproof |
| Night Vision | Infra-Red |
| Audio Features | Built-in Mic and Speakers |
SKU  | RVS-616VDI |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 620 TVL |
| Sensor Option | 1/4" CCD |
| Lens Type | Fixed |
| Lens Size | 2.1mm, 2.5mm |
| Infrared Distance | 0~60 Feet |
| Durability | Weather Resistant |
| Mount Type | Ceiling, Wall |
| Electronic Shutter | 1/50, 160-1/100,000sec |
| Gamma Correction | r=0.45 to 1.0 |
| Image Device | 1/4" , 1/3" Sharp Color CCD |
| Image Pixels Total | 410,000 pixels , 250,000 pixels |
| IR Distance | 15.24m/50ft , 9.14m/30ft |
| Minimum Scene Illumination | 0 Lux (IR On) |
| Operating Humidity | RH 95% Max |
| Operating Temperature | -40°C - 70°C , -40°C ~ +80°C |
| Dimensions (W x H) | Backup Camera: (with bracket) 3.25" (H) x 3" (L) x 1.5" (D) , Side Camera: 1.85" (H) x 2.5" (L) x 3" (D) |
| S/N Ratio | More Than 48db |
| Signal System | NTSC / PAL |
| Video Output | 1Vp-p 75 Ω |
| Weatherproof | IP69K |
| Synchronization | Internal Synchronization |
| Angle of View | 130° , 120° |
| IR LEDs | 18 , 9 |
| Audio | Yes |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Auto Gain Control | Yes |
