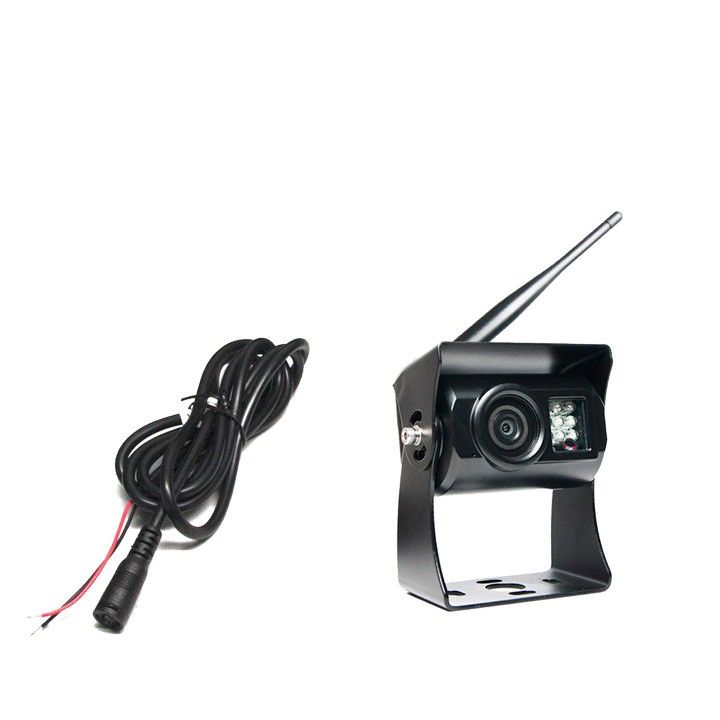

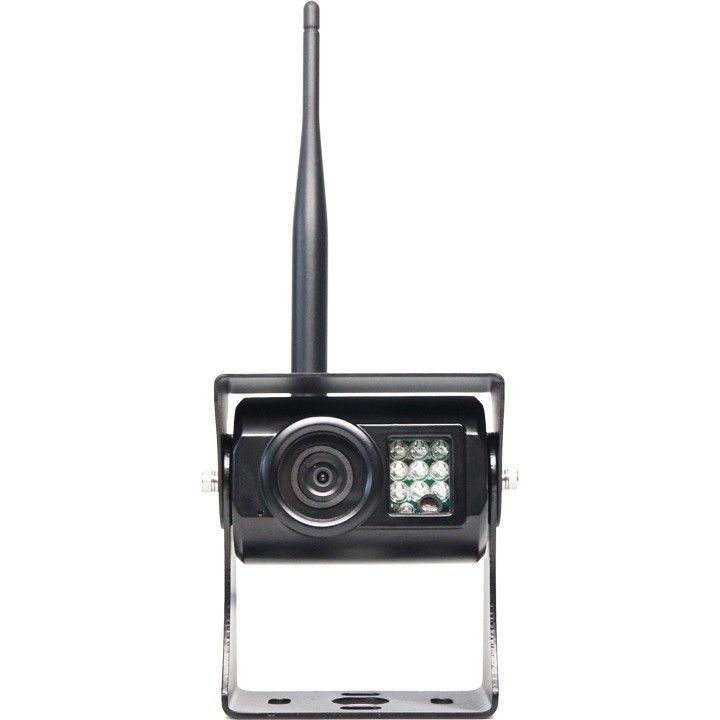

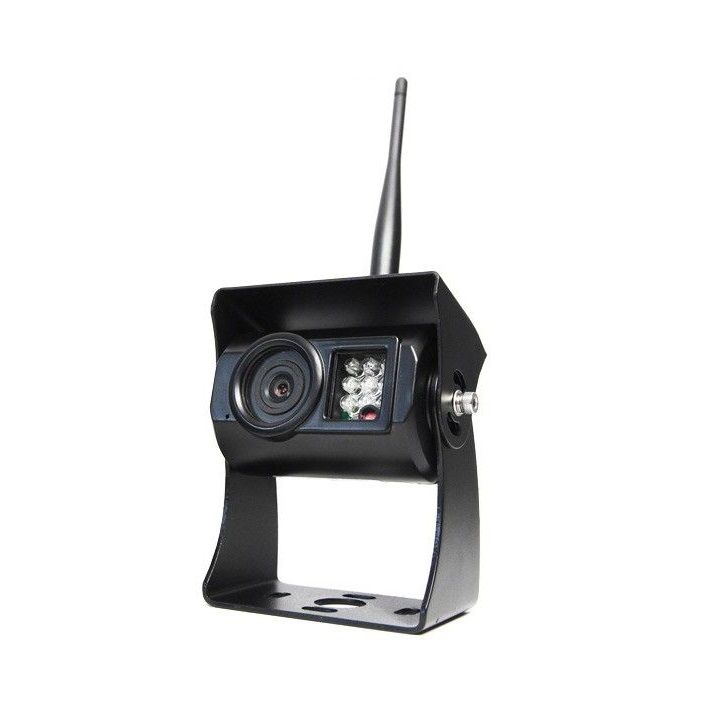

RVS Systems RVS-50W Simplesight™ 130° Wireless Backup Camera With 9 Infra-red Illuminators, 2.1mm
SKU
RVS-50W
Model No
RVS-50W
$445.19
Product Highlights
- Wireless Camera for the RVS-355W system
- Guaranteed transmission of 100 ft. even at highway speeds!
- Waterproof Backup Camera with Infra-Red Night Vision
- Pair with a compatible monitor without leaving your cab
Speak to an expert
Introducing the RVS Systems RVS-50W Simplesight™ 130° Wireless Backup Camera, engineered for hassle-free installation and exceptional performance. With its state-of-the-art wireless transmission technology, this camera provides a reliable 100' range, ensuring safety and visibility even while driving at highway speeds. The convenient "Instant Pair" feature allows quick connection to the monitor, making it an ideal choice for seamless use.
RVS Systems RVS-50W Camera Features
- Wireless Transmission: Enjoy a guaranteed 100' digital wireless range, ensuring reliable video feed without cables. Perfect for maintaining clarity and safety while driving.
- Waterproof Design: Built to withstand tough conditions, this camera is waterproof, providing durability and longevity for all-weather performance.
- Infra-Red Night Vision: Equipped with 9 infrared illuminators, this camera allows for excellent night vision, enhancing visibility in low light situations.
- Instant Pairing: Connect the wireless camera to the compatible monitor effortlessly with just the push of a button, making setup quick and easy.
RVS Systems RVS-50W Detailed Specifications
| Camera Type | Wireless Backup Camera |
| Viewing Angle | 130° |
| Wireless Range | Up to 100 ft |
| Night Vision | 9 Infra-Red Illuminators |
| Compatibility | Works with RVS-35WM Monitor (sold separately) |
| Waterproof Rating | IP67 |
SKU  | RVS-50W |
|---|---|
| Features | Auto Gain Control |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 540 TVL |
| Sensor Option | 1/4" CCD |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Infrared Distance | 0~60 Feet |
| Durability | Weather Resistant |
| Voltage | 12vDC |
| Electronic Shutter | 1/50, 160-1/100,000sec |
| Gamma Correction | r=0.45 to 1.0 |
| Image Device | 1/4" Sharp® Color CCD |
| IR Distance | 15.24m/50ft |
| Minimum Scene Illumination | 0 Lux (IR On) |
| Operating Humidity | -30°C ~ +80°C |
| Operating Temperature | RH 95% Max |

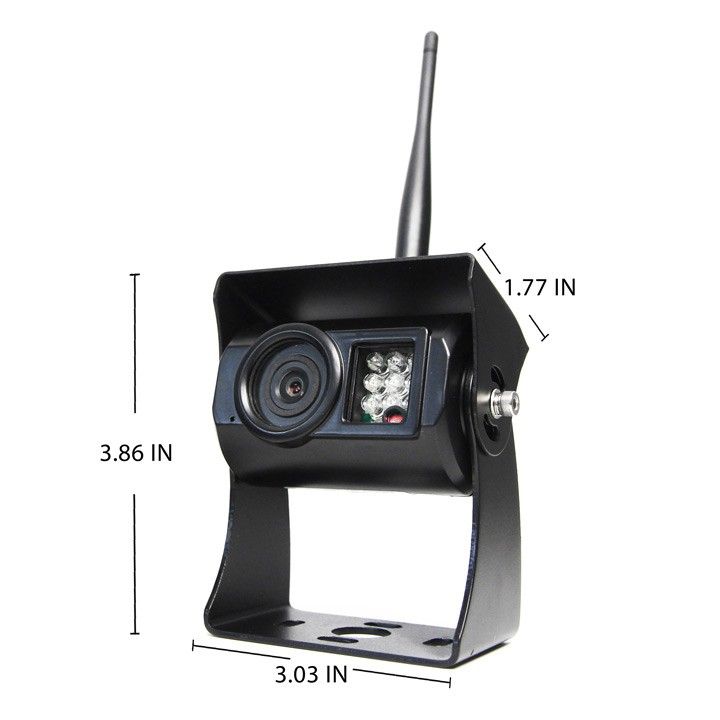

| Dimensions (W x H) | (with bracket) 3.8" (H) x 3" (L) x 1.7" (D) |
| S/N Ratio | More than 48dB |
| Signal System | PAL / NTSC |
| Video Output | 1Vp.p 75ohm |
| Weatherproof | IP69K |
| Synchronization | Internal Synchronization |
| Angle of View | 130° |
| IR LEDs | 9 |
| Auto Gain Control | Yes |
