RVS RVS-360-MO Systems Inview 360° HD Quick-Install System Car Dash Camera
SKU
RVS-360-MO
Model No
RVS-360-MO
$1,829.13
Product Highlights
- The most compact of our inView 360° series
- 4 cameras provide seamlessly-stitched full & nbsp perimeter Bird's-Eye View
- 1-minute auto-calibration dramatically cuts down setup time by 40%
- Integrates with proximity sensors

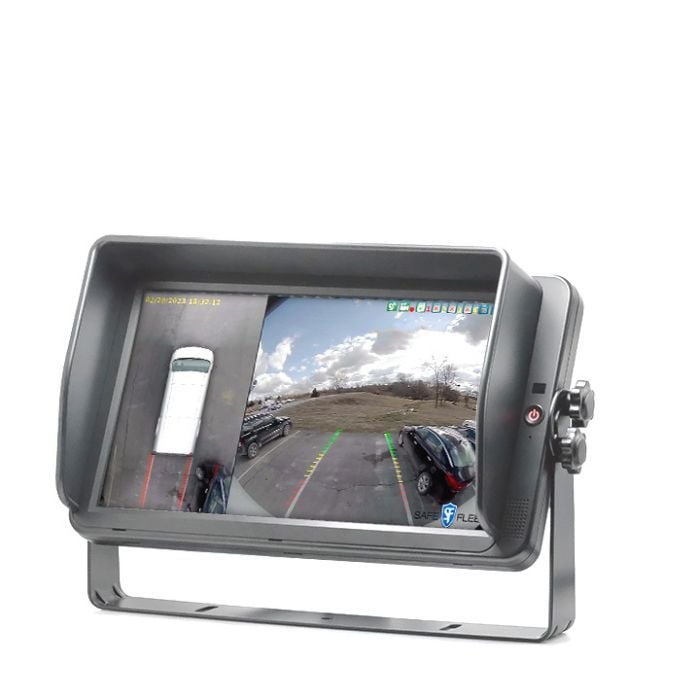

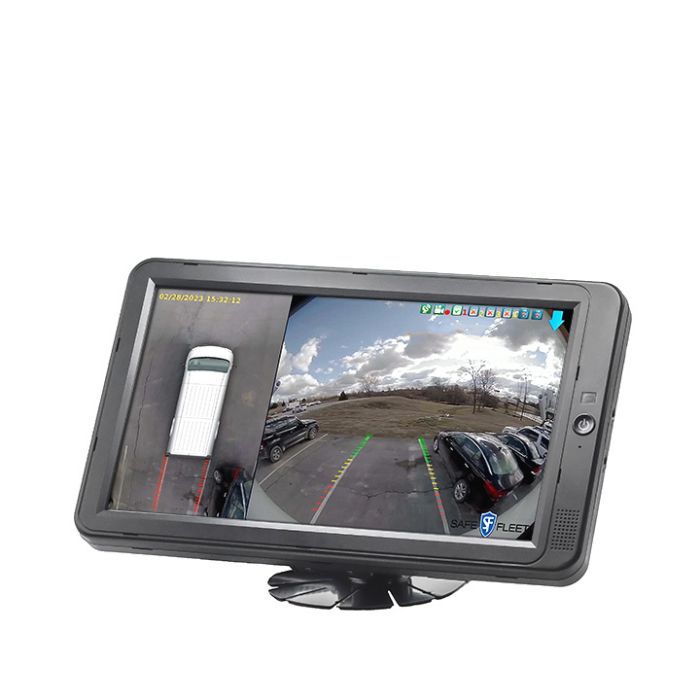

- 720P video output via 7" or 10" HD monitor
Speak to an expert
The RVS RVS-360-MO Systems Inview 360° HD Quick-Install System is the latest innovation in vehicle safety technology. Featuring a compact design and an effortless installation process, this system enhances your vehicle’s visibility with stunning 720P HD video quality. With its seamless auto-calibration, the RVS-360-MO dramatically reduces setup time, allowing you to focus on the road ahead. Experience an all-around view with four HD cameras and advanced image processing to ensure maximum safety and awareness on the road.
RVS RVS-360-MO Camera Features
- Compact Design: The most compact of our inView 360° series, enabling easy installation in various vehicle types.
- Seamless Bird's-Eye View: Four cameras provide a seamlessly-stitched full perimeter view, enhancing safety during maneuvers.
- Quick Auto-Calibration: A 1-minute auto-calibration dramatically cuts down setup time by 40%, getting you on the road faster.
- Proximity Sensor Integration: Easily integrates with additional sensors for enhanced situational awareness.
- HD Video Output: Outputs 720P video via 7" or 10" HD monitors for clear visuals.
- Automatic Trigger Switch: Automatically switches images based on driving direction (reverse/left/right) for intuitive use.
- Customizable On-Screen Overlay: Allows adjustments for outrigger vehicles, tailoring the experience to your specific needs.
- High-Definition Cameras: Features 4 x 190° FHD 1080P wide-angle fish-eye cameras for comprehensive coverage (<170° horizontal viewing angles).
- Powerful Processing: ARM Cortex-A53 4.5GHz Quad-core processor with H.264 video compression for efficient performance.
- Versatile Frame Rates: Supports 720P/30 fps or 720P/25 fps for smooth video playback.
- HD Output: Ensures all video captured is of high definition for detailed viewing.
- Optional GPS: Functionality can be expanded with optional GPS features for tracking and navigation.
- Adjustable Overlap Angles: Customize the angle settings of the four overlapping areas for optimal coverage and perspective.
- Enhanced Reversing Function: New reversing track function added for better maneuvering assistance.
RVS RVS-360-MO Detailed Specifications
| Feature | Details |
| Product Model | RVS-360-MO |
| Video Resolution | 720P (30 fps or 25 fps) |
| Camera Types | 4 x FHD 1080P wide-angle fisheye cameras |
| Camera Angles | 190° FOV, <170° horizontal viewing angle |
| Processor | ARM Cortex-A53 4.5GHz Quad-core |
| Compression Type | H.264 Video Compression |
| Auto Calibration Time | 1 minute |
| Monitor Compatibility | 7" or 10" HD monitors |
| Integration Options | Proximity sensors and optional GPS |
| Trigger Functionality | Automatic switching for reverse/left/right |
| Customization Options | On-screen overlays and adjustable camera angles |
| Reversing Feature | Reversing track function included |
SKU  | RVS-360-MO |
|---|---|
| Features | Auto Gain Control, GPS |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Sensor Option | 1/2.9" CMOS |
| Voltage | 12vDC |
| Operating Humidity | Less than 95% RH |
| Operating Temperature | –40° C to +85° C |
| Dimensions (W x H) | 52 x 42 x 40 mm; 2.0 x 1.7 x 1.6 in (approximate) |
| S/N Ratio | >80dB |
| Video Output | 720P video output via 7" or 10" HD monitor |
| Weatherproof | IP69K |
| Angle of View | 130º (V) x 190º (H) |
| Auto Gain Control | Auto |
| GPS | Yes |
| Auto Gain Control | Yes |
