RVS Systems RVS-360-MO-10 Inview 360° HD Quick-Install System Car Dash Camera
SKU
RVS-360-MO-10
Model No
RVS-360-MO-10
$2,081.42
Product Highlights
- The most compact of our inView 360° series

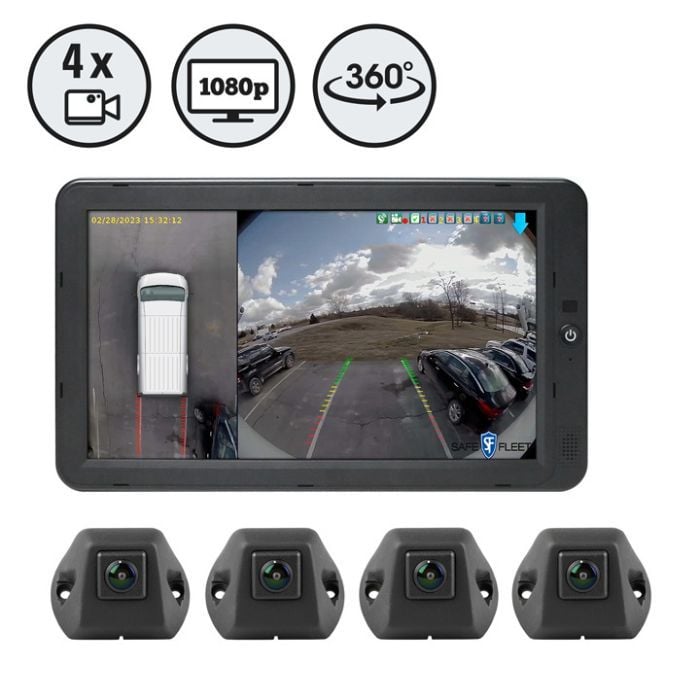

- 4 cameras provide seamlessly-stitched full & nbsp perimeter Bird's-Eye View
- 1-minute auto-calibration dramatically cuts down setup time by 40%

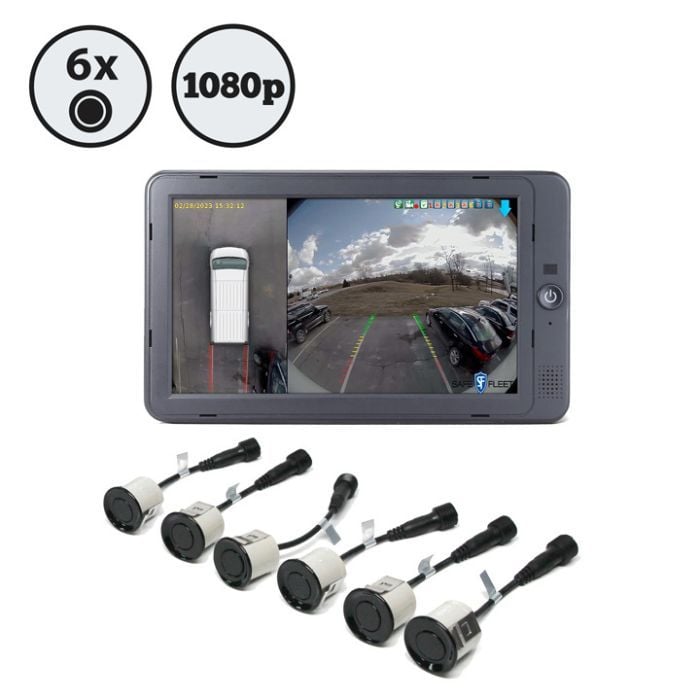

- Integrates with proximity sensors

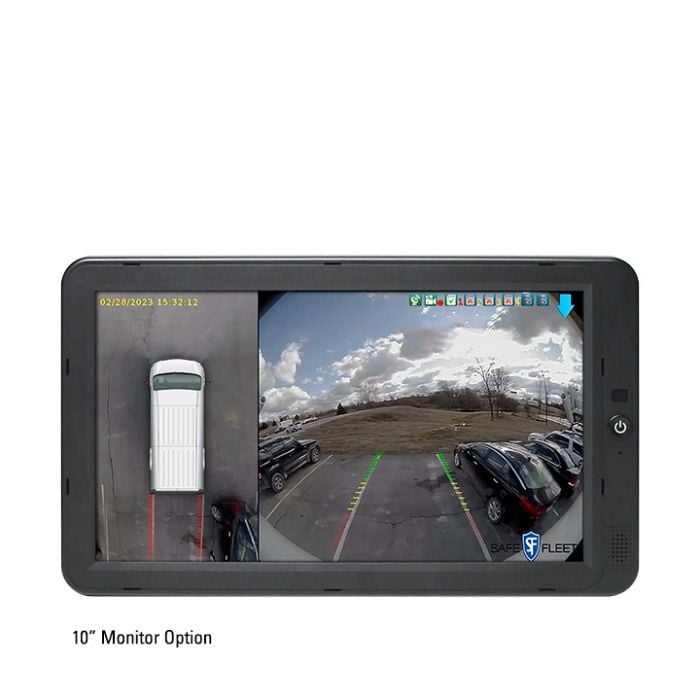

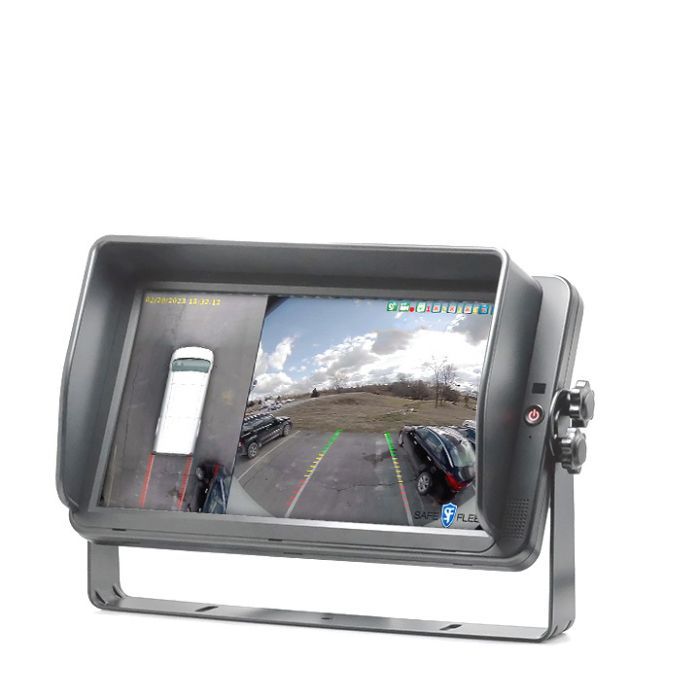

- 720P video output via 7" or 10" HD monitor
Speak to an expert
The RVS Systems RVS-360-MO-10 Inview 360° HD Quick-Install System Car Dash Camera offers a sleek design and advanced features that enhance vehicle safety and awareness. Its compact form allows for easy installation, while the four high-definition wide-angle cameras provide a comprehensive bird’s-eye view of your surroundings. The system reduces setup time significantly and delivers crystal-clear video, making it an essential addition to any vehicle.
RVS Systems RVS-360-MO-10 Camera Features
- Compact Design: The most compact of our InView 360° series, fitting seamlessly into a variety of vehicle types.
- Comprehensive Coverage: Four cameras provide a seamlessly-stitched full perimeter Bird's-Eye View, enhancing visibility and safety.
- Quick Installation: 1-minute auto-calibration dramatically cuts down setup time by up to 40%, allowing for quicker deployments.
- Proximity Sensor Integration: Integrates with proximity sensors for additional safety features.
- High-Quality Video Output: 720P video output via 7" or 10" HD monitor for clear visual information.
- Automatic Trigger Switch: Automatically switches images to corresponding directions (reverse/left/right) for effortless operation.
- Customizable Overlay: Customizable on-screen overlay for outrigger vehicles, enhancing its usability for larger vehicles.
- Wide-Angle Cameras: 4 x 190° FHD 1080P wide-angle fish-eye cameras (<170° horizontal viewing angles) capturing more of the environment.
- Powerful Processing: ARM Cortex-A53 4.5GHz Quad-core processor and H.264 video compression for high-performance video processing.
- Video Frame Rates: Offers 720P/30 fps or 720P/25 fps options, ensuring smooth video playback.
- HD Output: High-definition output ensures quality images and video.
- Optional GPS: GPS integration enhances tracking capabilities (optional feature).
- Adjustable Angles: Adjustable angle of the four overlapping areas allows customization according to user preference.
- Reversing Track Function: Newly added reversing track function improves maneuverability and parking accuracy.
RVS Systems RVS-360-MO-10 Detailed Specifications
| Feature | Details |
|---|---|
| Camera Type | 4 x 190° FHD 1080P wide-angle cameras |
| Video Resolution | 720P at 30 fps or 25 fps |
| Auto Calibration | 1-minute procedure |
| Processor | ARM Cortex-A53 4.5GHz Quad-core |
| Sensor Integration | Compatible with proximity sensors |
| Output Display | Compatible with 7" or 10" HD monitors |
| Trigger Functionality | Auto-switching for reverse/left/right |
| GPS | Optional |
| Customization | Customizable on-screen overlays |
| Installation Time Savings | Reduces installation time by up to 40% |
| Reversing Tech | Includes reversing track function |
SKU  | RVS-360-MO-10 |
|---|---|
| Features | Auto Gain Control, GPS |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Sensor Option | 1/2.9" CMOS |
| Voltage | 12vDC |
| Operating Humidity | Less than 95% RH |
| Operating Temperature | –40° C to +85° C |
| Dimensions (W x H) | 52 x 42 x 40 mm; 2.0 x 1.7 x 1.6 in (approximate) |
| S/N Ratio | >80dB |
| Video Output | 720P video output via 7" or 10" HD monitor |
| Weatherproof | IP69K |
| Angle of View | 130º (V) x 190º (H) |
| Auto Gain Control | Auto |
| GPS | Yes |
| Auto Gain Control | Yes |
