RVS Systems RVS-355W-SC-03 540 TVL Wireless Backup Camera, Both Side Cameras, 7" Wireless Display, Suction Cup Mount
SKU
RVS-355W-SC-03
Model No
RVS-355W-SC-03
$577.10
Product Highlights
- 7" LED Digital Monitor with Suction Cup Mount
- Waterproof Backup Camera with Infra-Red Night Vision
- Two Wired inputs - Connect Up To Two Side Cameras
- Guaranteed transmission of 100ft Even At Highway Speeds!
- Instant Pair - Pair System Without Leaving Your Cab
Speak to an expert

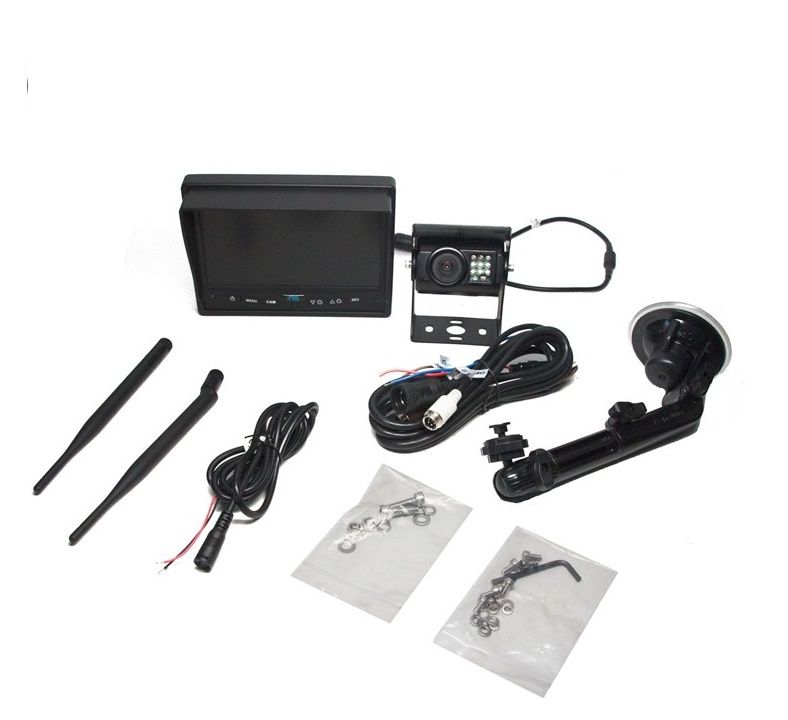

The RVS-355W-SC-03 from RVS Systems is perfect for truck and trailer applications. Two wired side cameras install easily to your truck and the backup camera is wireless to allow easy installation on your trailer. Part of our new SimpleSight series, the system is equipped with instant pair, allowing you to easily swap between trucks and trailers. Simply hit pair from the menu and turn on power for the trailer and the system will pair automatically. This system features optional adjustable distance grid lines. Cameras come with a 7" Wireless Display and Suction Cup Mount.
RVS Systems RVS-355W-SC-03 Camera Features

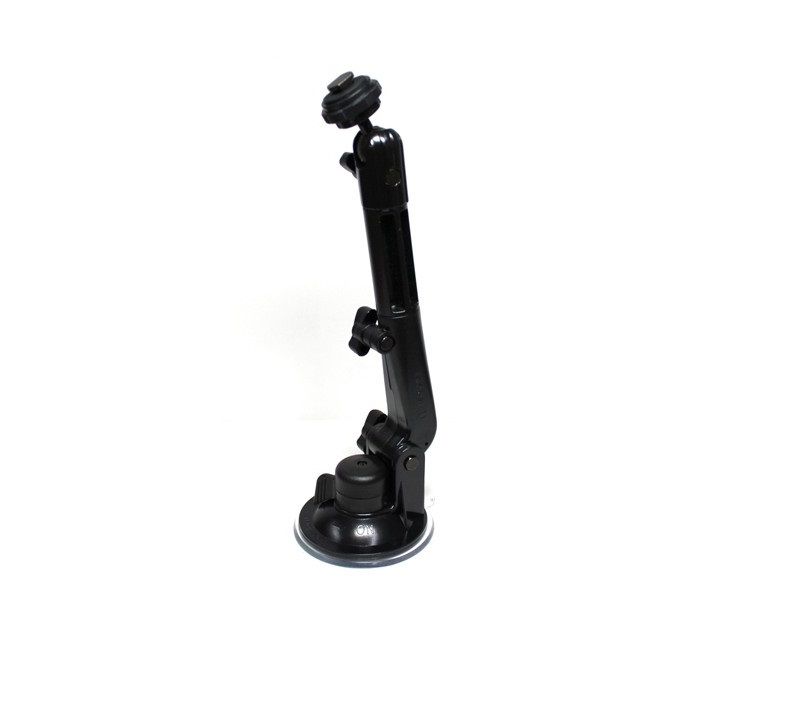

- 7" LED Digital Monitor: Provides a clear view with a suction cup mount for easy installation.

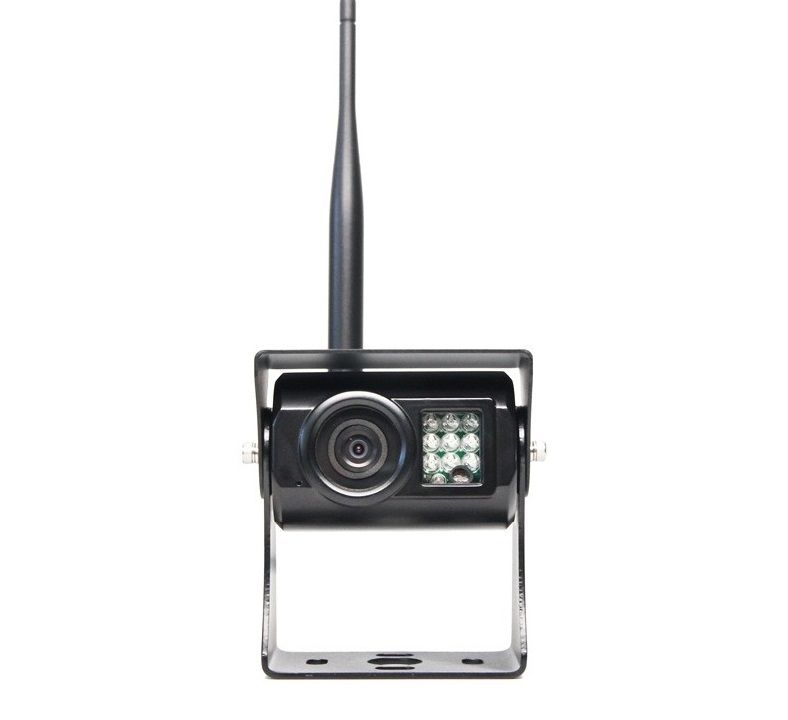

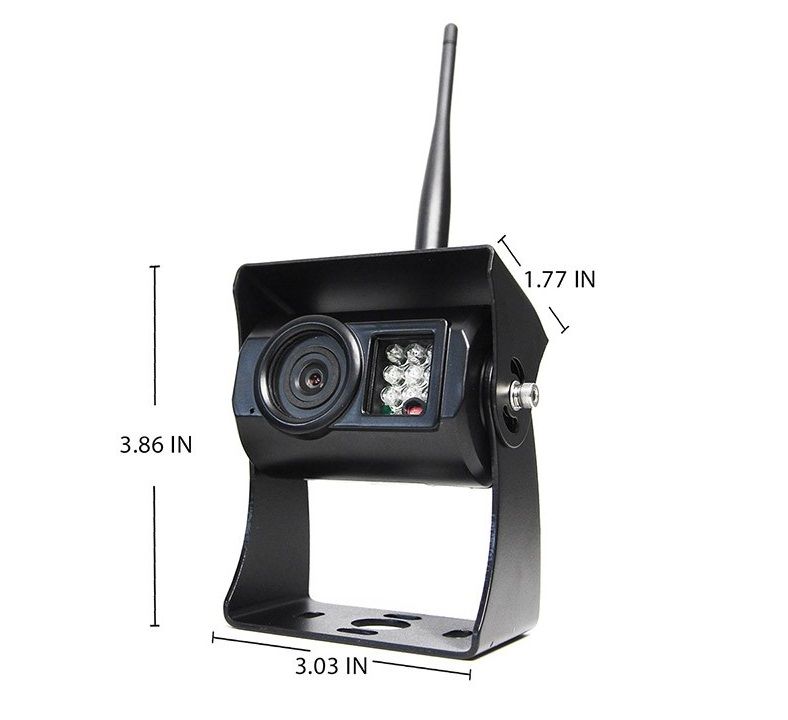

- Waterproof Backup Camera: Ensures durability and functionality in all weather conditions with infra-red night vision for low-light situations.

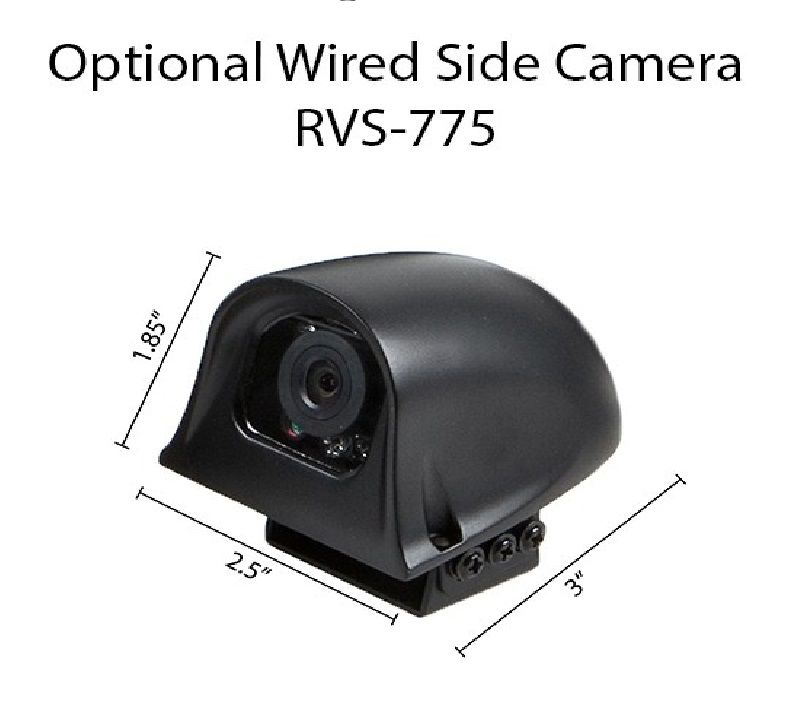

- Two Wired Inputs: Allows connection of up to two side cameras for enhanced visibility and safety.
- Guaranteed Transmission Range: Offers a reliable transmission distance of 100ft even at highway speeds, ensuring constant connectivity.
- Instant Pair Feature: Enables easy system pairing without leaving your control, enhancing usability during vehicle changes.
RVS Systems RVS-355W-SC-03 Detailed Specifications
| Product Type: | Wireless Backup Camera System |
| Camera Resolution: | 540 TV Lines |
| Monitor Size: | 7 inches |
| Camera Type: | Waterproof with Infra-Red Night Vision |
| Mount Type: | Suction Cup |
| Pairing Technology: | Instant Pair System |
| Transmission Distance: | Up to 100ft |
| Number of Cameras: | 1 Backup + 2 Side Cameras |
SKU  | RVS-355W-SC-03 |
|---|---|
| Features | Auto Gain Control, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 540 TVL |
| Sensor Option | 1/4" CCD |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Infrared Distance | 0~60 Feet |
| Durability | Weather Resistant |
| Gamma Correction | R=0.45 TO 1.0 |
| Image Device | 1/4" SHARP COLOR CCD |
| IR Distance | Wireless Backup Camera: 15.24m / 50ft, Side Camera: 9.14m / 30ft |
| Minimum Scene Illumination | 0 Lux (IR ON) |
| Operating Humidity | RH 95% |
| Operating Temperature | Wireless Backup Camera:-30°C~+80°C, Side Camera: -40°C~+80°C |
| S/N Ratio | More than 48dB |
| Signal System | NTSC / PAL |
| Video Output | 1Vp.p 75 ohm |
| Weatherproof | IP69K |
| Synchronization | INTERNAL SYNCHRONIZATION |
| Angle of View | Wireless Backup Camera: 130°, Side Camera: 120° |
| IR LEDs | 9 LED |
| Auto Gain Control | Yes |
