RVS Systems RVS-355W-A-04 540 TVL Wireless Backup Camera, 7" Wireless Display, Adhesive Mount
SKU
RVS-355W-A-04
Model No
RVS-355W-A-04
$402.79
Product Highlights

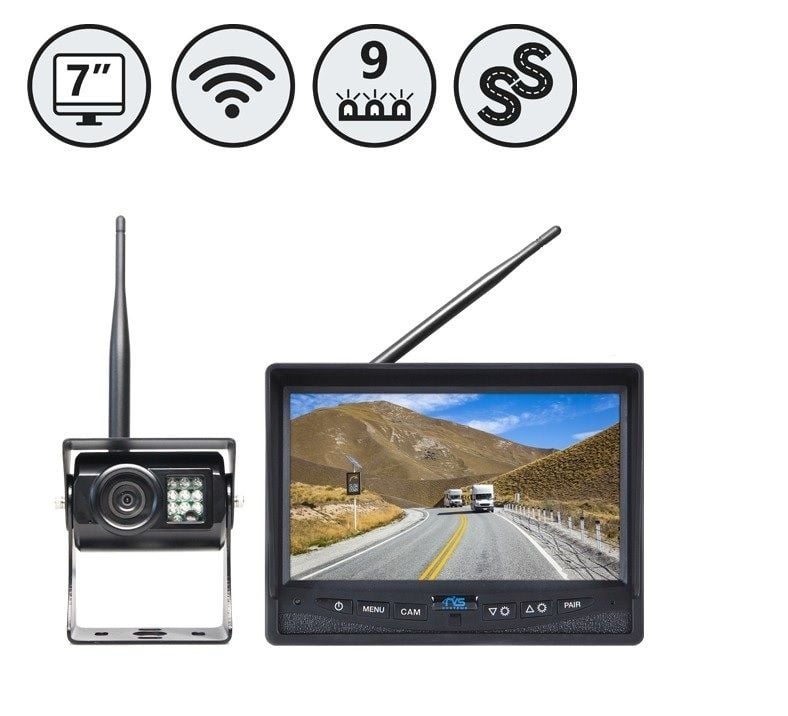

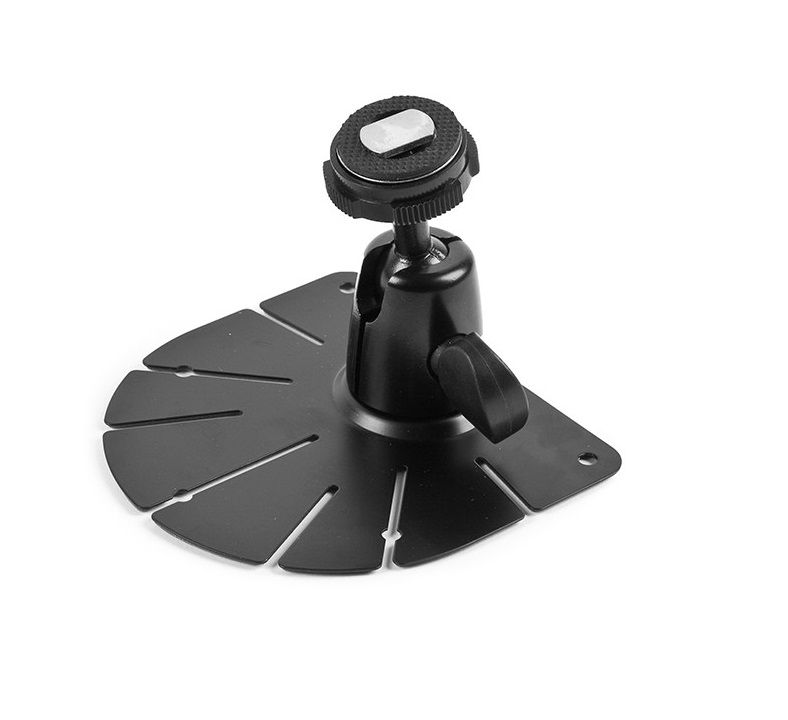

- 7" LED Digital Monitor with Adhesive Mount

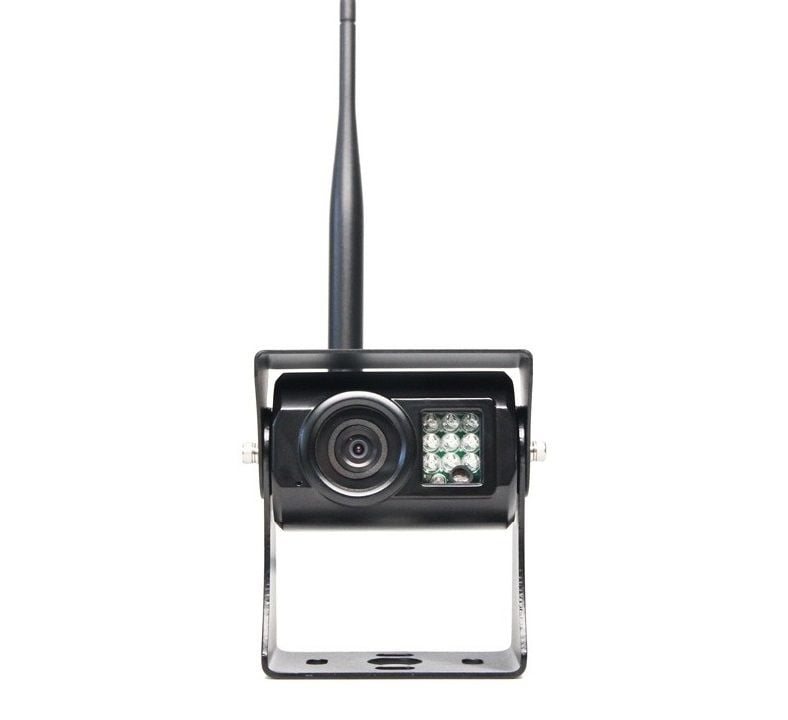

- Waterproof Backup Camera with Infra-Red Night Vision
- Two Wired inputs - Connect Up To Two Side Cameras
- Guaranteed transmission of 100ft Even At Highway Speeds!
- Instant Pair - Pair System Without Leaving Your Cab
Speak to an expert

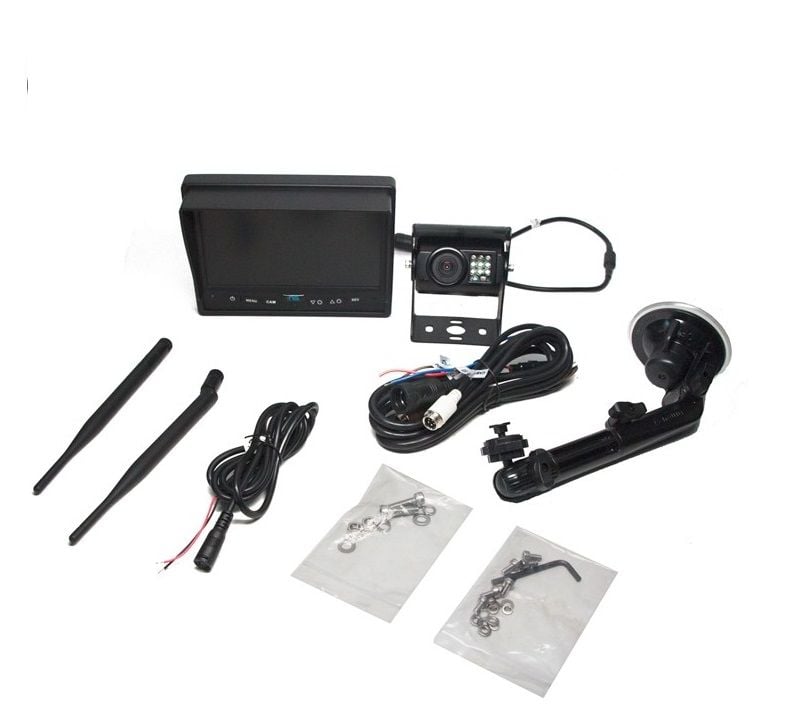

The RVS-355W-A-04 from RVS Systems is perfect for truck and trailer applications. Two wired side cameras install easily to your truck and the backup camera is wireless to allow easy installation on your trailer. Part of our new SimpleSight series, the system is equipped with instant pair, allowing you to easily swap between trucks and trailers. Simply hit pair from the menu and turn on power for the trailer and the system will pair automatically. This system features optional adjustable distance grid lines. Cameras come with a 7" Wireless Display and Adhesive Mount.
RVS Systems RVS-355W-A-04 Camera Features
- 7" LED Digital Monitor: Offers clear visibility for safe reversing and maneuvering.
- Waterproof Backup Camera: Ensures durability and reliable performance in various weather conditions.
- Two Wired Inputs: Connect up to two side cameras for enhanced safety and visibility.
- Guaranteed Transmission: Reliable video feed up to 100ft, even at highway speeds!
- Instant Pair: Easily connect the system without leaving your cab, saving time and effort.
RVS Systems RVS-355W-A-04 Detailed Specifications
| Display Size | 7 inches |
| Camera Resolution | 540 TVL |
| Camera Type | Wireless Backup Camera |
| Display Type | LED Digital Monitor |
| Waterproof Rating | IP67 |
| Night Vision | Infra-Red |
| Connection Capability | Connects up to two side cameras |
| Transmission Range | Up to 100ft |
SKU  | RVS-355W-A-04 |
|---|---|
| Features | Auto Gain Control, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 540 TVL |
| Sensor Option | 1/4" CCD |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Infrared Distance | 0~60 Feet |
| Durability | Weather Resistant |
| Gamma Correction | R=0.45 TO 1.0 |
| Image Device | 1/4" SHARP COLOR CCD |
| IR Distance | Wireless Backup Camera: 15.24m / 50ft, Side Camera: 9.14m / 30ft |
| Minimum Scene Illumination | 0 Lux (IR ON) |
| Operating Humidity | RH 95% |
| Operating Temperature | Wireless Backup Camera:-30°C~+80°C, Side Camera: -40°C~+80°C |
| S/N Ratio | More than 48dB |
| Signal System | NTSC / PAL |
| Video Output | 1Vp.p 75 ohm |
| Weatherproof | IP69K |
| Synchronization | INTERNAL SYNCHRONIZATION |
| Angle of View | Wireless Backup Camera: 130°, Side Camera: 120° |
| IR LEDs | 9 LED |
| Auto Gain Control | Yes |
