RVS Systems RVS-355W-A-03 540 TVL Wireless Backup Camera, Both Side Cameras, 7" Wireless Display, Adhesive Mount
SKU
RVS-355W-A-03
Model No
RVS-355W-A-03
$577.10
Product Highlights

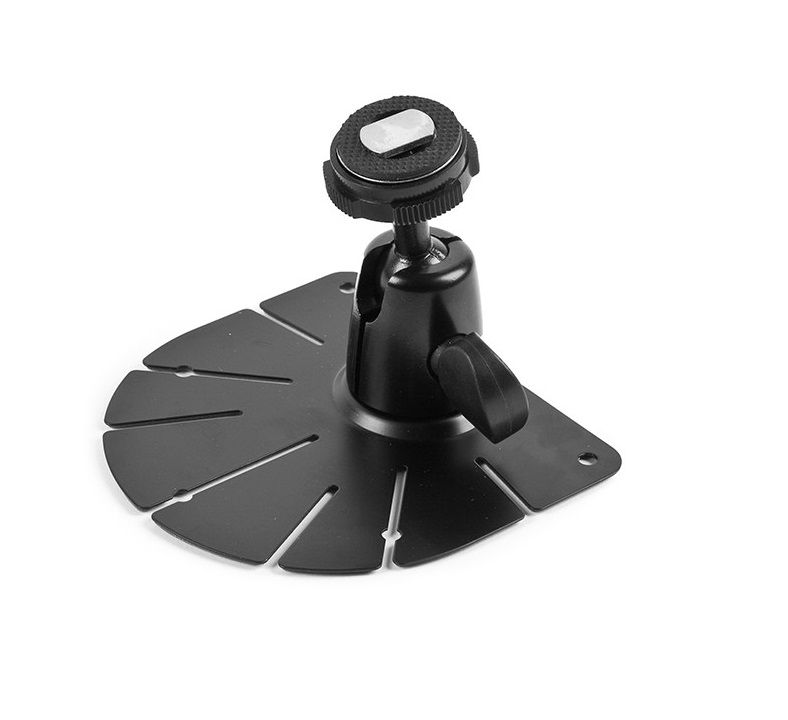

- 7" LED Digital Monitor with Adhesive Mount
- Waterproof Backup Camera with Infra-Red Night Vision
- Two Wired inputs - Connect Up To Two Side Cameras
- Guaranteed transmission of 100ft Even At Highway Speeds!
- Instant Pair - Pair System Without Leaving Your Cab
Speak to an expert

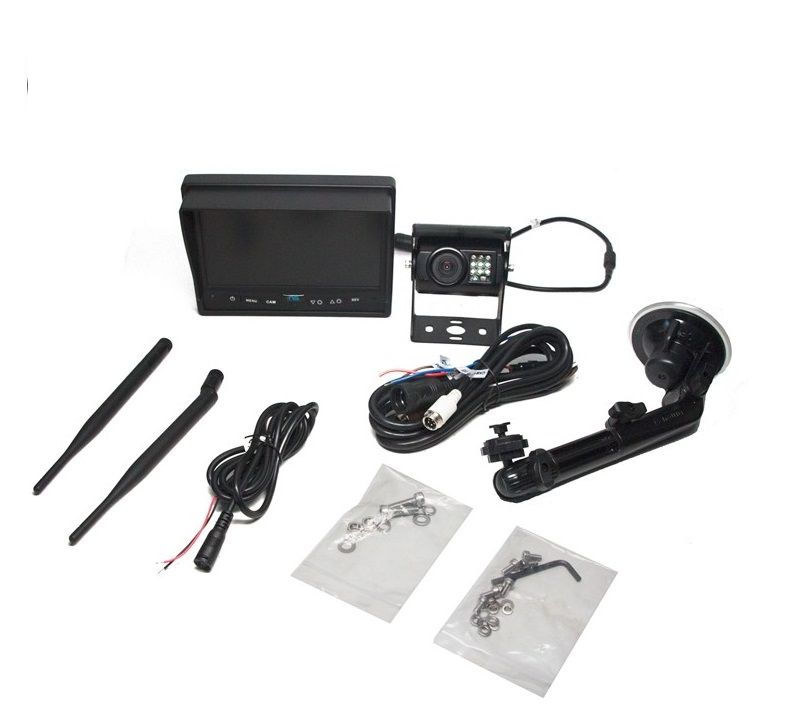

The RVS-355W-A-03 from RVS Systems is perfect for truck and trailer applications. Two wired side cameras install easily to your truck and the backup camera is wireless to allow easy installation on your trailer. Part of our new SimpleSight series, the system is equipped instant pair, allowing you to easily swap between trucks and trailers. Simply hit pair from the menu and turn on power for the trailer and the system will pair automatically. This system features optional adjustable distance grid lines. cameras comes with 7" Wireless Display, Adhesive Mount.
RVS Systems RVS-355W-A-03 Camera Features

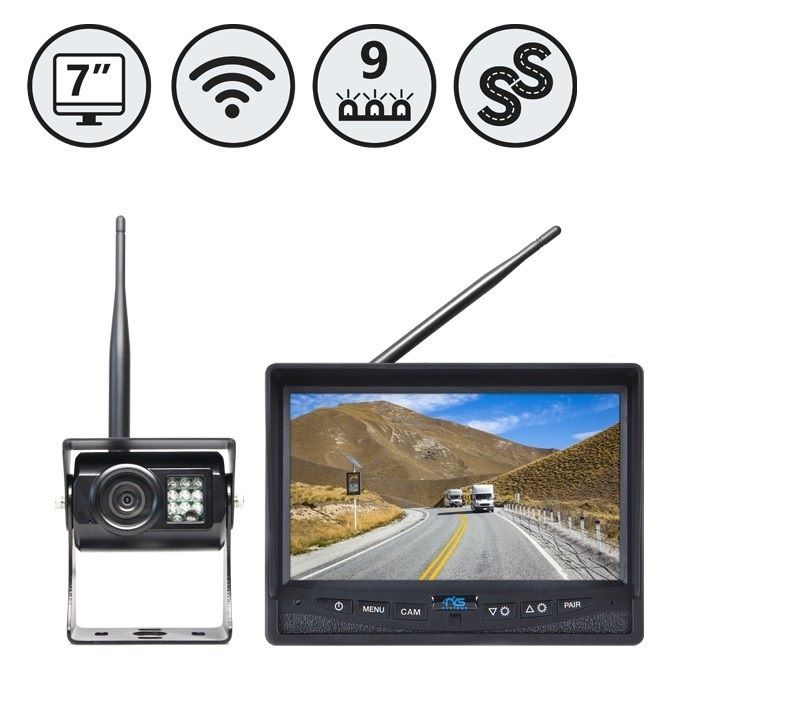

- 7" LED Digital Monitor: The large display provides clear visibility for safe reversing and maneuvering.

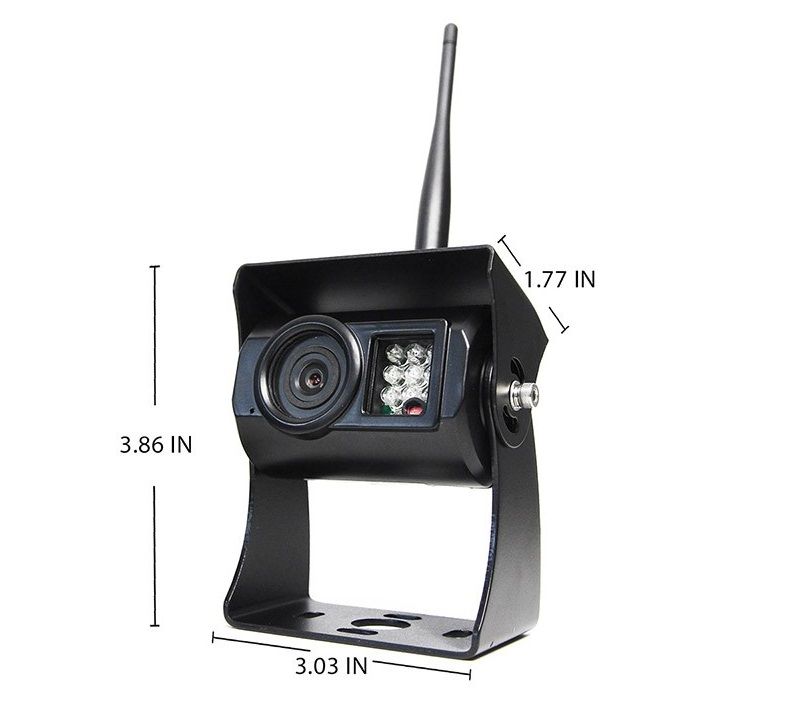

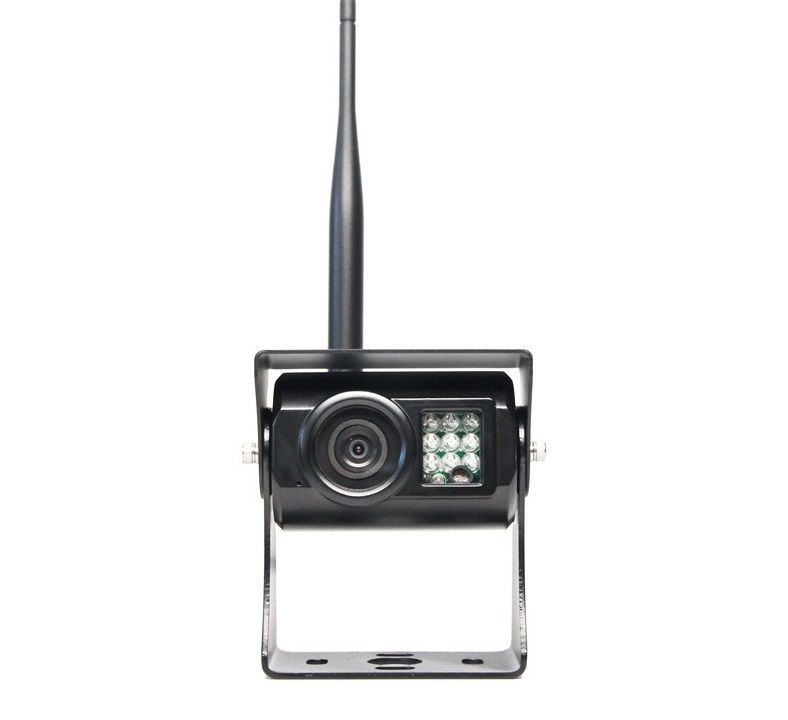

- Waterproof Backup Camera: With infrared night vision, this camera ensures you have a clear view even in low-light conditions.

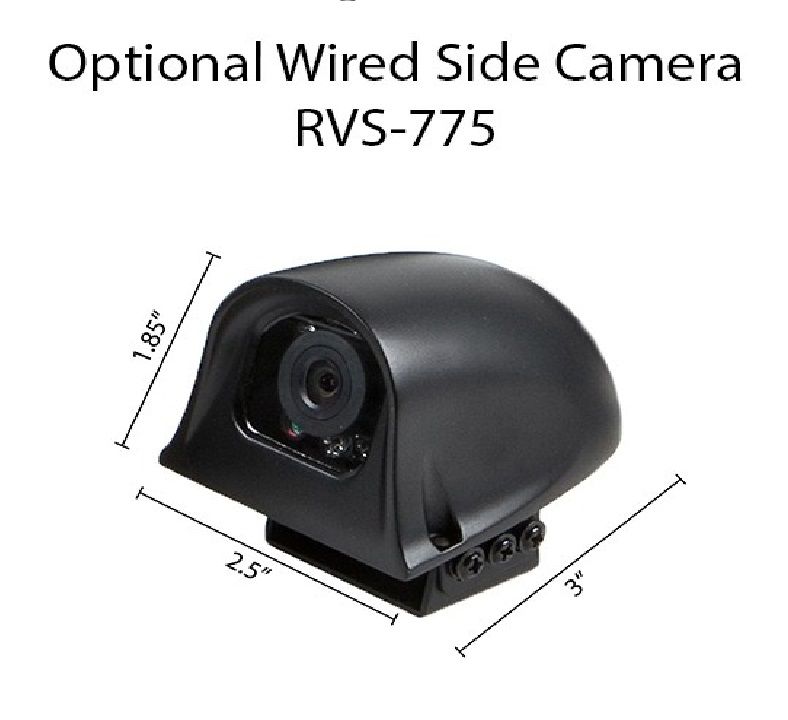

- Two Wired Inputs: Connect up to two side cameras for enhanced visibility and safety.
- Guaranteed Transmission: Reliable signal transmission of up to 100ft, even at highway speeds, ensuring uninterrupted monitoring.
- Instant Pair Feature: Easily pair the system without leaving your cab, allowing quick transitions between different vehicles.
RVS Systems RVS-355W-A-03 Detailed Specifications
| Feature | Detail |
| Camera Resolution | 540 TVL |
| Display Size | 7 inches |
| Camera Type | Wireless Backup Camera with Wired Side Cameras |
| Mount Type | Adhesive Mount |
| Night Vision | Infra-red |
| Water Resistance | Waterproof |
| Transmission Range | 100ft |
| Pairing Method | Instant Pair from Cab |
SKU  | RVS-355W-A-03 |
|---|---|
| Features | Auto Gain Control, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 540 TVL |
| Sensor Option | 1/4" CCD |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Infrared Distance | 0~60 Feet |
| Durability | Weather Resistant |
| Gamma Correction | R=0.45 TO 1.0 |
| Image Device | 1/4" SHARP COLOR CCD |
| IR Distance | Wireless Backup Camera: 15.24m / 50ft, Side Camera: 9.14m / 30ft |
| Minimum Scene Illumination | 0 Lux (IR ON) |
| Operating Humidity | RH 95% |
| Operating Temperature | Wireless Backup Camera:-30°C~+80°C, Side Camera: -40°C~+80°C |
| S/N Ratio | More than 48dB |
| Signal System | NTSC / PAL |
| Video Output | 1Vp.p 75 ohm |
| Weatherproof | IP69K |
| Synchronization | INTERNAL SYNCHRONIZATION |
| Angle of View | Wireless Backup Camera: 130°, Side Camera: 120° |
| IR LEDs | 9 LED |
| Auto Gain Control | Yes |
