RVS Systems RVS-355W-A-02 540 TVL Wireless Backup Camera, Left Side Camera, 7" Wireless Display, Adhesive Mount
SKU
RVS-355W-A-02
Model No
RVS-355W-A-02
$508.79
Product Highlights

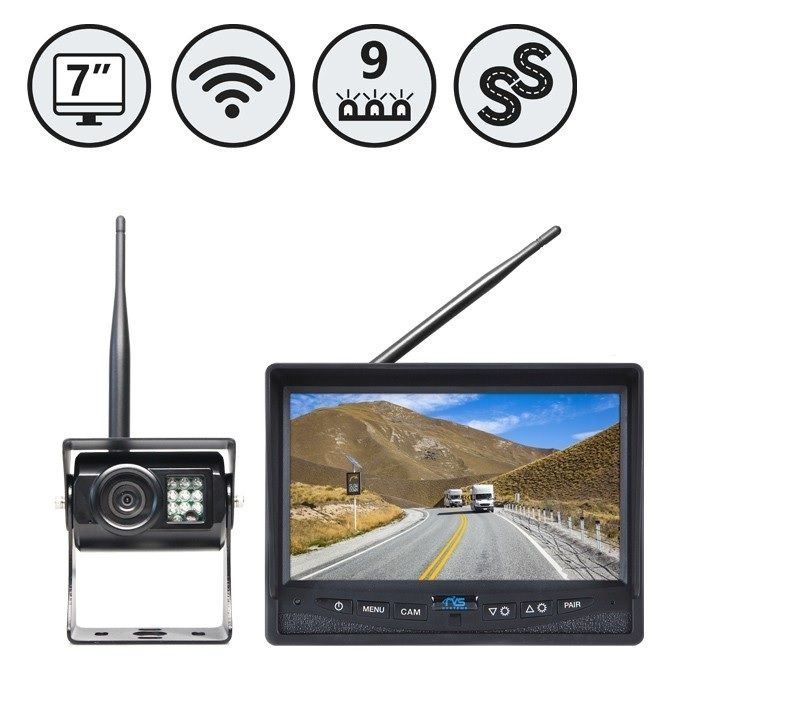

- 7" LED Digital Monitor with Adhesive Mount

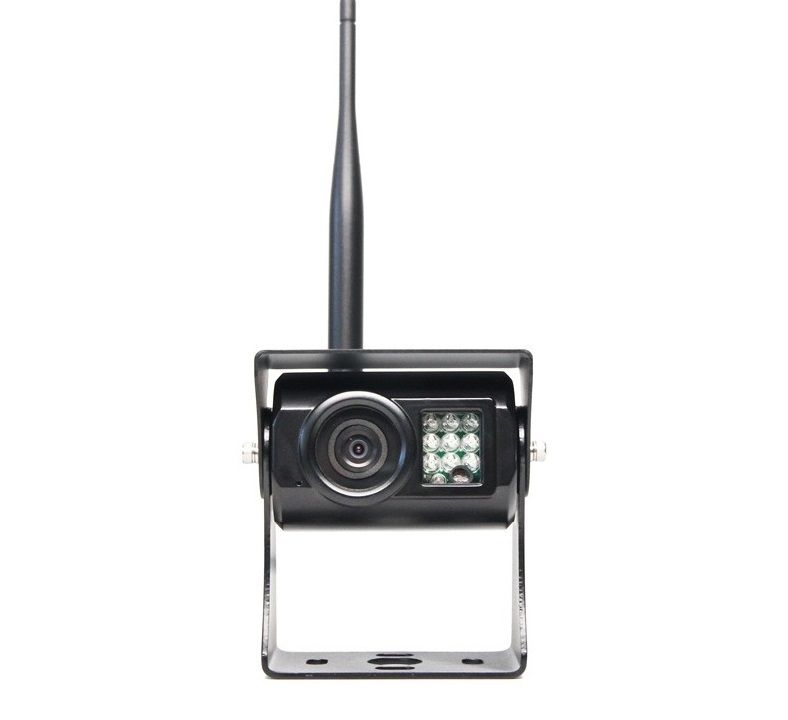

- Waterproof Backup Camera with Infra-Red Night Vision
- Two Wired inputs - Connect Up To Two Side Cameras
- Guaranteed transmission of 100ft Even At Highway Speeds!
- Instant Pair - Pair System Without Leaving Your Cab
Speak to an expert
The RVS-355W-A-02 from RVS Systems is perfect for truck and trailer applications. Two wired side cameras install easily to your truck and the backup camera is wireless to allow easy installation on your trailer. Part of our new SimpleSight series, the system is equipped with instant pair, allowing you to easily swap between trucks and trailers. Simply hit pair from the menu and turn on power for the trailer and the system will pair automatically. This system features optional adjustable distance grid lines. Cameras come with a 7" Wireless Display and Adhesive Mount.
RVS Systems RVS-355W-A-02 Camera Features
- 7" LED Digital Monitor: The large display ensures a clear view of your surroundings, significantly enhancing your safety while reversing.
- Waterproof Backup Camera: With an IP rating, this camera is built to withstand harsh weather conditions, ensuring longevity and reliable performance.

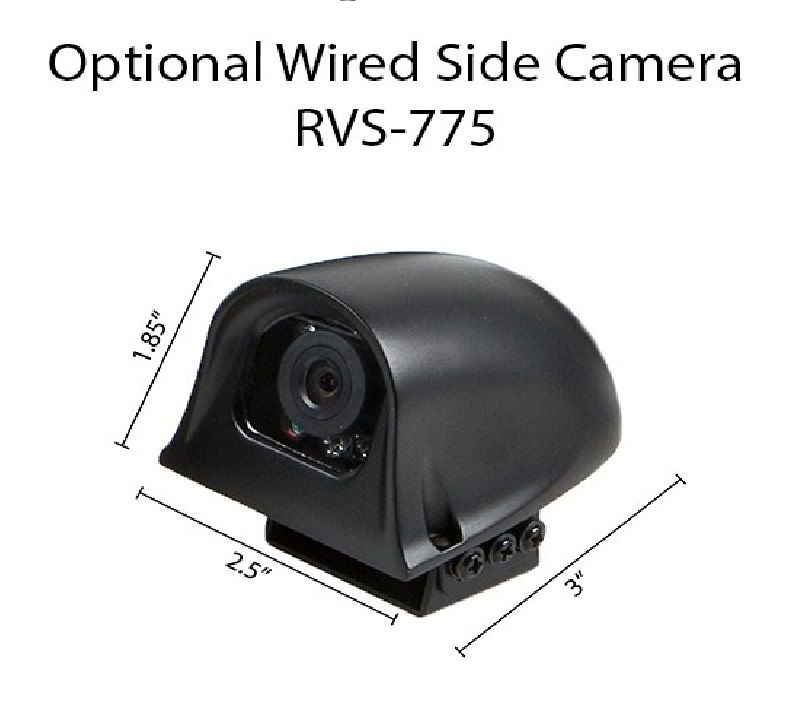

- Two Wired Inputs: Connect up to two side cameras for maximum visibility, allowing you to monitor all angles around your vehicle.
- Guaranteed 100ft Transmission: Enjoy uninterrupted video feed even at highway speeds, enhancing your operational efficiency.
- Instant Pair Technology: Easily switch between trucks and trailers without leaving your seat, saving you time and effort.
RVS Systems RVS-355W-A-02 Detailed Specifications
| Feature | Detail |
| Model | RVS-355W-A-02 |
| Camera Type | Wireless Backup Camera |
| Display Size | 7 inches |
| Monitor Type | LED Digital Monitor |
| Camera Resolution | 540 TVL |
| Night Vision | Infra-Red |
| Waterproof Rating | Yes |
| Range | Up to 100ft |

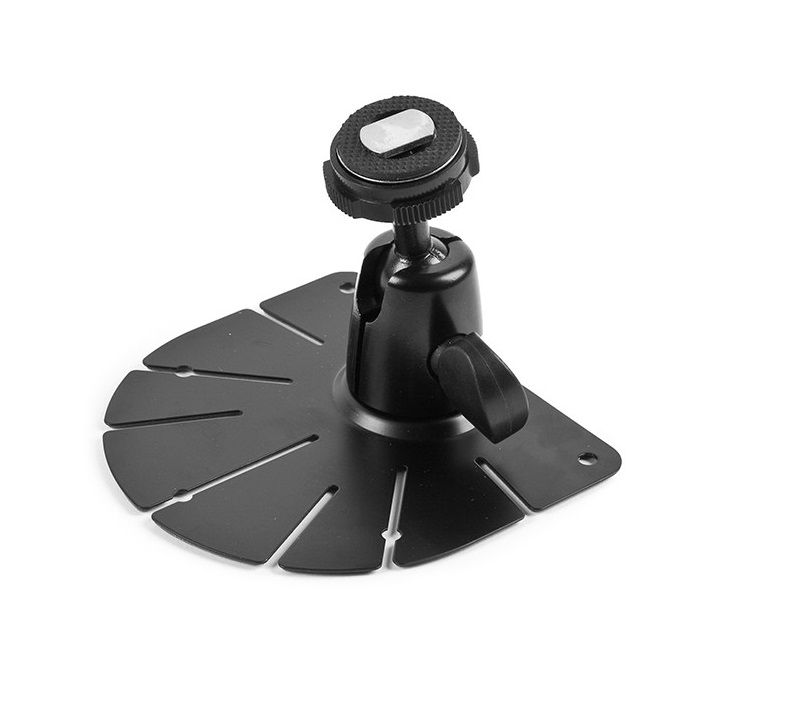

| Installation Type | Adhesive Mount |
| Additional Features | Two Wired Inputs, Instant Pair |
SKU  | RVS-355W-A-02 |
|---|---|
| Features | Auto Gain Control, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 540 TVL |
| Sensor Option | 1/4" CCD |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Infrared Distance | 0~60 Feet |
| Durability | Weather Resistant |
| Gamma Correction | R=0.45 TO 1.0 |
| Image Device | 1/4" SHARP COLOR CCD |
| IR Distance | Wireless Backup Camera: 15.24m / 50ft, Side Camera: 9.14m / 30ft |
| Minimum Scene Illumination | 0 Lux (IR ON) |
| Operating Humidity | RH 95% |
| Operating Temperature | Wireless Backup Camera:-30°C~+80°C, Side Camera: -40°C~+80°C |
| S/N Ratio | More than 48dB |
| Signal System | NTSC / PAL |
| Video Output | 1Vp.p 75 ohm |
| Weatherproof | IP69K |
| Synchronization | INTERNAL SYNCHRONIZATION |
| Angle of View | Wireless Backup Camera: 130°, Side Camera: 120° |
| IR LEDs | 9 LED |
| Auto Gain Control | Yes |
